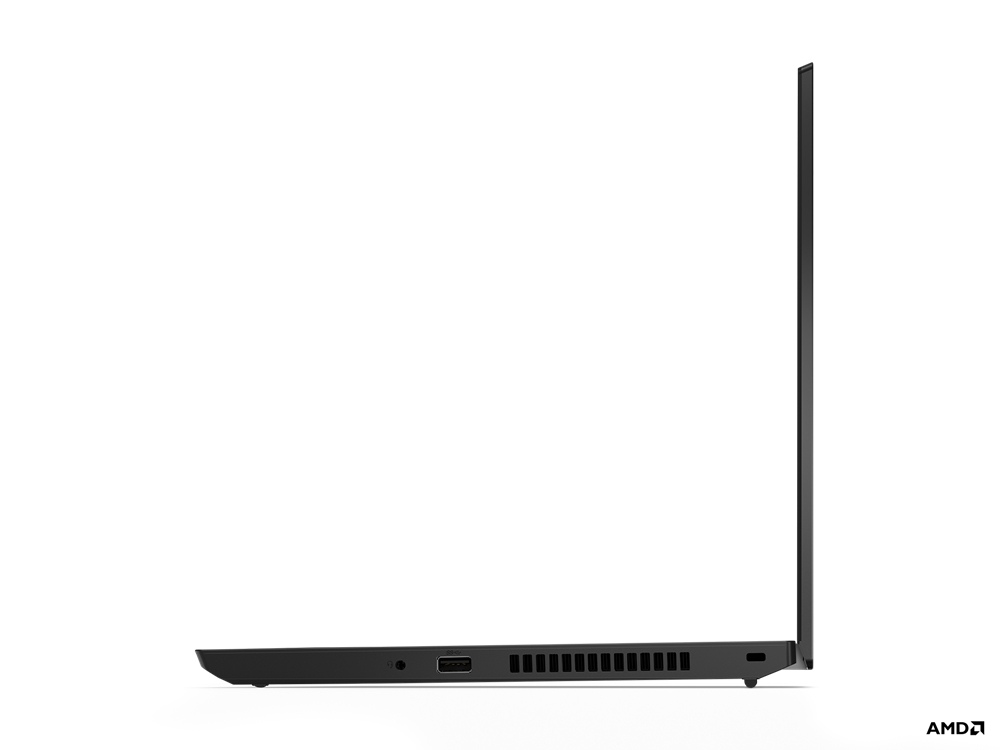

Lenovo L14 + USB-C Dock G2(40AS0090AU)

L14 + USB-C Dock G2(40AS0090AU)

Model L14 + USB-C Dock G2(40AS0090AU)Part no. 20U5000GAU-USBCDOCK

102 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 5 PRO
Memory8 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 5 PRO
Memory: 8 GB
Storage: 512 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: L14 + USB-C Dock G2(40AS0090AU)
Part numbers: 20U5000GAU-USBCDOCK, 20U5000EAU-USBCDOCK, 20U5000HAU-USBCDOCK, 20U5000FAU-USBCDOCK, 20U5000DAU-USBCDOCK, 20U5000JAU-USBCDOCK
Also known as: Lenovo ThinkPad L14 + USB-C Dock G2(40AS0090AU) AMD Ryzen™ 5 PRO 4650U Laptop 35.6 cm (14") Full HD 8 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro

Specifications

102 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Business

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	250 cd/m²
Colour gamut	45%
Contrast ratio (typical)	700:1

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5 PRO
Processor generation	AMD Ryzen PRO 4000 Series
Processor model	4650U
Processor cores	6
Processor boost frequency	4 GHz
Processor frequency	2.1 GHz
Processor cache	8 MB

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX200
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

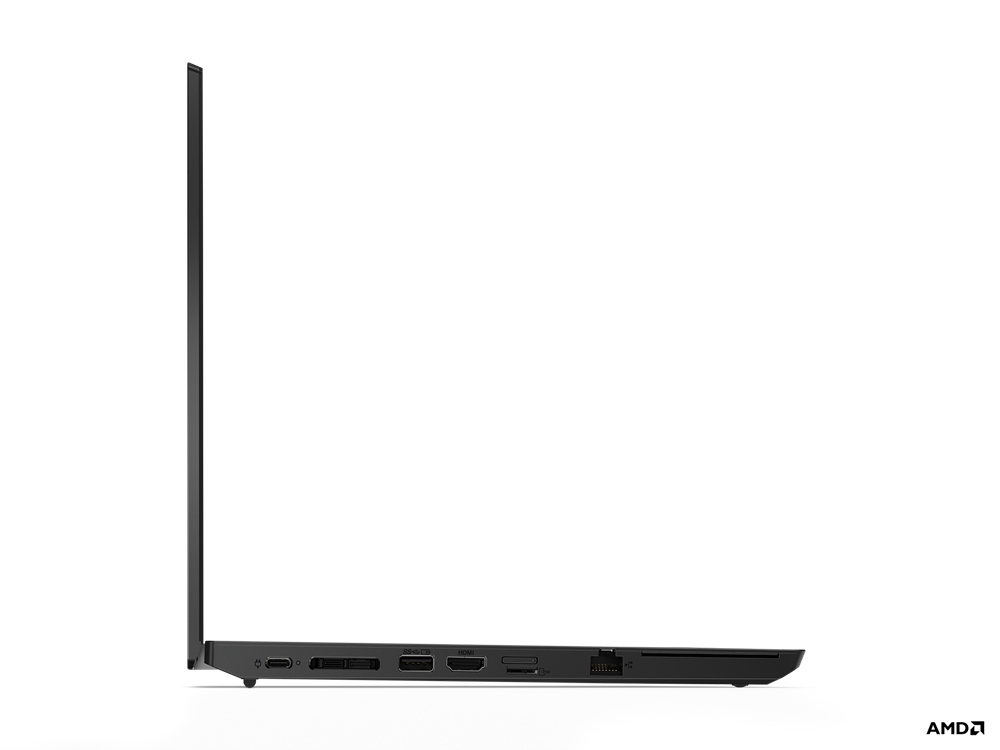

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4b
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	No
Numeric keypad	No
Spill-resistant keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	45 Wh
Battery life (max)	14.36 h
Fast charging	Yes

Power

Specification	Value
AC adapter power	65 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	MIL-STD-810G

Sustainability

Specification	Value
Sustainability certificates	TCO, EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.61 kg
Width	331 mm
Depth	235 mm
Height	20.4 mm

Packaging content

Specification	Value
Docking station included	Yes
