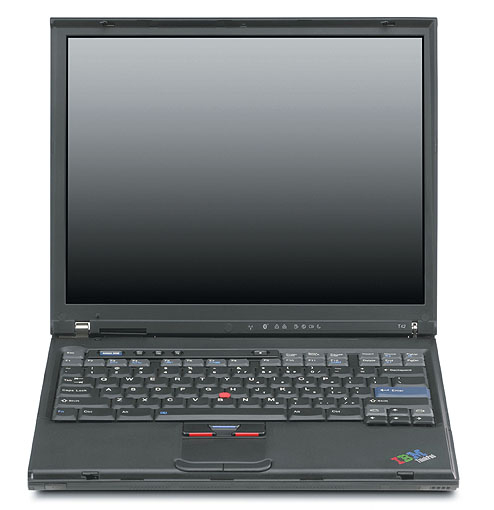

Model IBM THINKPAD T42 P M-1.8(745) CENT. 512/60G/14/DVD/CDRW/WXP USPart no. UC2M3US

85 specifications Checked 6 days ago

Overview

Brand: Lenovo
Category: Laptop
Model: IBM THINKPAD T42 P M-1.8(745) CENT. 512/60G/14/DVD/CDRW/WXP US
Part numbers: UC2M3US, UC2M3DK
Also known as: Lenovo ThinkPad IBM T42 P M-1.8(745) CENT. 512/60G/14/DVD/CDRW/WXP US Intel Pentium Mobile 35.8 cm (14.1") 0.5 GB 60 GB AMD Mobility Radeon 9600

85 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	745
Processor cores	1
Processor threads	1
Processor frequency	1.8 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	400 MHz
Processor socket	Socket 479
Processor lithography	90 nm
Processor operating modes	32-bit
Processor series	Intel Pentium M 700 Series
Processor codename	Dothan
Bus type	FSB
FSB Parity	No
Thermal Design Power (TDP)	21 W
Tjunction	100 °C
Number of Processing Die Transistors	144 M
Processing Die size	87 mm²
CPU multiplier (bus/core ratio)	18
ECC supported by processor	No

Specification	Value
Internal memory	0.5 GB

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon 9600
Maximum graphics card memory	0.064 GB
Maximum resolution	2048 x 1536 pixels
Graphics card interface	AGP 4X

Specification	Value
Audio system	stereo
Number of built-in speakers	2

Specification	Value
Networking features	Ethernet/Fast Ethernet/Gigabit Ethernet/IEEE 802.11b/IEEE 802.11g/Bluetooth

Specification	Value
I/O ports	-External Display -Headphone/Line out -Infrared -Parallel -RJ-11 -RJ-45 -S-Video out -2 USB 2.0 -AC adapter -Expansion Bus port (for Dock II/Mini Dock or Port Replicator II) -External microphone

Specification	Value
Keyboard type	Full size

Specification	Value
Compatible operating systems	Microsoft Windows XP Professional

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27591
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
Battery life (max)	4 h

Specification	Value
Weight	2.1 kg
Dimensions (WxDxH)	311 x 255 x 27 mm

Specification	Value
Storage drive type	ATA-100 (Enhanced IDE)

Specification	Value
Security features	-Hard disk drive password -Supervisor password -Integrated fingerprint reader -IBM Embedded Security Subsystem 2.0 -IBM Security Slot -Power-on password
Battery type	6 Cell Lithium-Ion
Internal modem	Yes
Modem speed	56 Kbit/s
Supplied AC adapter type	AC
