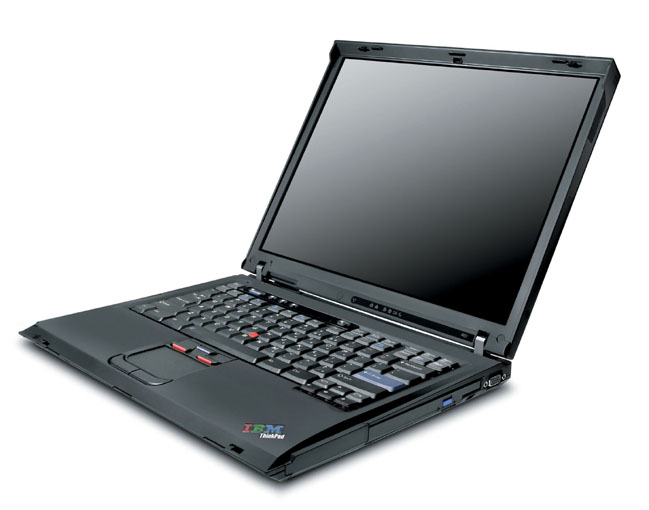

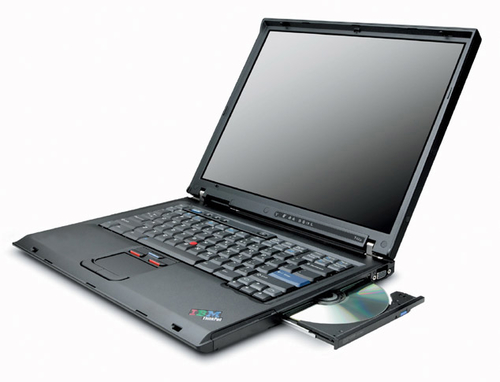

Lenovo IBM THINKPAD R52 P M 2.13/1GB/80GB/15/DVD-REC/WXP

Model IBM THINKPAD R52 P M 2.13/1GB/80GB/15/DVD-REC/WXPPart no. UN537NU

109 specifications Checked yesterday

Overview

Brand: Lenovo
Category: Laptop
Model: IBM THINKPAD R52 P M 2.13/1GB/80GB/15/DVD-REC/WXP
Part number: UN537NU
Also known as: Lenovo IBM THINKPAD R52 P M 2.13/1GB/80GB/15/DVD-REC/WXP Intel Pentium Mobile 770 38.1 cm (15") DDR2-SDRAM AMD Mobility Radeon X300

109 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	770
Processor cores	1
Processor threads	1
Processor frequency	2.13 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	533 MHz
Processor socket	Socket 479
Processor lithography	90 nm
Processor operating modes	32-bit
Processor series	Intel Pentium M 700 Series
Processor codename	Dothan
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	27 W
Tjunction	100 °C
Number of Processing Die Transistors	144 M
Processing Die size	87 mm²
CPU multiplier (bus/core ratio)	16
ECC supported by processor	No

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM

Specification	Value
Total storage capacity	80 GB
HDD speed	4200 RPM

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon X300
Maximum graphics card memory	0.064 GB
Graphics card interface	PCI Express

Specification	Value
Number of built-in speakers	2

Specification	Value
Networking features	Ethernet/Fast Ethernet/Gigabit Ethernet/IEEE 802.11a/IEEE 802.11b/IEEE 802.11g/Bluetooth

Specification	Value
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	1
Serial ports quantity	0
I/O ports	-Docking/Port Replicator -Expansion Bus port (for Dock II/Mini Dock or Port Replicator II)
USB 1.1 ports quantity	0

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard type	Full size

Specification	Value
Bundled software	Access Program, ThinkVantage Access Connections, ThinkVantage Rescue and Recovery, Norton AntiVirus 2004 with 90 days of virus definition upgrades, PC Doctor diagnostics, Adobe Acrobat Reader
Compatible operating systems	Microsoft Windows XP Professional

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	27597
Processor code	SL868
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
Battery life (max)	3.6 h

Specification	Value
DC-in jack	Yes

Specification	Value
Weight	2.8 kg
Dimensions (WxDxH)	332 x 269 x 38 mm

Specification	Value
Storage drive type	ATA-100 (Enhanced IDE)

Specification	Value
Security features	-Hard disk drive password -IBM Security Slot -Power-on password -Supervisor password
Infrared data port	Yes
Battery type	6 Cell Lithium-Ion
Wake-on-LAN ready	No
Wake-on-Ring ready	No
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	56K V.92
Supplied AC adapter type	AC
