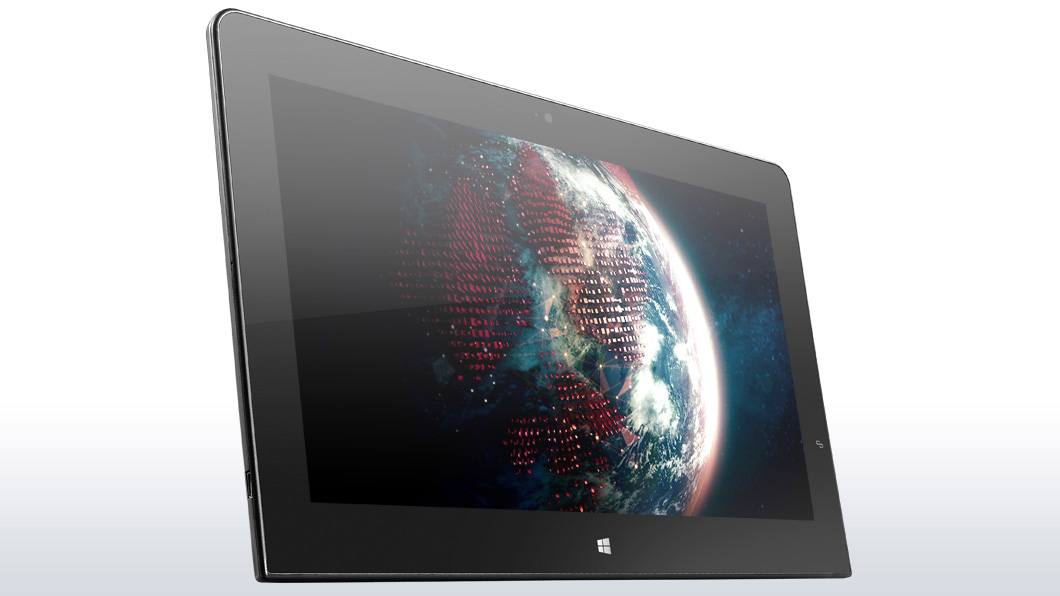

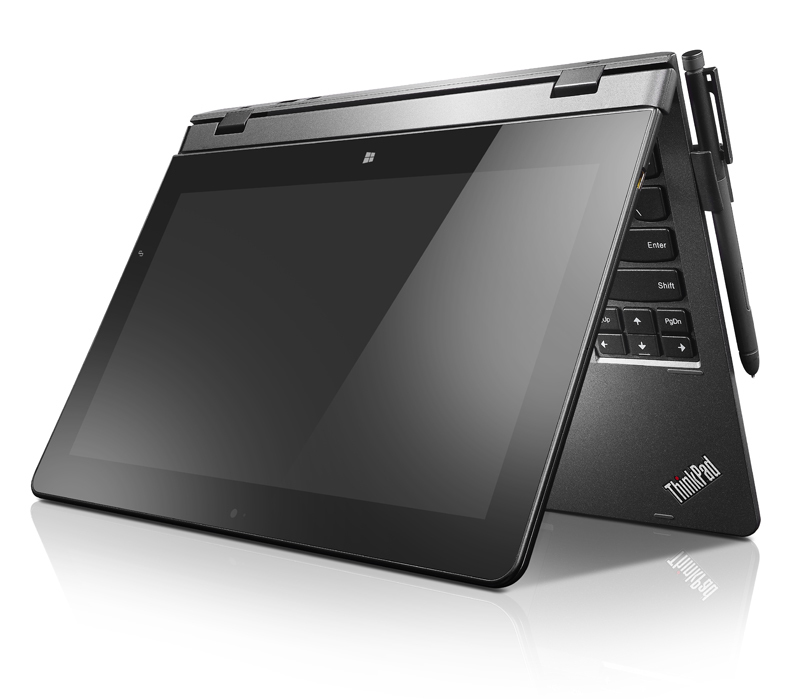

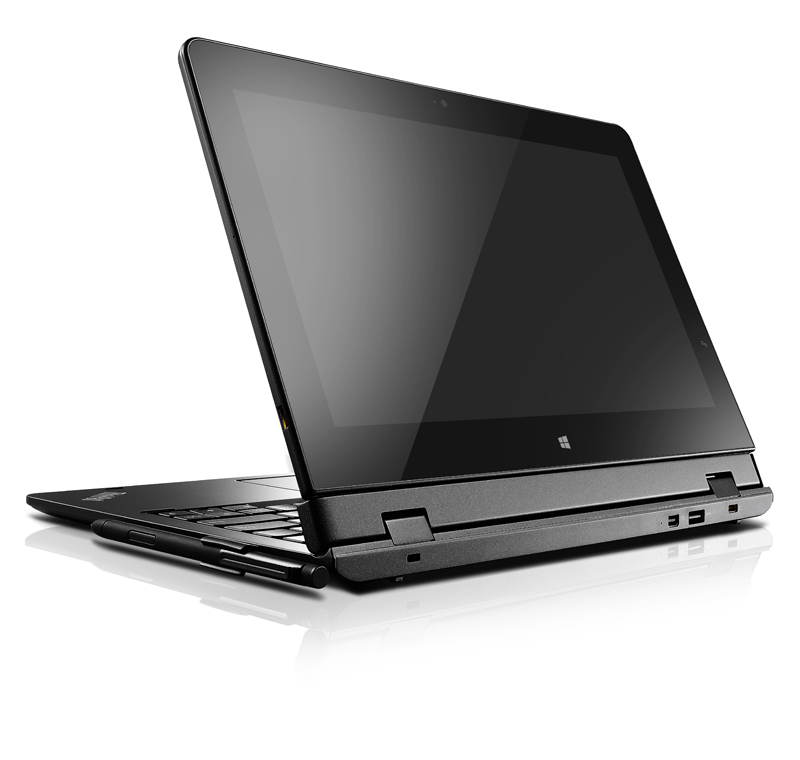

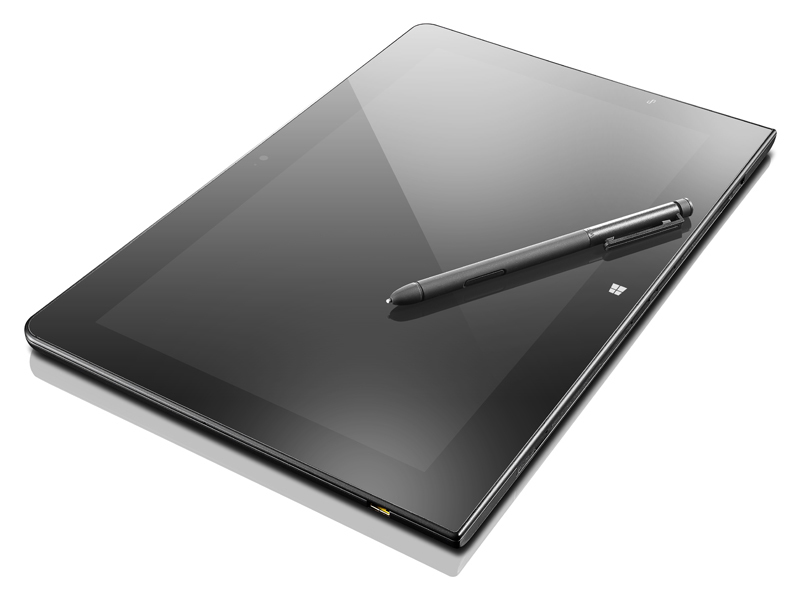

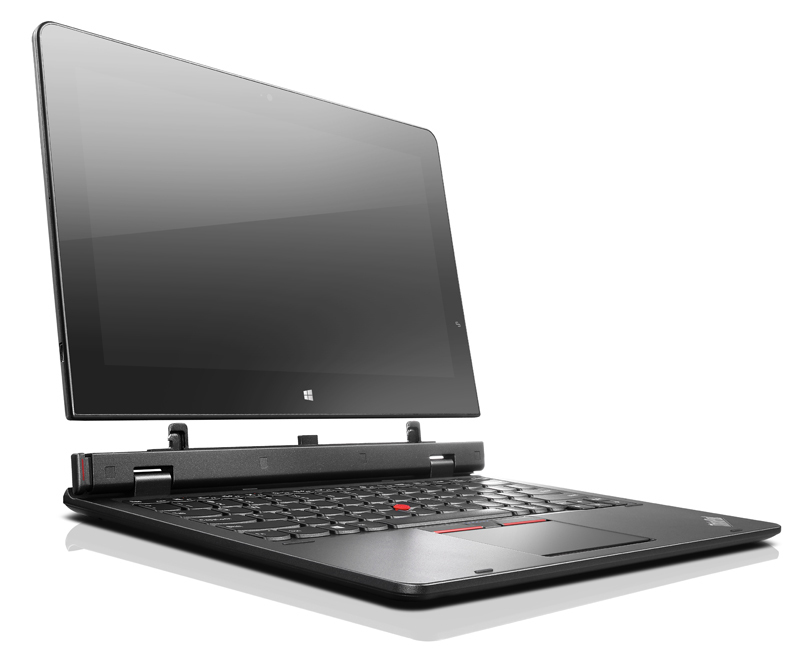

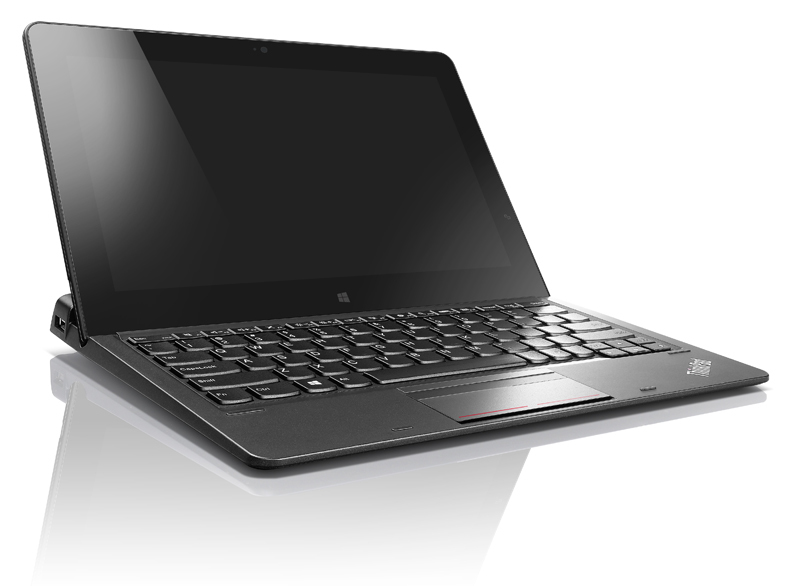

Lenovo Helix 2nd Gen

Model Helix 2nd GenPart no. 20CHS02A00EAN 889233497821

178 specifications Checked 2 days ago

Display29.5 cm (11.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ M
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ M
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: Helix 2nd Gen
Part number: 20CHS02A00
EAN / UPC: 889233497821
Also known as: Lenovo ThinkPad Helix 2nd Gen Intel® Core™ M M-5Y70 Hybrid (2-in-1) 29.5 cm (11.6") Touchscreen Full HD 8 GB DDR3L-SDRAM 256 GB SSD Windows 8.1 Pro Black, Graph

Specifications

178 specifications in 23 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black, Graphite
Form factor	Convertible (Detachable)
Housing material	Aluminium

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	Full HD
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss
Display brightness	370 cd/m²
Contrast ratio (typical)	800:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ M
Processor generation	Intel® Core™ m-5xxx
Processor model	M-5Y70
Processor cores	2
Processor threads	4
Processor boost frequency	2.6 GHz
Processor frequency	1.1 GHz
System bus rate	5 GT/s
Processor cache	4 MB
Processor cache type	L3
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core M-5Y Mobile series
Processor codename	Broadwell
Thermal Design Power (TDP)	4.5 W
Tjunction	95 °C
PCI Express configurations	2x4, 4x1
PCI Express slots version	2.0
Number of Processing Die Transistors	12 M
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory form factor	On-board
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	8 GB
Maximum internal memory (64-bit)	8 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5300
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	100 MHz
On-board graphics card dynamic frequency (max)	850 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card OpenGL version	4.3
Maximum resolution	1920 x 1080 pixels

Audio

Specification	Value
Audio system	Dolby Home Theater v4
Number of built-in speakers	2
Speaker power	0.7 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Auto focus	Yes
Rear camera	Yes
Rear camera resolution (numeric)	5 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	4G
2G standards	Edge, GPRS, GSM
3G standards	HSPA
4G standard	LTE
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	867 Mbit/s
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0
Near Field Communication (NFC)	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Micro HDMI ports quantity	1
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
GPS (satellite)	Yes
Gyroscope	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8.1 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Smart Connect Technology	No
Intel Stable Image Platform Program (SIPP)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Processor ARK ID	83612
Processor package size	30 x 16.5 x 1.05 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	2
Battery capacity	35 Wh
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	36 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	GreenGuard

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.38 kg
Width	301.1 mm
Depth	192.5 mm
Height	9.6 mm
Weight (tablet mode)	822 g

Packaging content

Specification	Value
AC adapter included	No

Other features

Specification	Value
Intel segment tagging	Home office, Small Business
Supplied AC adapter type	AC
