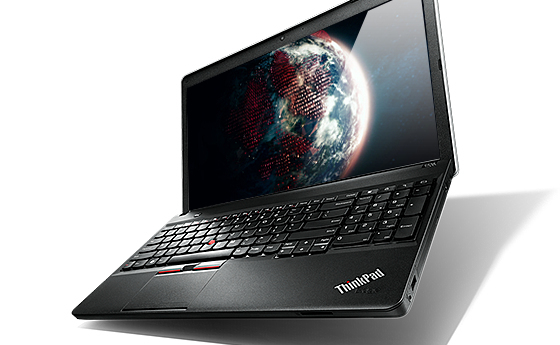

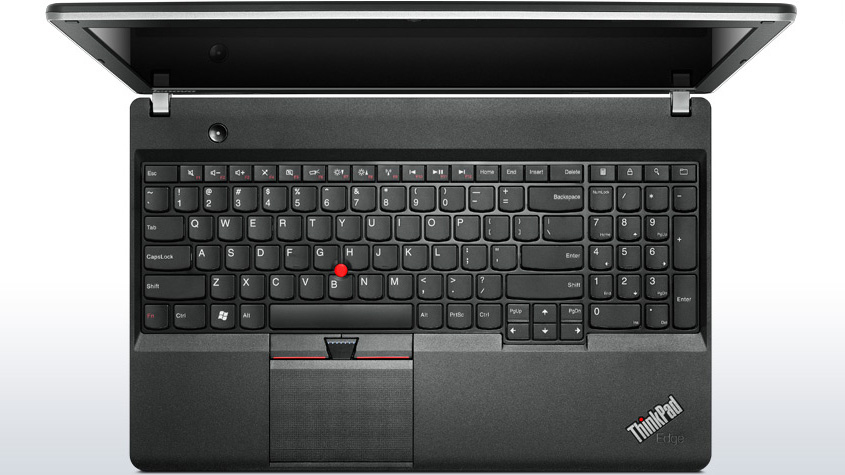

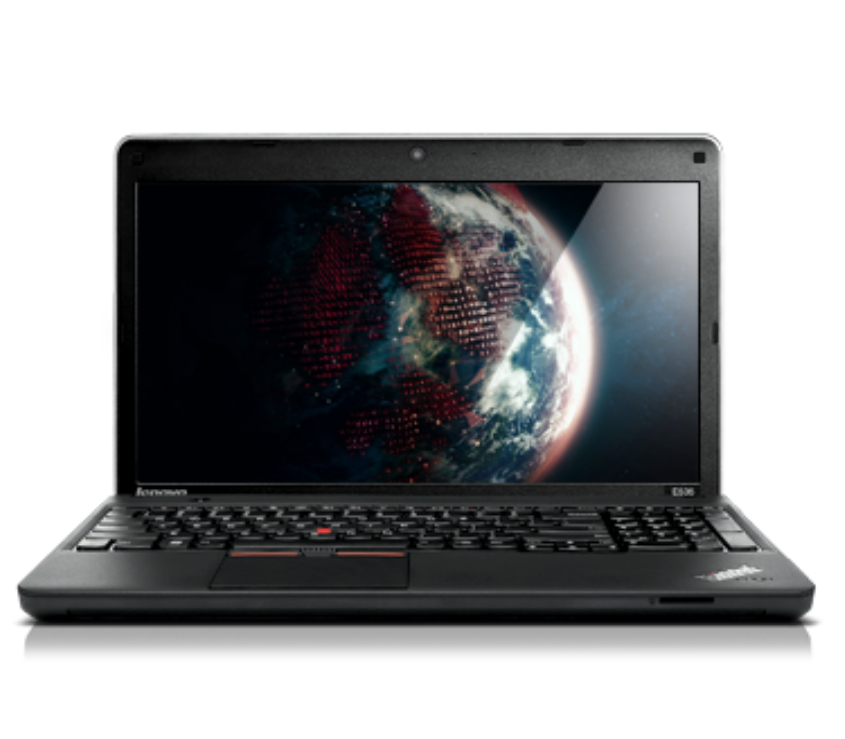

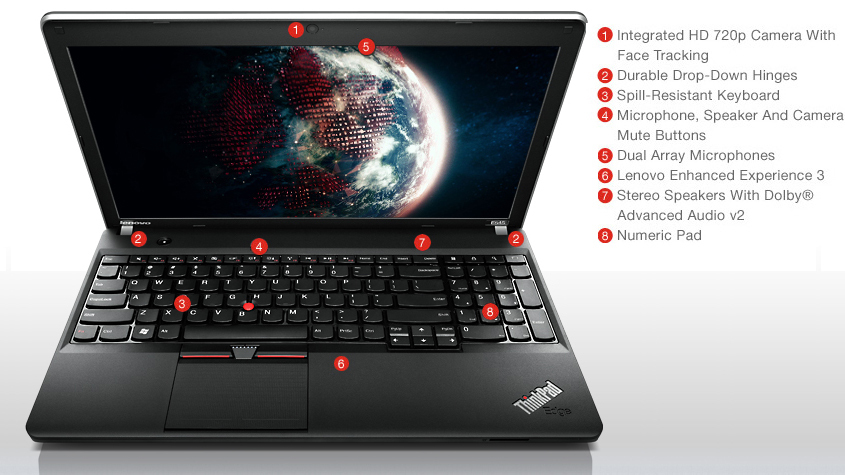

Lenovo ThinkPad Edge E545 AMD A8 A8-5550M Laptop

39.6 cm (15.6") 8 GB DDR3L-SDRAM 1 TB HDD AMD Radeon HD 8570M Windows 8 Black

Model E545Part no. 20B2000MGEEAN 888228513638

116 specifications Checked 4 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorAMD A8
Memory8 GB
Storage1 TB
GraphicsAMD Radeon HD 8570M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: AMD A8
Memory: 8 GB
Storage: 1 TB
Graphics: AMD Radeon HD 8570M

Brand: Lenovo
Category: Laptop
Model: E545
Part numbers: 20B2000MGE, 20B2000NGE, 20B2000MGB, 20B2000NGB, 20B2000MNX, 20B2000MMH +34 more
EAN / UPC: 888228513638, 088822845283, 888228452807, 888228099088 +3 more
Also known as: Lenovo ThinkPad Edge E545 AMD A8 A8-5550M Laptop 39.6 cm (15.6") 8 GB DDR3L-SDRAM 1 TB HDD AMD Radeon HD 8570M Windows 8 Black

Specifications

116 specifications in 22 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Plastic

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	Not supported
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	220 cd/m²
Dual-screen	No

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD A8
Processor model	A8-5550M
Processor cores	4
Processor threads	4
Processor boost frequency	3.1 GHz
Processor frequency	2.1 GHz
Processor cache	4 MB
Processor cache type	L2
Processor socket	Socket FS1r2

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA II
HDD speed	5400 RPM
HDD size	2.5"
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon HD 8570M
Discrete graphics card memory	2 GB
On-board graphics card family	AMD Radeon HD 8000
On-board graphics card model	AMD Radeon HD 8550G

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution	1280 x 720 pixels

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

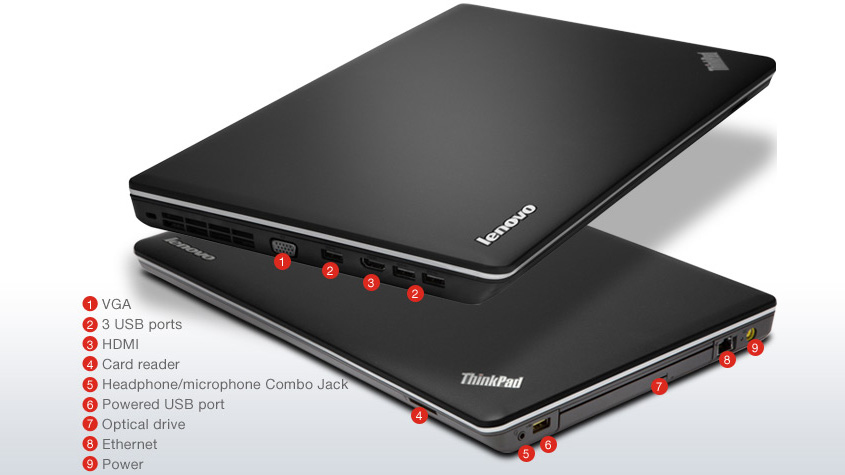

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Motherboard chipset	AMD A76M FCH

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Intel Clear Video Technology	No
Intel Smart Connect Technology	No
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	48 Wh
Battery life (max)	6.2 h

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.45 kg
Width	377 mm
Depth	245 mm
Height (front)	2.85 cm
Height (rear)	3.43 cm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes

Other features

Specification	Value
Intel segment tagging	Home office, Small Business
