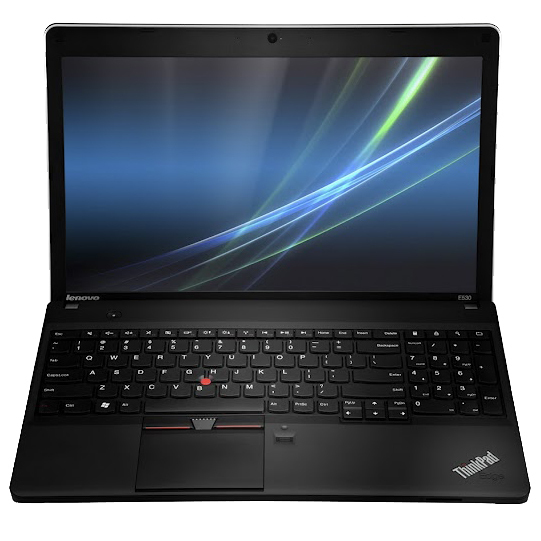

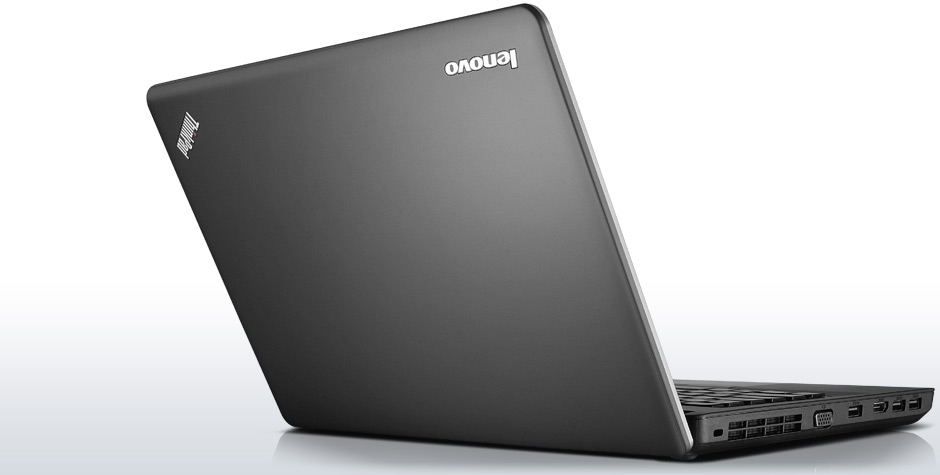

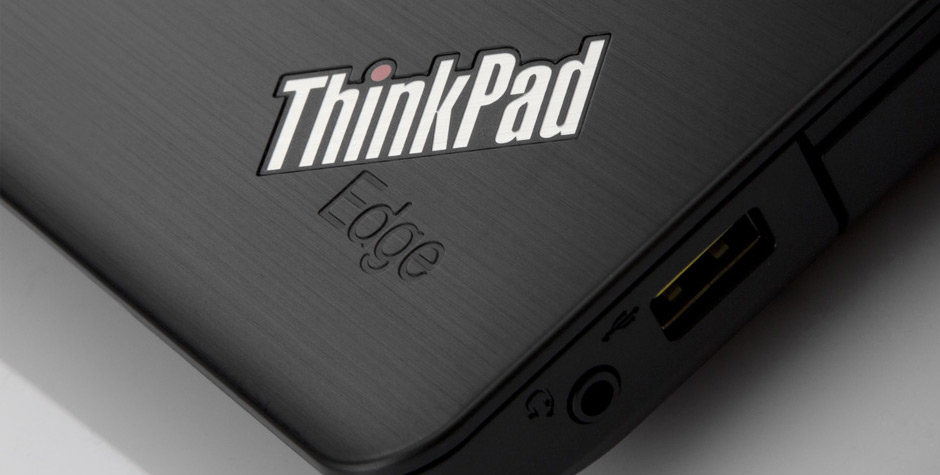

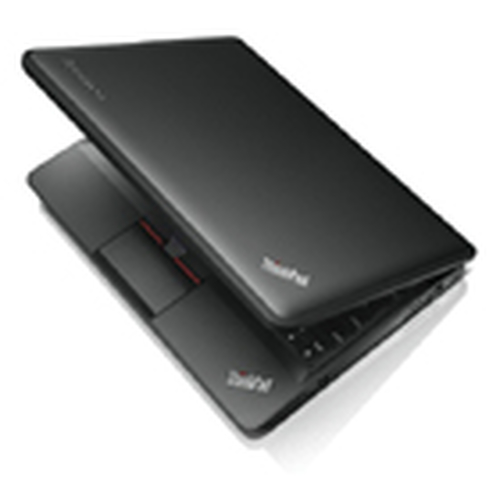

Lenovo ThinkPad Edge E530 Intel® Pentium® B960 Laptop

39.6 cm (15.6") HD 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (802.11n) Windows 7 Home Premium Black QWERTY

Model E530Part no. NZQMCMBEAN 887263145415

186 specifications Checked yesterday

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: E530
Part numbers: NZQMCMB, NZQ9VUK, NZQ3YHV, NZQC9HV, NZQBQUK, N4F49MH +34 more
EAN / UPC: 887263145415, 886843975817, 887037442504, 887037438774 +56 more
Also known as: Lenovo ThinkPad Edge E530 Intel® Pentium® B960 Laptop 39.6 cm (15.6") HD 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (802.11n) Windows 7 Home Premium Black QWERTY

Specifications

186 specifications in 22 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	220 cd/m²
Contrast ratio (typical)	500:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	B960
Processor cores	2
Processor threads	2
Processor frequency	2.2 GHz
System bus rate	5 GT/s
Processor cache	2 MB
Processor cache type	L3
Processor socket	Socket 988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium B900 Series for Mobile
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Stepping	Q0
Thermal Design Power (TDP)	35 W
Tjunction	85 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	22
Compatible processor series	Intel® Pentium® Dual-Core
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Memory slots (available)	1
Maximum internal memory	8 GB
Maximum internal memory (64-bit)	8 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	5400 RPM
HDD size	2.5"
Number of SSDs installed	0
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Audio

Specification	Value
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
Speaker power	2 W
Built-in subwoofer	No
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution	1280 x 720 pixels

Optical drive

Specification	Value
Optical drive interface	SATA

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet, WLAN
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Integrated 4G WiMAX	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Micro HDMI ports quantity	0
Mini VGA ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm
S-Video port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel HM77 Express

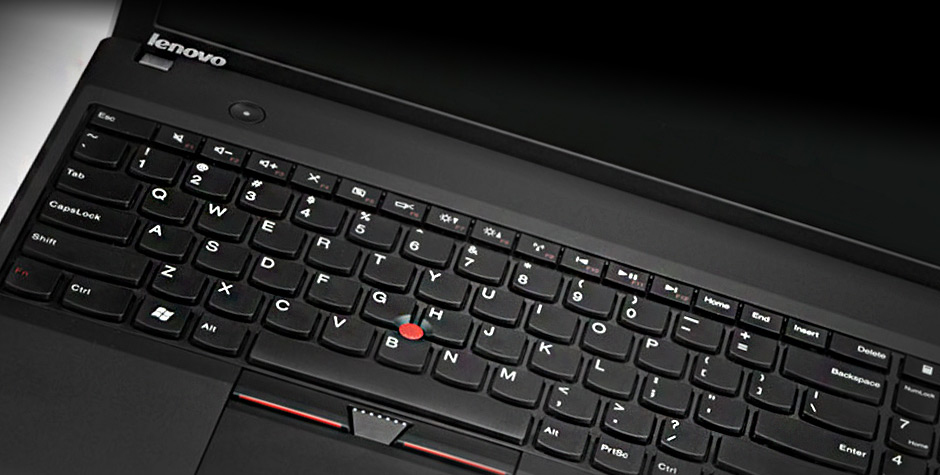

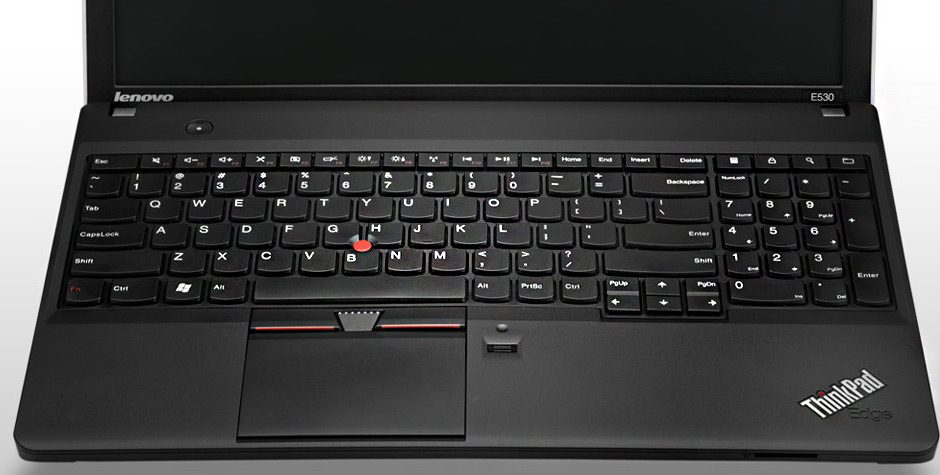

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Spill-resistant keyboard	Yes
Full-size keyboard	No
Windows keys	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Drivers included	Yes
Compatible operating systems	Windows® 7 Home Premium 32-bit Windows® 7 Home Premium 64-bit Windows® 7 Professional 64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	59836
Processor code	SR07V
Processor package size	37.5x37.5 (rPGA988B)
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	5600 mAh
Battery life (max)	5.4 h

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes
Password protection type	HDD, Power on, Supervisor
HDD user password	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.45 kg
Width	377 mm
Depth	245 mm
Height	31.1 mm
Width (imperial)	37.6 cm (14.8")
Depth (imperial)	24.4 cm (9.6")
Height (front) (imperial)	2.79 cm (1.1")
Height (rear) (imperial)	3.05 cm (1.2")

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Manual	Yes
Quick start guide	Yes
Warranty card	Yes

Other features

Specification	Value
Infrared data port	No
Intel segment tagging	Home office, Small Business
