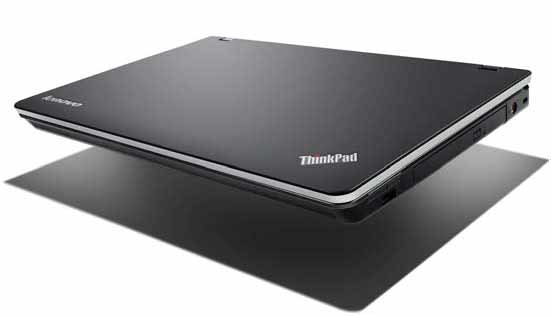

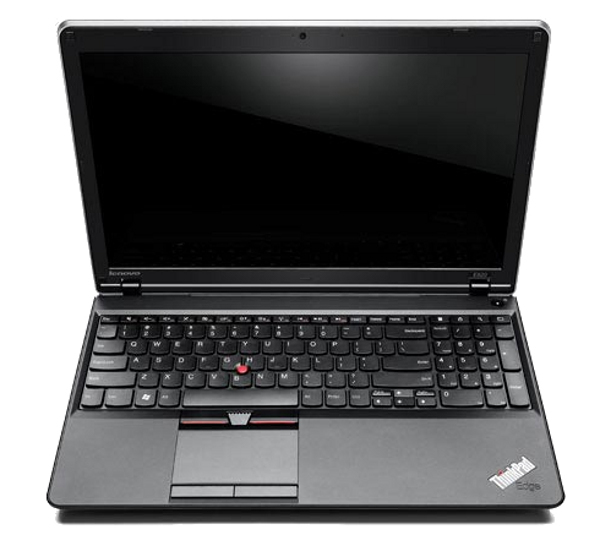

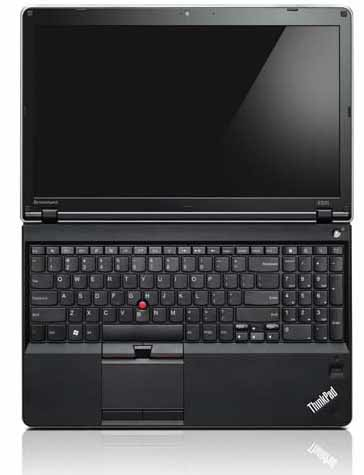

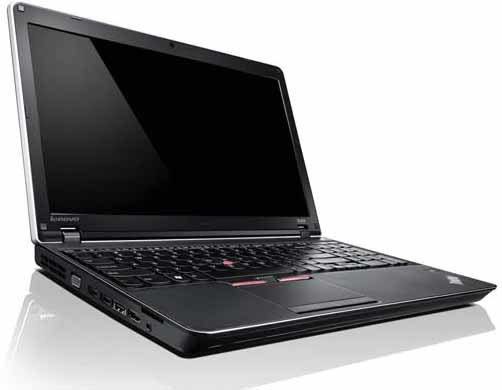

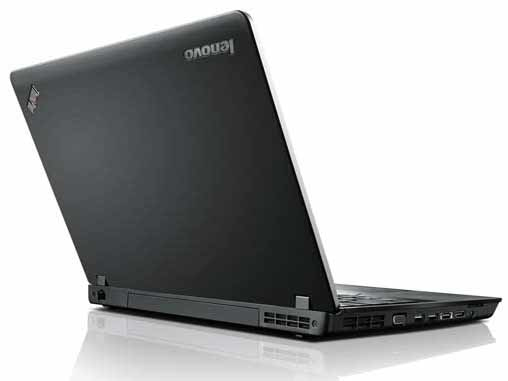

ThinkPad Edge E520s Intel® Core™ i3 i3-2310M

39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB AMD Radeon HD 6630M Windows 7 Professional Black

Model E520sPart no. NZ32WZA

145 specifications Checked today

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage500 GB
GraphicsAMD Radeon HD 6630M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 500 GB
Graphics: AMD Radeon HD 6630M

Brand: Lenovo
Category: Laptop
Model: E520s
Part number: NZ32WZA
Also known as: Lenovo ThinkPad Edge E520s Intel® Core™ i3 i3-2310M 39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB AMD Radeon HD 6630M Windows 7 Professional Black

Specifications

145 specifications in 21 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	220 cd/m²
Contrast ratio (typical)	500:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	2nd gen Intel® Core™ i3
Processor model	i3-2310M
Processor cores	2
Processor threads	4
Processor frequency	2.1 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-2300 Mobile Series
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Stepping	J1
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	21
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	500 GB
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon HD 6630M
Graphics card family	AMD, Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x116

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Built-in microphone	Yes

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Bluetooth	Yes
Cabling technology	10/100/1000Base-T(X)
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	1
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Motherboard chipset	Intel QM65

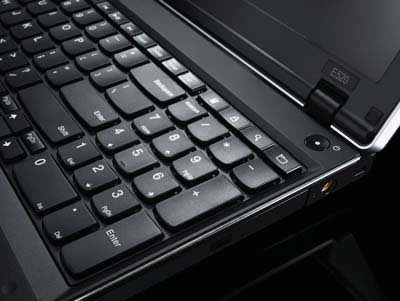

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	52220
Processor code	SR04S
Processor package size	37.5 x 37.5 xrPGA988B); 31 x 24 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Fingerprint reader	Yes
Password protection type	HDD, Power on, Supervisor

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.1 kg
Width	375 mm
Depth	245 mm
Height (front)	2.8 cm
Height (rear)	3.3 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Intel segment tagging	Home office, Small Business
Supplied AC adapter type	AC
