E420s + mouse + case
Model E420s + mouse + casePart no. NWD4NMN-1BNDL
132 specifications Checked today

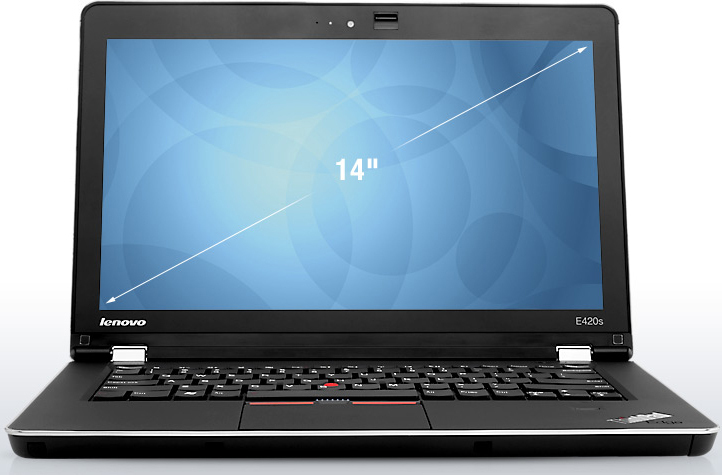

- Display35.6 cm (14")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™ i5
- Memory4 GB
- Storage320 GB
- GraphicsAMD Radeon HD 6630M
Overview
- Display
- 35.6 cm (14")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™ i5
- Memory
- 4 GB
- Storage
- 320 GB
- Graphics
- AMD Radeon HD 6630M
- Brand
- Lenovo
- Category
- Laptop
- Model
- E420s + mouse + case
- Part numbers
- NWD4NMN-1BNDL, NWD5BMN-BNDL, NWD5CMN-BNDL, NWD5DMN-BNDL
- Also known as
- Lenovo ThinkPad Edge E420s + mouse + case Intel® Core™ i5 i5-2410M 35.6 cm (14") 4 GB DDR3-SDRAM 320 GB HDD AMD Radeon HD 6630M Windows 7 Professional
Specifications
132 specifications in 16 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1366 x 768 pixels |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 200 cd/m² |
| Contrast ratio (typical) | 300:1 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 2nd gen Intel® Core™ i5 |
| Processor model | i5-2410M |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2.9 GHz |
| Processor frequency | 2.3 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1023 |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-2400 Mobile Series |
| Processor codename | Sandy Bridge |
| Bus type | DMI |
| FSB Parity | No |
| Stepping | J1 |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x8, 1x16, 2x4, 2x8 |
| PCI Express slots version | 2.0 |
| CPU multiplier (bus/core ratio) | 23 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1333 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Storage media | HDD |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Optical drive type | DVD±RW |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Radeon HD 6630M |
| Graphics card family | AMD |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 3000 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card ID | 0x116 |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
| Number of built-in speakers | 2 |
| Speaker power | 1 W |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 3.0+HS |
| Integrated 4G WiMAX | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| eSATA/USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | Yes |
| TV-out | No |
Keyboard
| Specification | Value |
|---|---|

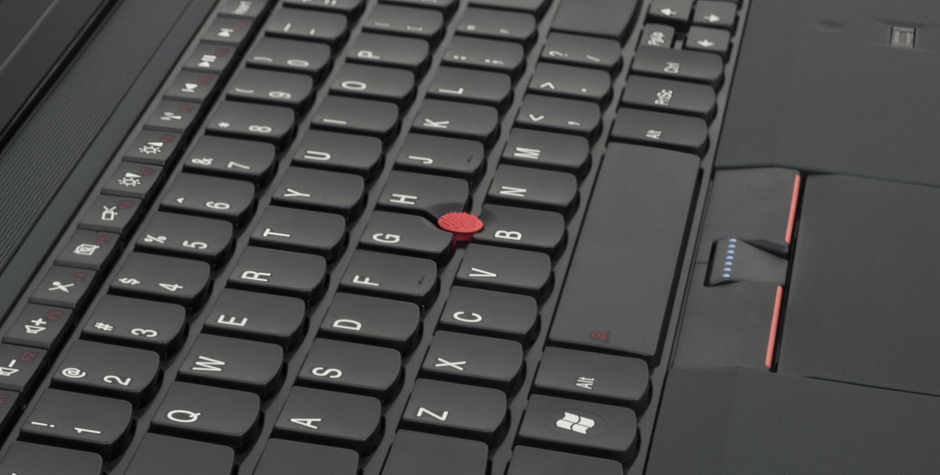

| Pointing device | ThinkPad UltraNav |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 32 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 52224 |
| Processor package size | 37.5x37.5 (rPGA988B); 31 x 24 (BGA1023) |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 4 |
| Battery life (max) | 7 h |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | IBM |
| Fingerprint reader | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.88 kg |
| Width | 349 mm |
| Depth | 236 mm |
| Height (front) | 2.31 cm |
| Height (rear) | 3.12 cm |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Intel segment tagging | Home office, Small Business |
| Supplied AC adapter type | AC |
