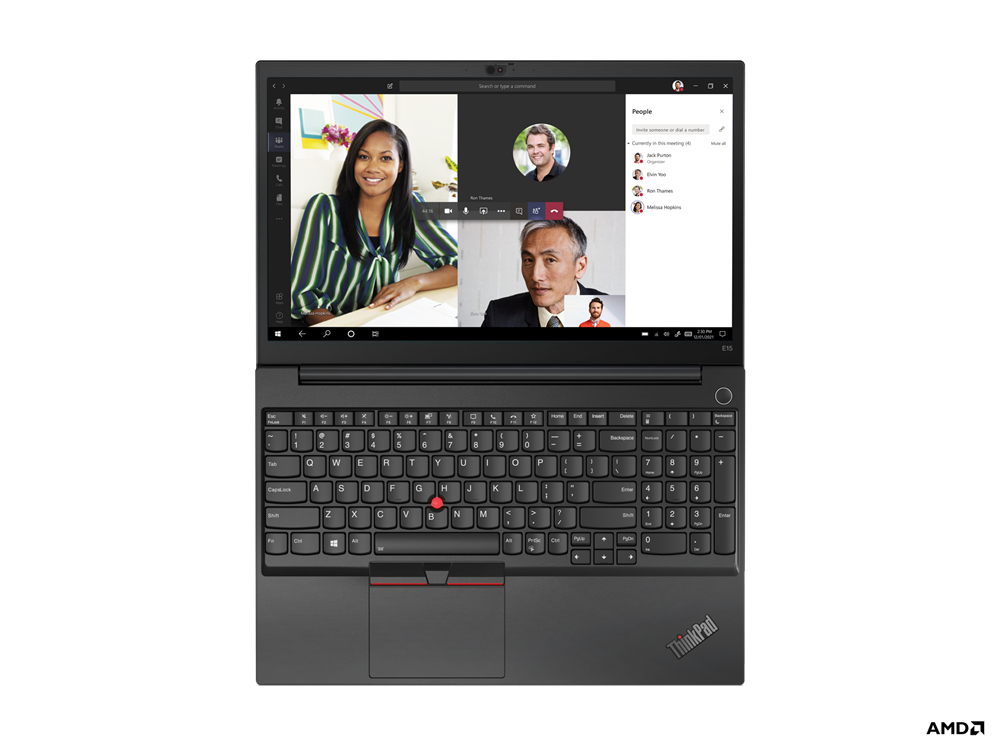

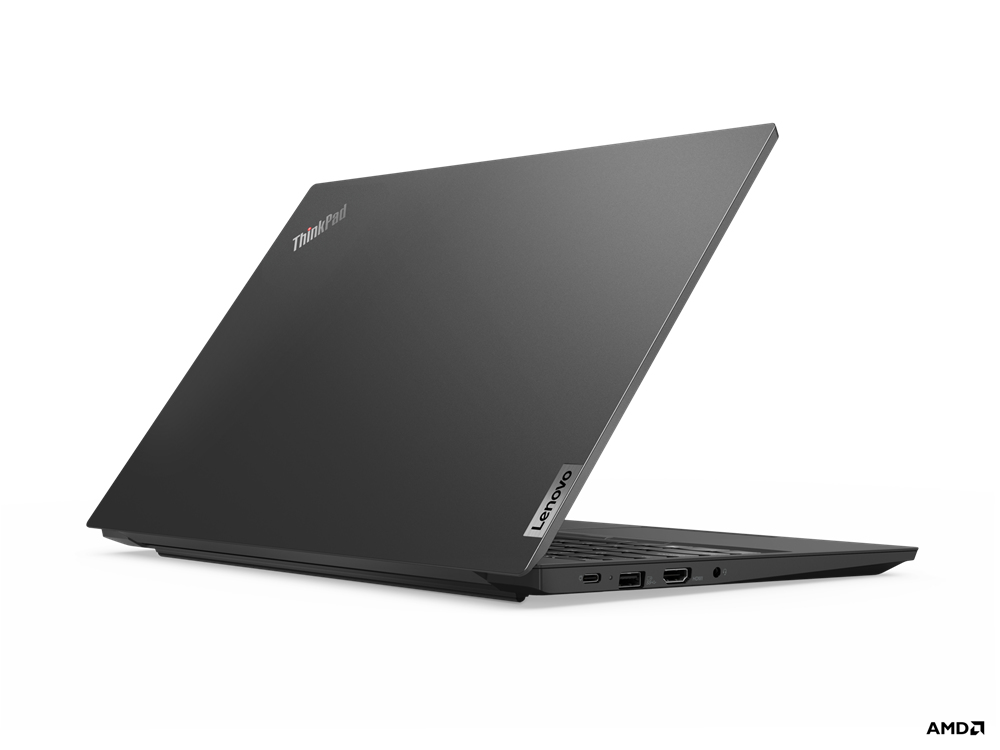

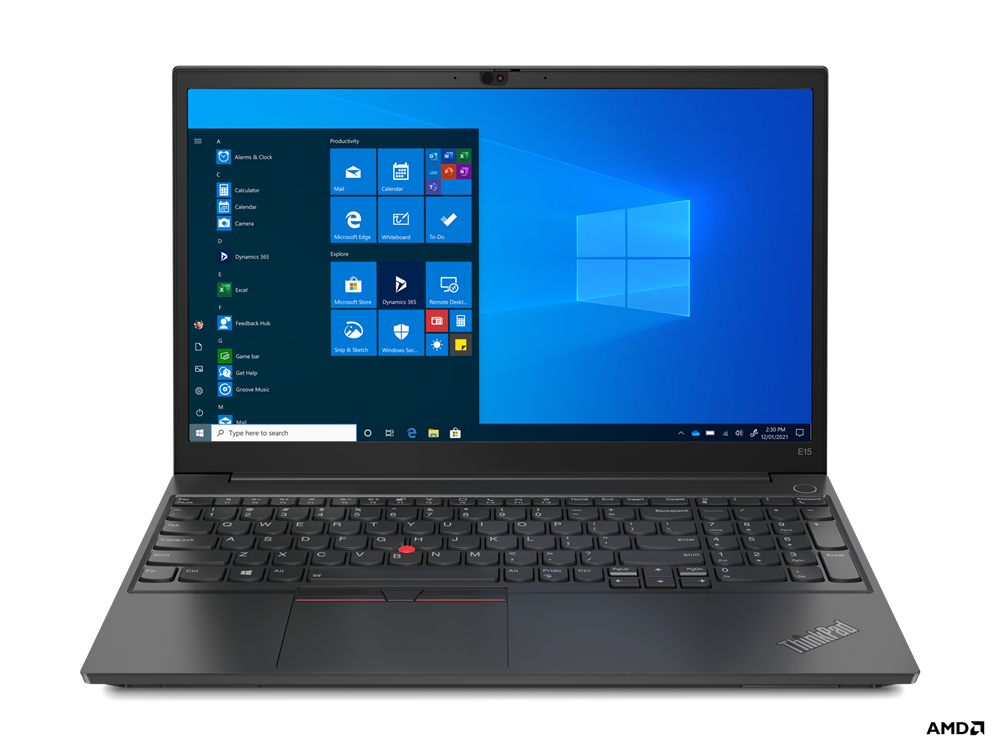

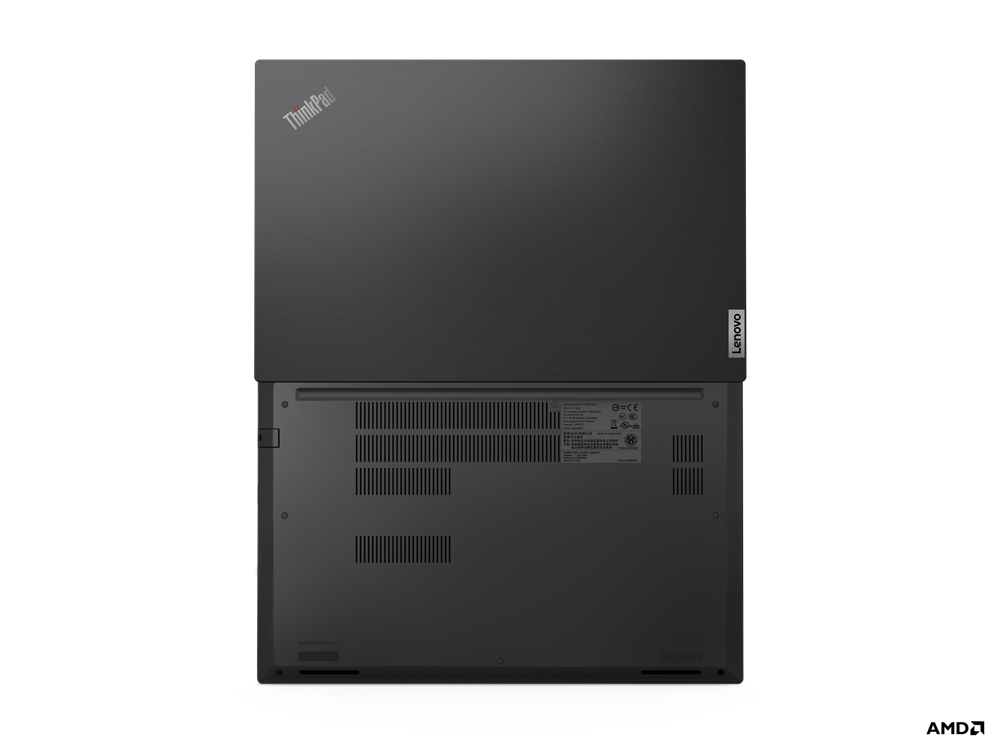

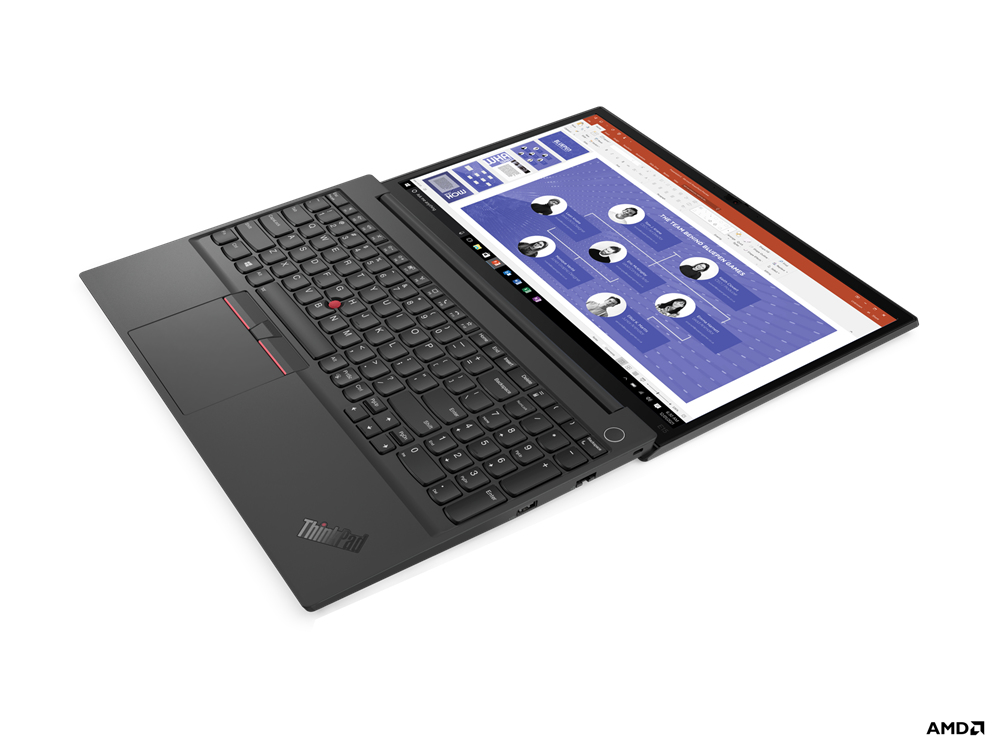

Lenovo E15 + 1Y Premier Support

E15 + 1Y Premier Support

Model E15 + 1Y Premier SupportPart no. 20YG00B8MH-1YP

108 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: E15 + 1Y Premier Support
Part numbers: 20YG00B8MH-1YP, 20YG00B7MH-1YP, 20YG003YMH-1YP
Also known as: Lenovo ThinkPad E15 + 1Y Premier Support AMD Ryzen™ 7 5700U Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Pro Black Q

Specifications

108 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Business

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	300 cd/m²

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 5000 Series
Processor model	5700U
Processor cores	8
Processor boost frequency	4.3 GHz
Processor frequency	1.8 GHz
Processor cache type	L2 & L3

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speakers manufacturer	Harman Kardon
Speaker power	2 W
Built-in subwoofer	No
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2
Near Field Communication (NFC)	No
WWAN	Not installed

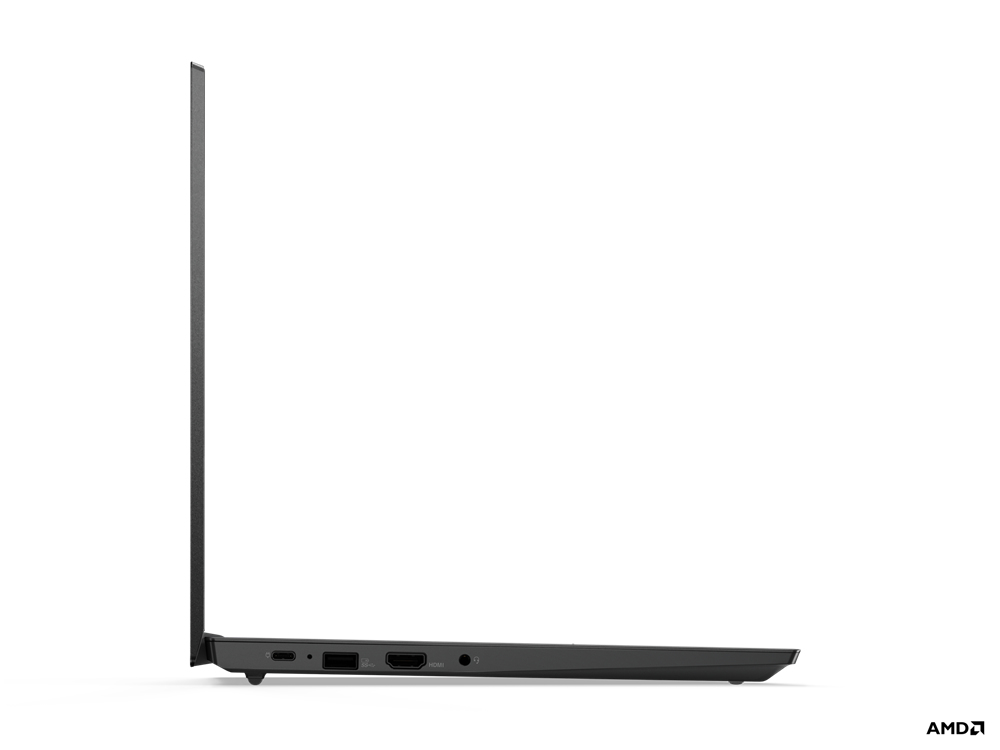

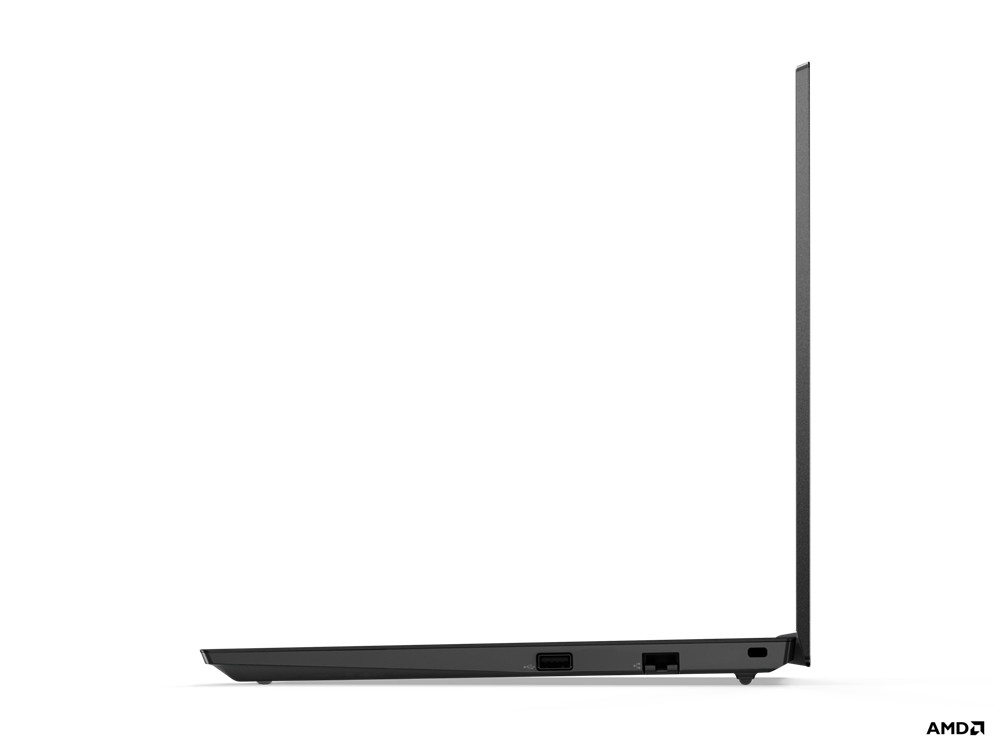

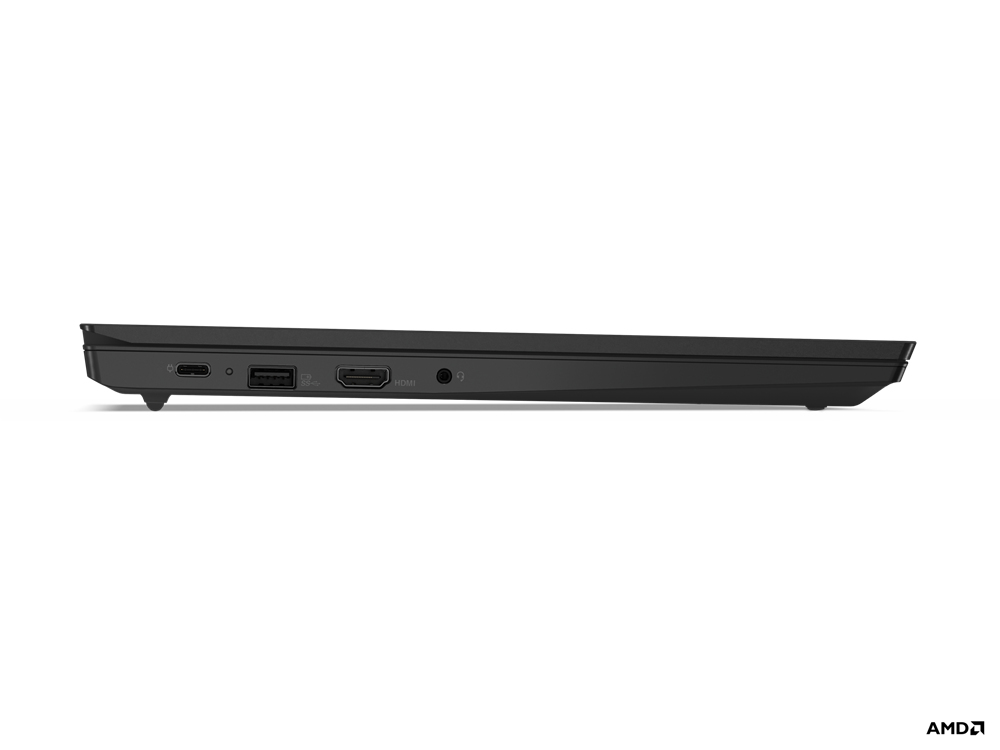

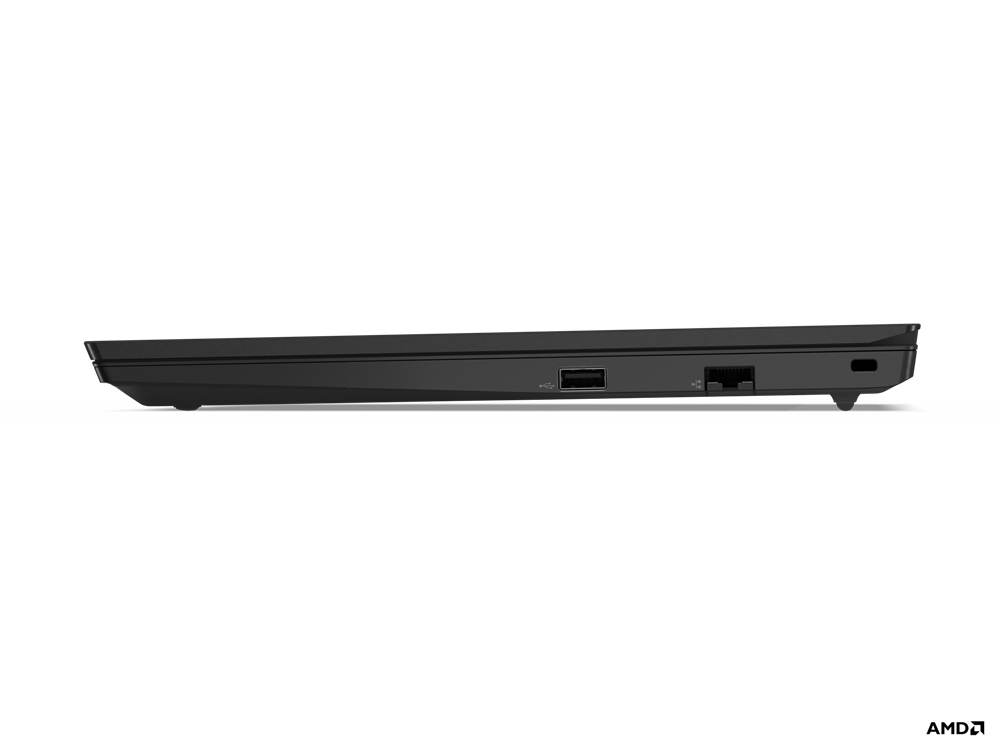

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4b
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	AMD SoC

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard layout	QWERTY
Keyboard language	English

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	German, Dutch, English, French, Italian

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	57 Wh
Battery life (max)	13.6 h
Fast charging	Yes

Power

Specification	Value
AC adapter power	65 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	Power on, SSD, Supervisor

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Certificates

Specification	Value
Certification	EPEAT™ Gold ENERGY STAR® 8.0 ErP Lot 3 GREENGUARD® TCO RoHS compliant MIL-STD-810H

Weight & dimensions

Specification	Value
Weight	1.7 kg
Width	365 mm
Depth	240 mm
Height	18.9 mm

Logistics data

Specification	Value
Harmonized System (HS) code	84713000
