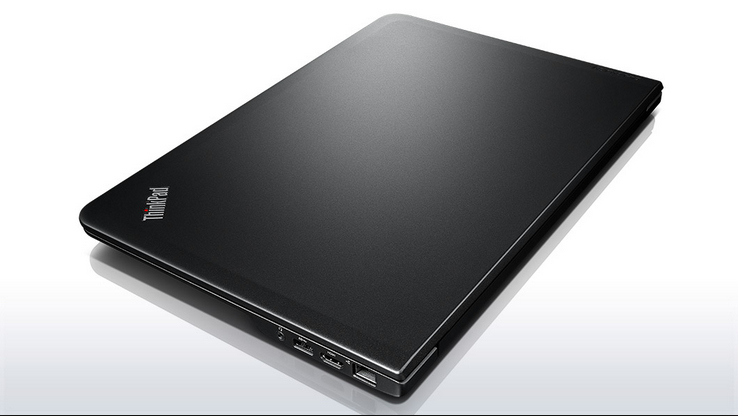

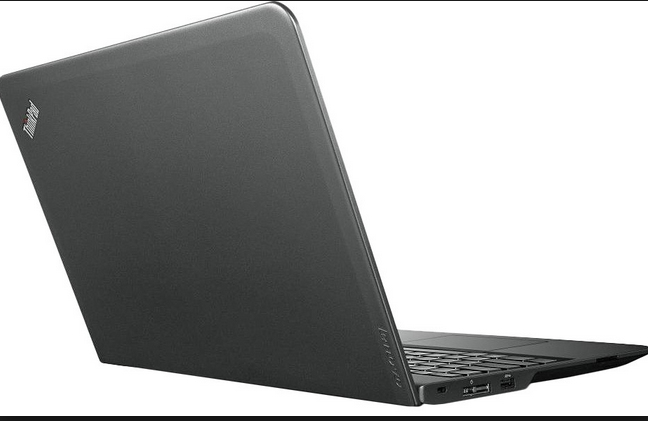

Lenovo ThinkPad 540 Intel® Core™ i7 i7-4500U

35.6 cm (14") Touchscreen Full HD 8 GB DDR3-SDRAM 256 GB SSD Windows 8 Black

Model 540Part no. 20B30014MCEAN 888228148960

130 specifications Checked 3 days ago

Display35.6 cm (14")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage256 GB
TypeClamshell

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 256 GB
Type: Clamshell

Brand: Lenovo
Category: Laptop
Model: 540
Part number: 20B30014MC
EAN / UPC: 888228148960
Also known as: Lenovo ThinkPad 540 Intel® Core™ i7 i7-4500U 35.6 cm (14") Touchscreen Full HD 8 GB DDR3-SDRAM 256 GB SSD Windows 8 Black

Specifications

130 specifications in 19 groups

Design

Specification	Value
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Touch technology	Multi-touch
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4500U
Processor cores	2
Processor threads	4
Processor boost frequency	3 GHz
Processor frequency	1.8 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1168
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4500 Mobile series
Processor codename	Haswell
Bus type	DMI2
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	15 W
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	2x4
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory slots	1x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of HDDs installed	1
Number of SSDs installed	1
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12
On-board graphics card ID	0xA16

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	1 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Bluetooth	Yes
WWAN	Installed

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Microphone in	Yes
Total number of SATA connectors	4
Number of SATA III connectors	4

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel ME Firmware Version	9.5
Intel Rapid Storage Technology	Yes
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	75460
Processor code	SR16Z
Processor package size	40 x 24 x 1.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery life (max)	9 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes

Weight & dimensions

Specification	Value
Weight	2.36 kg
Width	379 mm
Depth	252 mm
Height	22.8 mm

Other features

Specification	Value
3D	No
