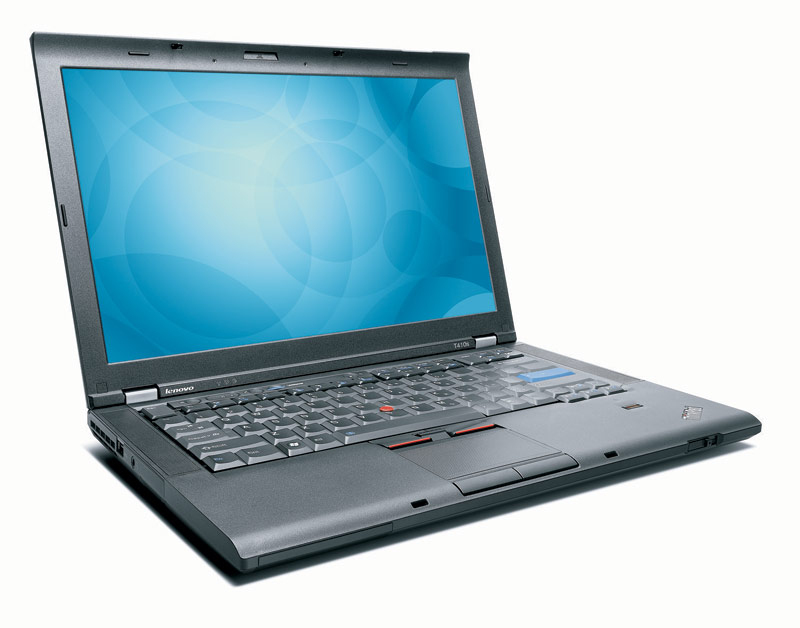

Lenovo ThinkPad 410s Intel® Core™ i5 i5-520M

35.8 cm (14.1") 4 GB DDR3-SDRAM 250 GB Intel® HD Graphics Windows 7 Professional

Model 410sPart no. NUK3RMHEAN 885600959114

124 specifications Checked 3 days ago

Display35.8 cm (14.1")
Resolution1440 x 900 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage250 GB
GraphicsIntel® HD Graphics

See all specifications

Overview

Display: 35.8 cm (14.1")
Resolution: 1440 x 900 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 250 GB
Graphics: Intel® HD Graphics

Brand: Lenovo
Category: Laptop
Model: 410s
Part numbers: NUK3RMH, NUK25MD, NUK3RFR
EAN / UPC: 885600959114
Also known as: Lenovo ThinkPad 410s Intel® Core™ i5 i5-520M 35.8 cm (14.1") 4 GB DDR3-SDRAM 250 GB Intel® HD Graphics Windows 7 Professional

Specifications

124 specifications in 16 groups

Display

Specification	Value
Display diagonal	35.8 cm (14.1")
Display resolution	1440 x 900 pixels
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-520M
Processor cores	2
Processor threads	4
Processor boost frequency	2.93 GHz
Processor frequency	2.4 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 956
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-500 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	18
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM
Memory slots (available)	0
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	250 GB
Number of HDDs installed	1
HDD interface	SATA
Optical drive type	DVD-RW
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	Intel® HD Graphics
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.1+EDR
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
TV-out	No

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	47341
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Fingerprint reader	Yes

Weight & dimensions

Specification	Value
Weight	1.8 kg

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Intel segment tagging	Home office, Small Business
