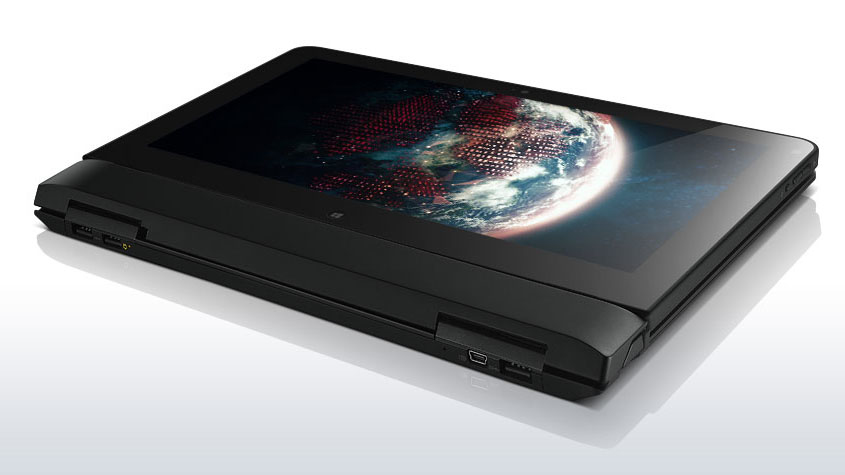

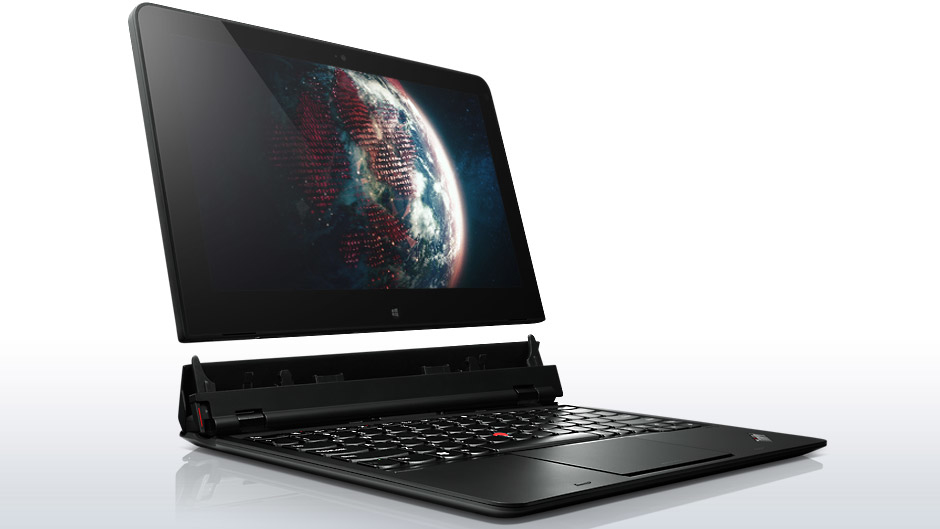

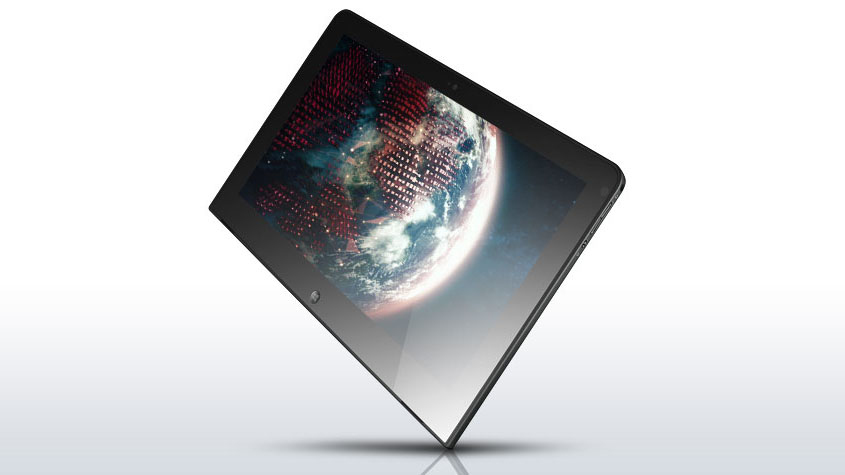

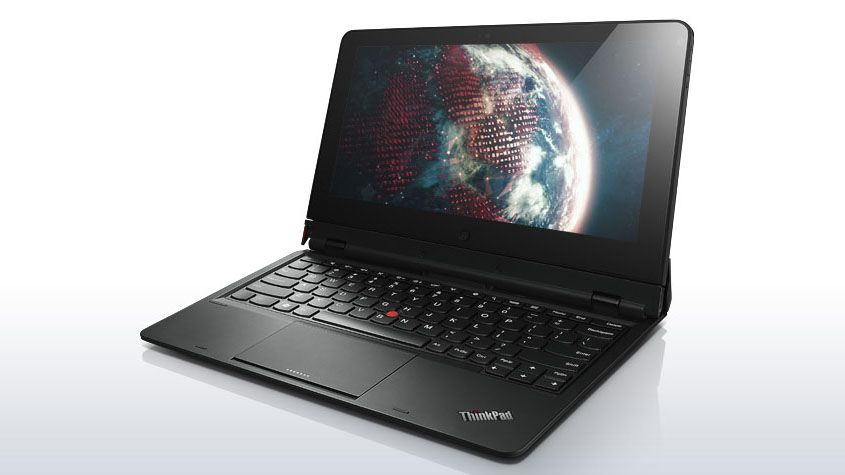

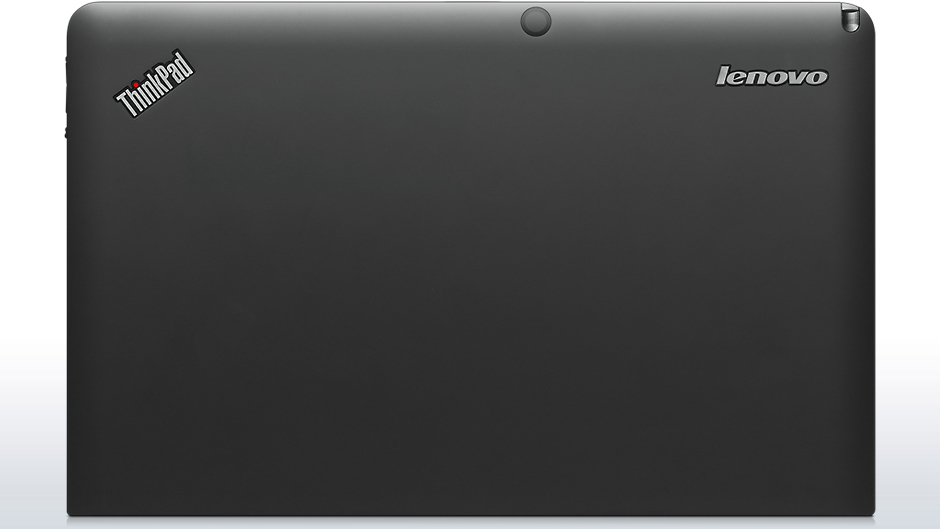

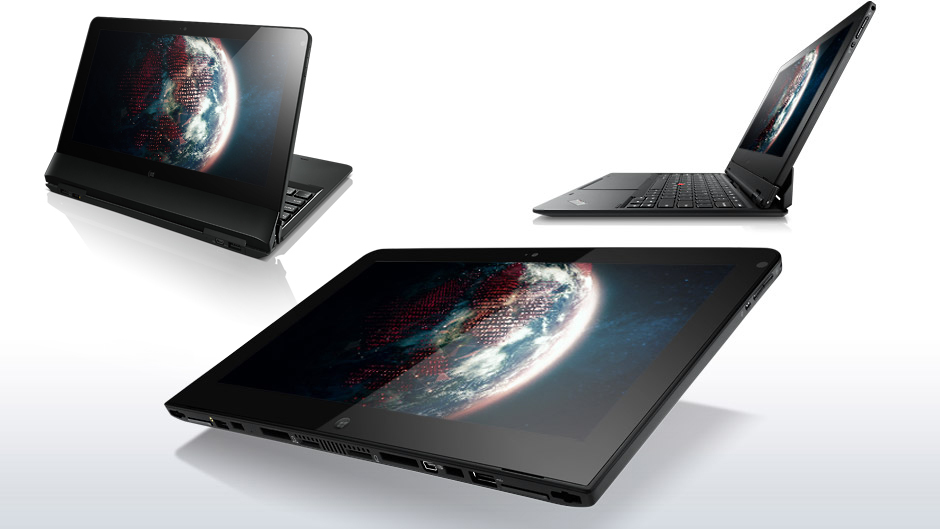

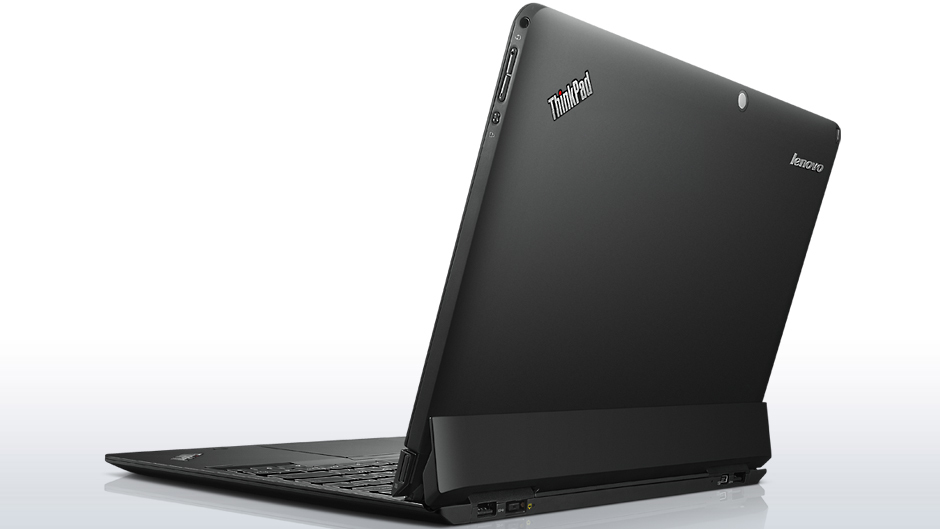

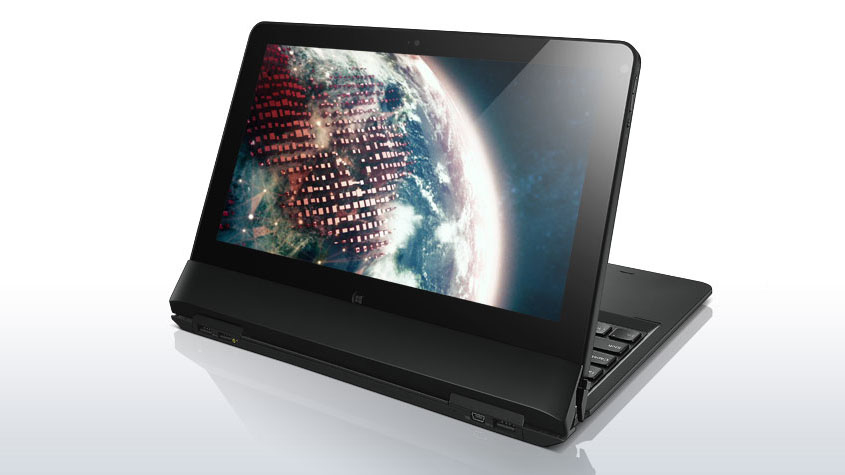

Lenovo ThinkPad 3702 Intel® Core™ i5 i5-3427U Hybrid (2-in-1)

29.5 cm (11.6") Touchscreen Full HD 4 GB DDR3-SDRAM 180 GB SSD Wi-Fi 4 (802.11n) FreeDOS Black

Model 3702Part no. 37023W9EAN 888228198859

168 specifications Checked 2 days ago

Display29.5 cm (11.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage180 GB
Camera5 MP

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 180 GB
Camera: 5 MP

Brand: Lenovo
Category: Laptop
Model: 3702
Part number: 37023W9
EAN / UPC: 888228198859
Also known as: Lenovo ThinkPad 3702 Intel® Core™ i5 i5-3427U Hybrid (2-in-1) 29.5 cm (11.6") Touchscreen Full HD 4 GB DDR3-SDRAM 180 GB SSD Wi-Fi 4 (802.11n) FreeDOS Black

Specifications

168 specifications in 22 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Touch technology	Multi-touch
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	350 cd/m²
Contrast ratio (typical)	800:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3427U
Processor cores	2
Processor threads	4
Processor boost frequency	2.8 GHz
Processor frequency	1.8 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3400 Mobile Series
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Stepping	L1
Thermal Design Power (TDP)	17 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	18
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory form factor	On-board
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	180 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	180 GB
SSD interface	mSATA
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x166
Maximum resolution	2560 x 1600 pixels

Audio

Specification	Value
Audio system	Dolby Home Theater v4
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Front camera resolution	1920 x 1080 pixels
Auto focus	Yes
Rear camera	Yes
Rear camera resolution (numeric)	5 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	2
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Motherboard chipset	Intel® QS77 Express
Accelerometer	Yes
Ambient light sensor	Yes
Orientation sensor	Yes

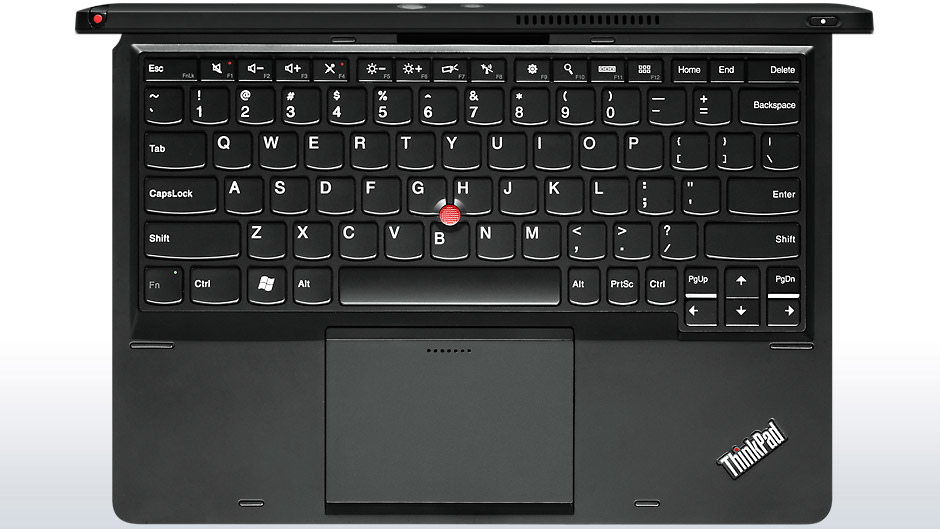

Keyboard

Specification	Value
Pointing device	Touchpad + Pointing Stick
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	FreeDOS

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	2.0
Processor ARK ID	64903
Processor code	SR0N7
Processor package size	31 x 24 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	4
Battery capacity	28 Wh
Battery life (max)	10 h

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Certificates

Specification	Value
Wi-Fi certified	Yes

Weight & dimensions

Specification	Value
Weight	1.7 kg
Width	296 mm
Depth	187.3 mm
Height	20.4 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Quick start guide	Yes

Other features

Specification	Value
Intel segment tagging	Home office, Small Business
