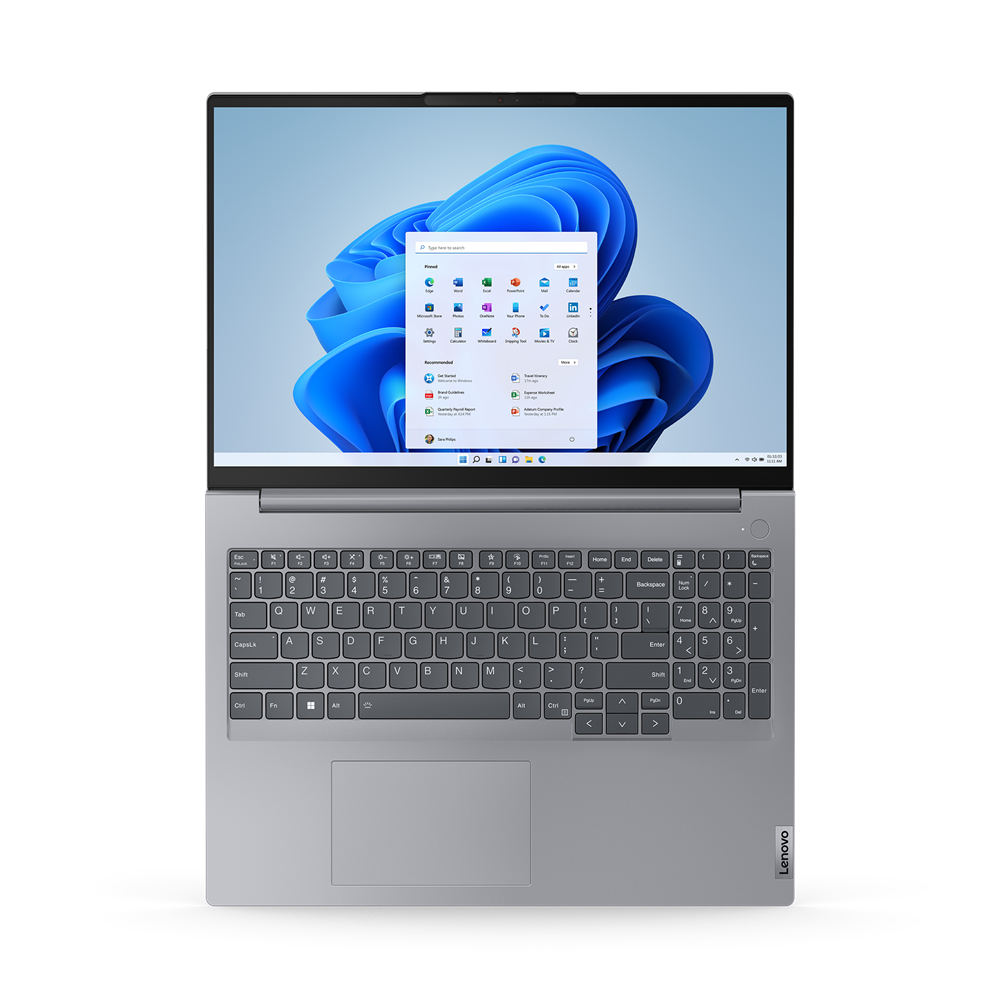

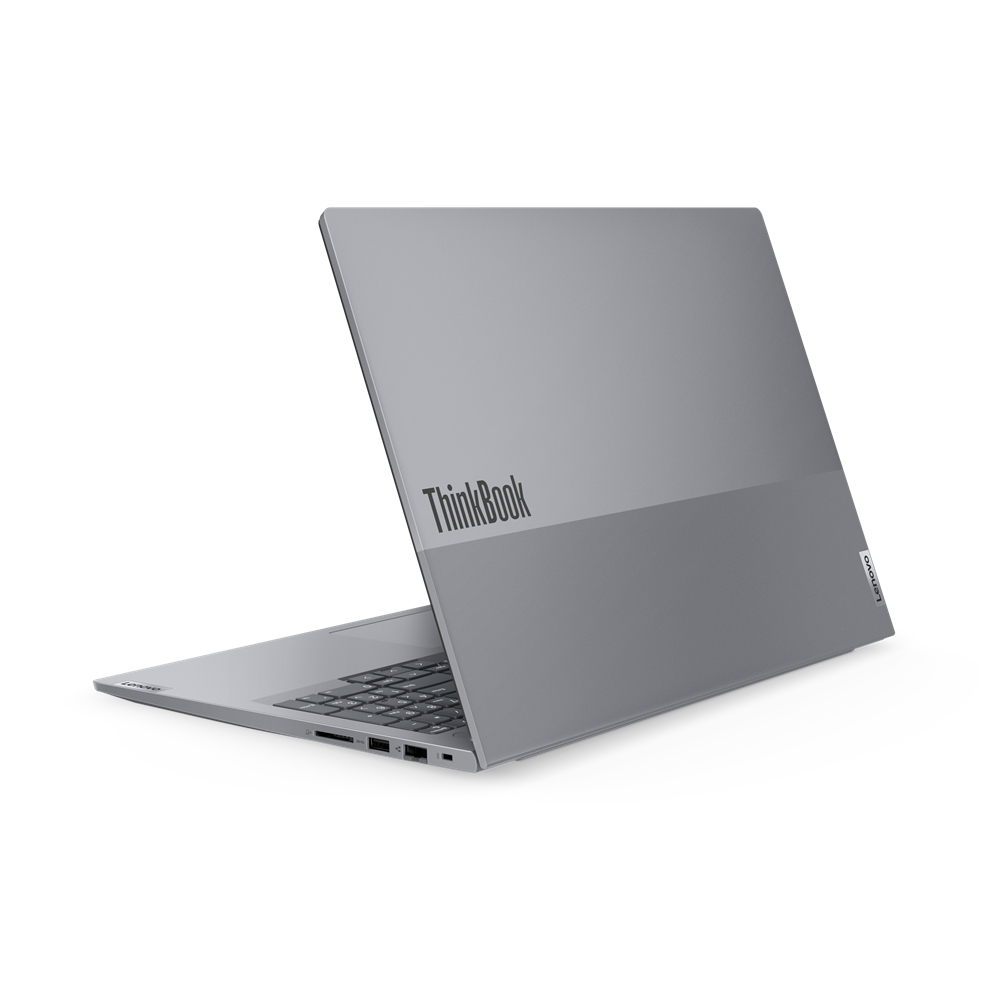

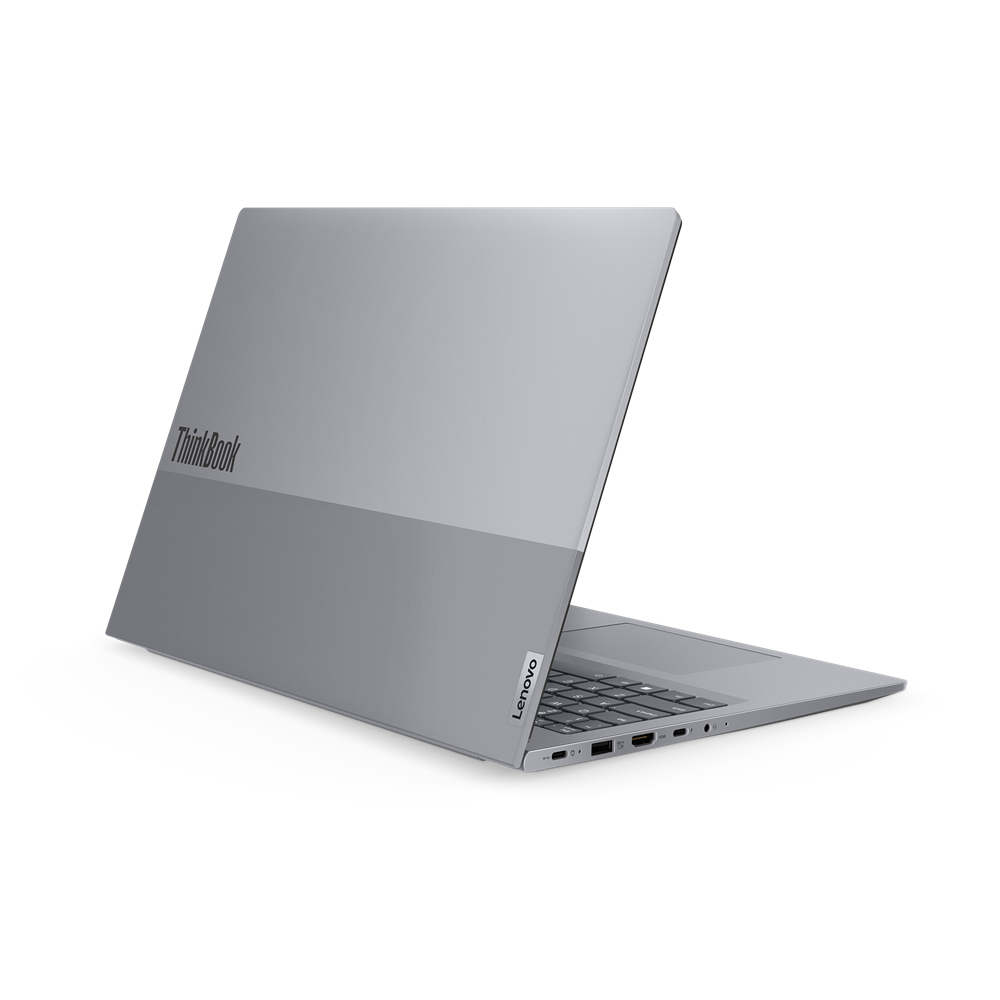

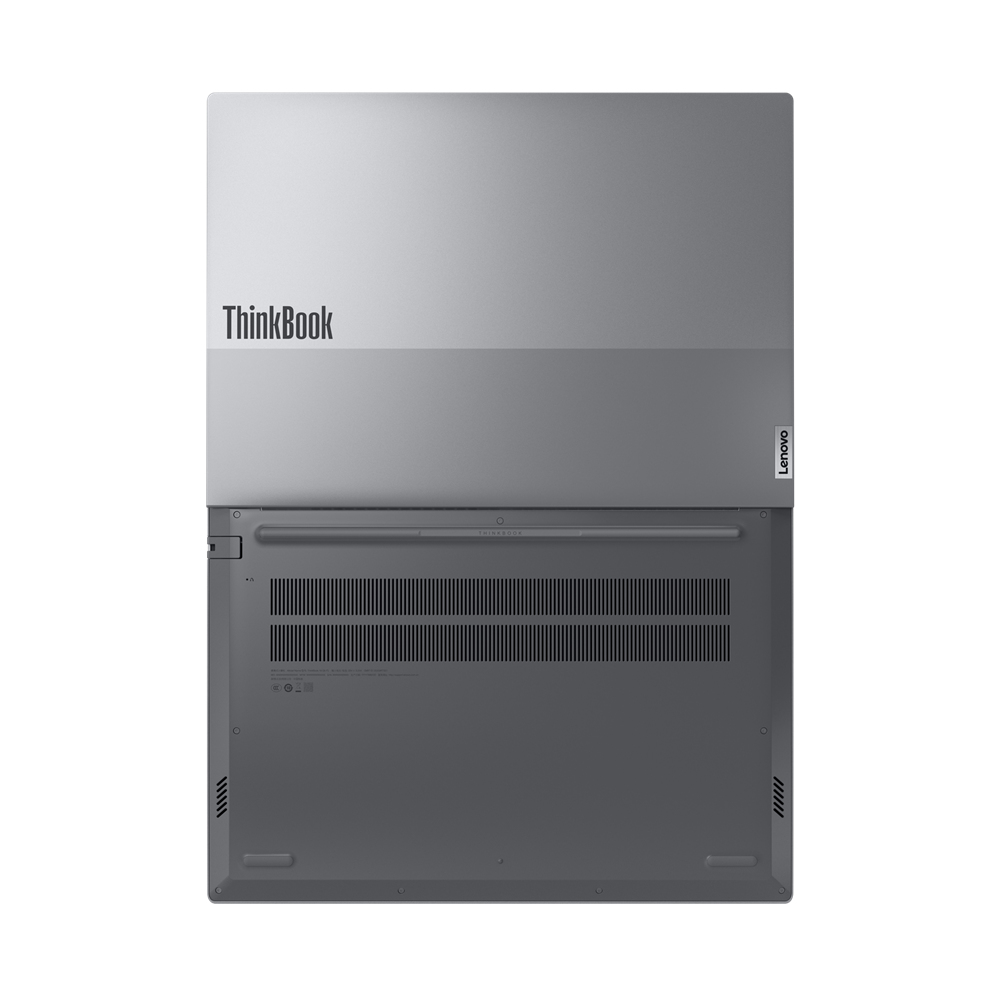

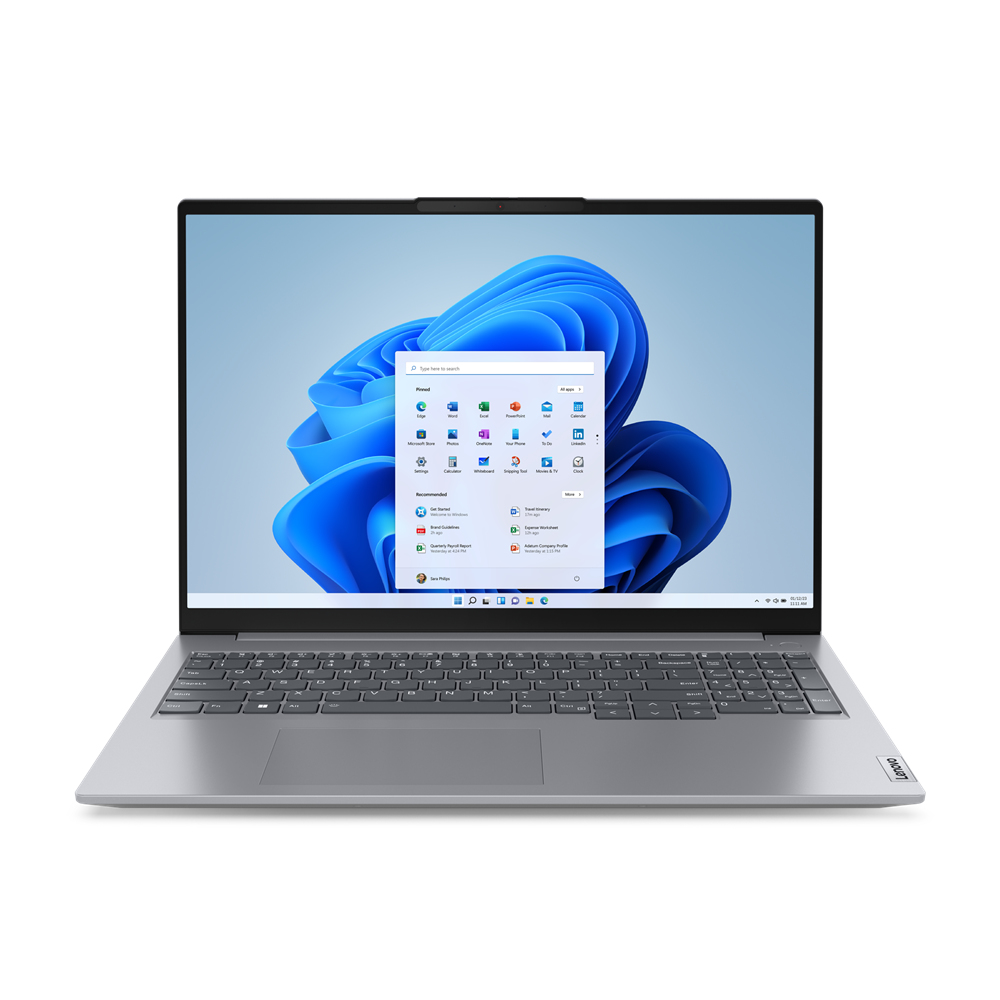

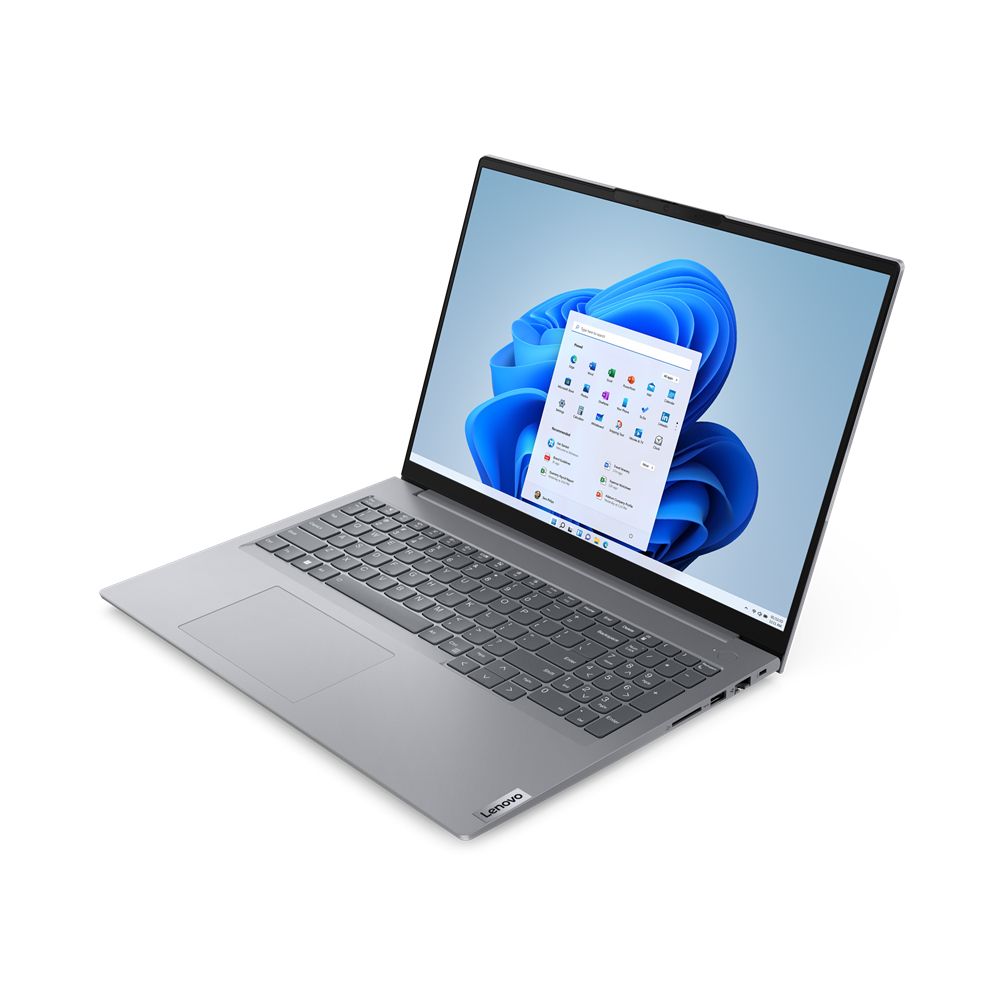

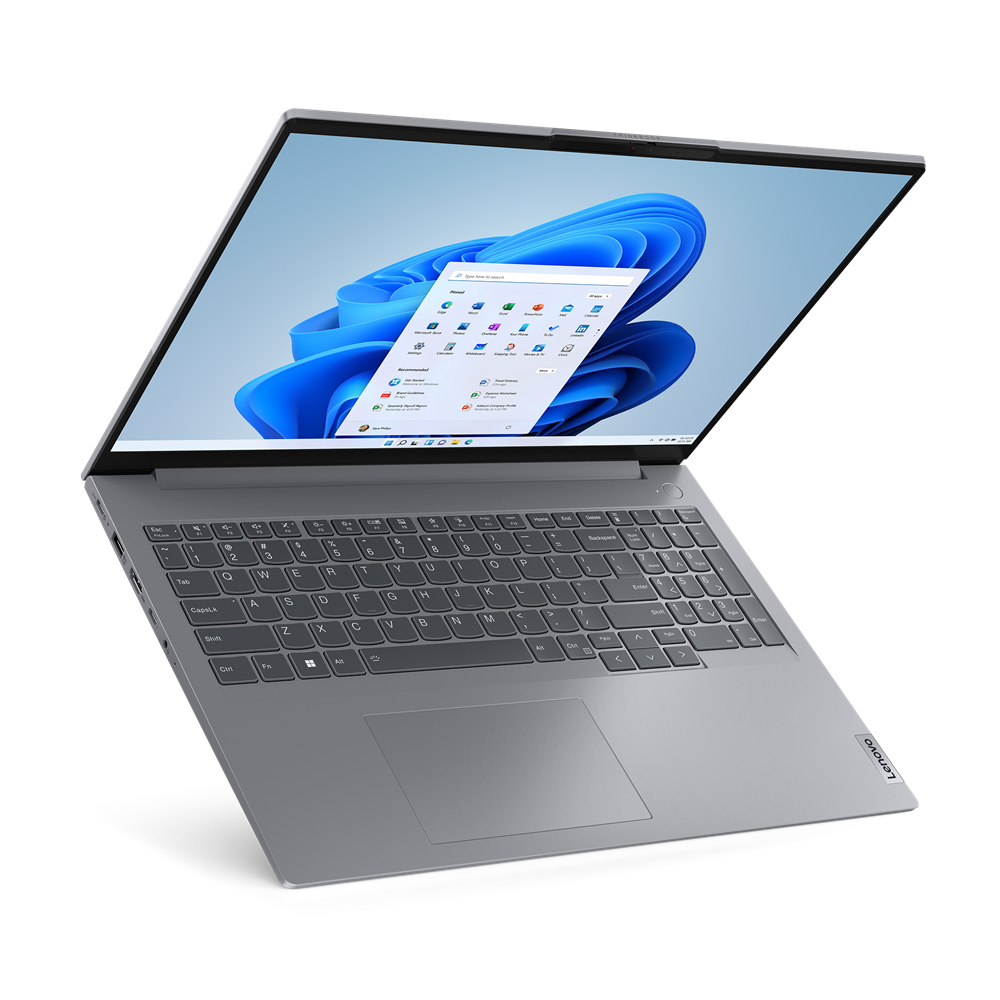

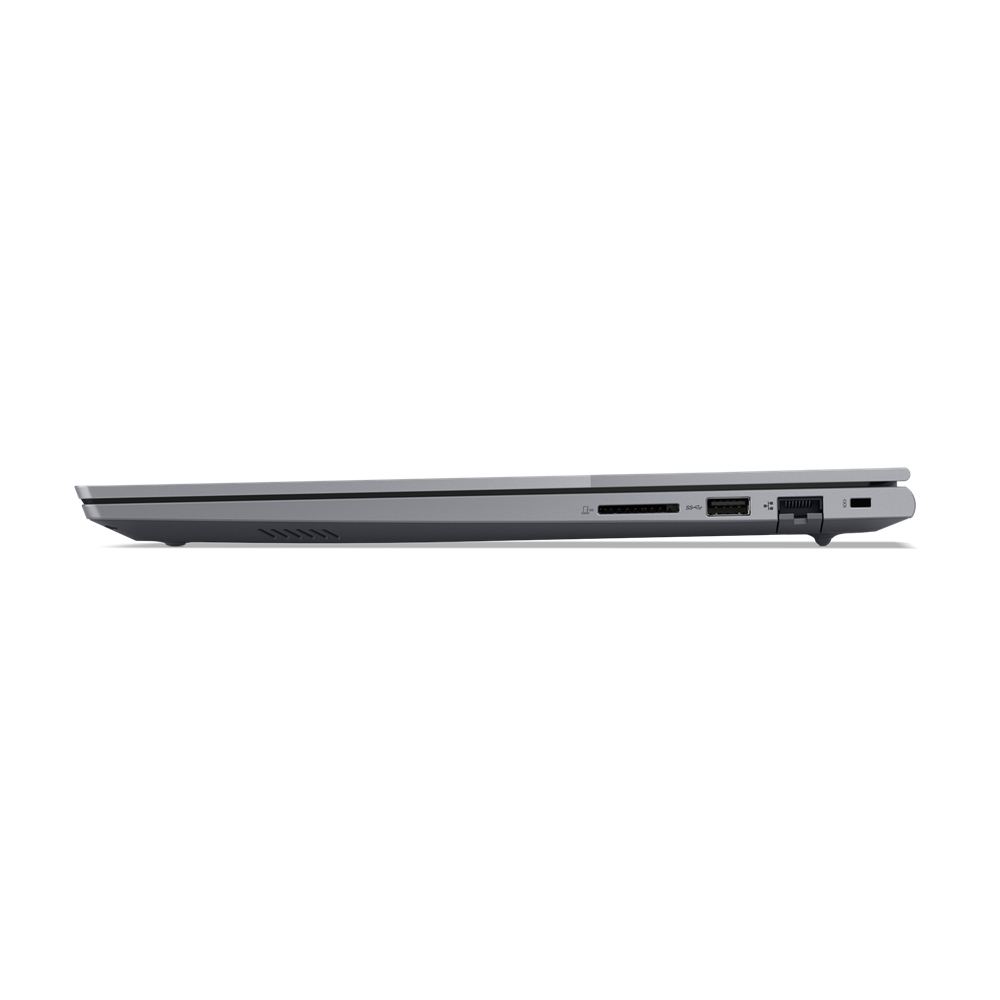

Lenovo ThinkBook 16 Intel® Core™ i3 i3-1315U Laptop

ThinkBook 16 Intel® Core™ i3 i3-1315U Laptop

40.6 cm (16") WUXGA 8 GB DDR5-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Pro Grey US English

Model 16Part no. 21KKCTO1WWUS1EAN 8435207808784

122 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i3
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i3
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: 16
Part numbers: 21KKCTO1WWUS1, 21KHS00F00, 21KHS00G00, 21MS0049SP 32GB 1TB, 21MS0044SP KD, 21KHCTO1WWUS1
EAN / UPC: 8435207808784, 8435207808678
Also known as: Lenovo ThinkBook 16 Intel® Core™ i3 i3-1315U Laptop 40.6 cm (16") WUXGA 8 GB DDR5-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Pro Grey US English

Specifications

122 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Arctic Grey
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS), Acrylonitrile styrene acrylate (ASA), Polycarbonate (PC)

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	Intel Core i3-13xxx
Processor model	i3-1315U
Processor cores	6
Processor boost frequency	4.5 GHz
Performance cores	2
Efficient cores	4
Performance-core Max Turbo Frequency	4.5 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Maximum turbo power	55 W
Processor base power	15 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2
WWAN	Not installed

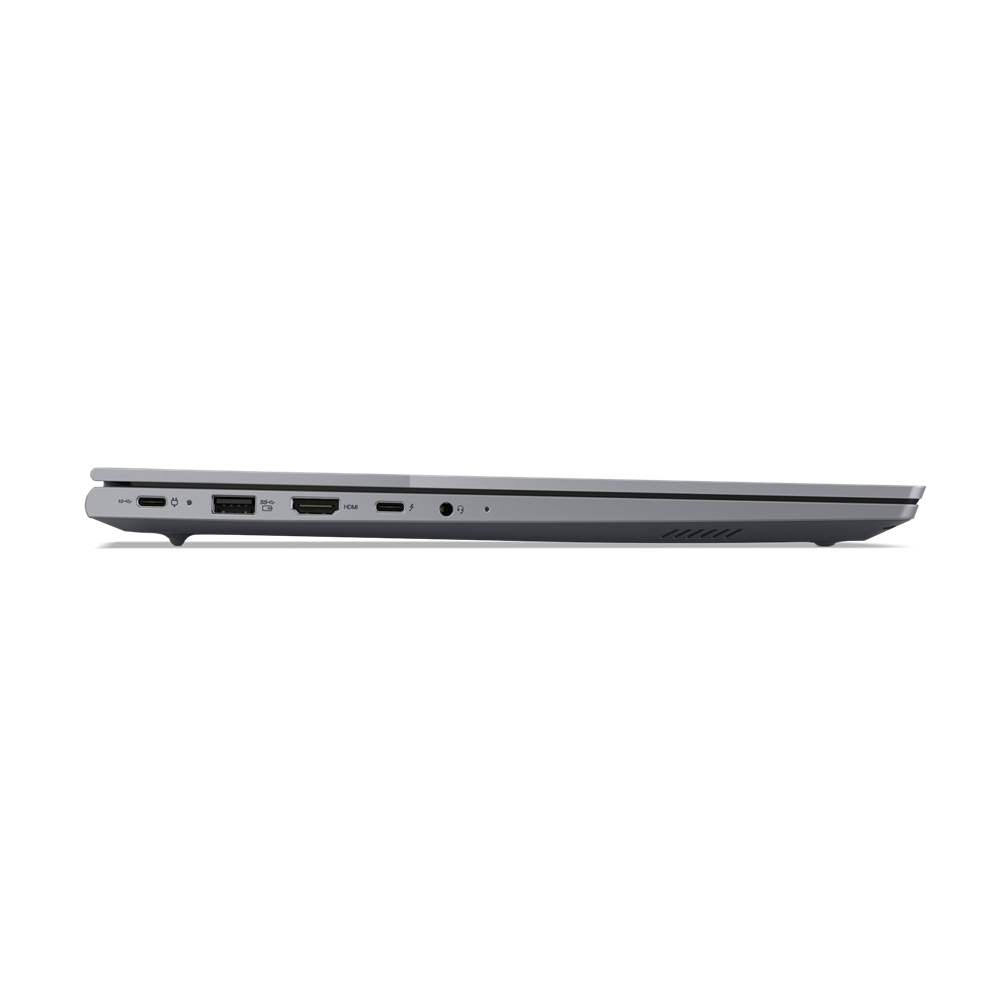

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard language	US English

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Office
Bundled software	Office Trial

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Fast charging	Yes

Power

Specification	Value
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	FSC certified package ErP Lot 6 ErP Lot 26 TCO Certified 9.0 TÜV Rheinland® Low Blue Light MIL-STD-810H

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Gold

Weight & dimensions

Specification	Value
Weight	1.7 kg
Width	356 mm
Depth	253.5 mm
Height	17.5 mm
