Lenovo 13 Win10 CH

Model 13 Win10 CHPart no. 20GKS0DA00EAN 190940226971

155 specifications Checked 2 days ago

Display33.8 cm (13.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
Battery42 Wh

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Battery: 42 Wh

Brand: Lenovo
Category: Laptop
Model: 13 Win10 CH
Part numbers: 20GKS0DA00, 20GKS0D900
EAN / UPC: 190940226971, 190940226964
Also known as: Lenovo ThinkPad 13 Win10 CH

Specifications

155 specifications in 18 groups

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
Native aspect ratio	16:9
Display surface	Matt
Dual-screen	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	6th gen Intel® Core™ i5
Processor model	i5-6200U
Processor cores	2
Processor threads	4
Processor boost frequency	2.8 GHz
Processor frequency	2.3 GHz
System bus rate	4 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
L3 cache	3 MB
Processor socket	LGA 1356 (Socket B2)
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-6200 series
Processor codename	Skylake
Bus type	QPI
Stepping	D1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-up	25 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x4, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2133 MHz
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Storage media	SSD
SSD capacity	256 GB
SSD interface	SATA III
SSD form factor	M.2
Optical drive type	No
Compatible memory cards	SDXC

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 520
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	1916
Maximum resolution	3840 x 2160 pixels

Camera

Specification	Value
Front camera	Yes
Front camera signal format	720p

Network

Specification	Value
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type	2x2
WLAN controller model	Intel Dual Band Wireless-AC 8260
Ethernet LAN data rates	1000 Mbit/s
Bluetooth version	4.1
WWAN	Not installed
LAN controller	Intel® I219-V

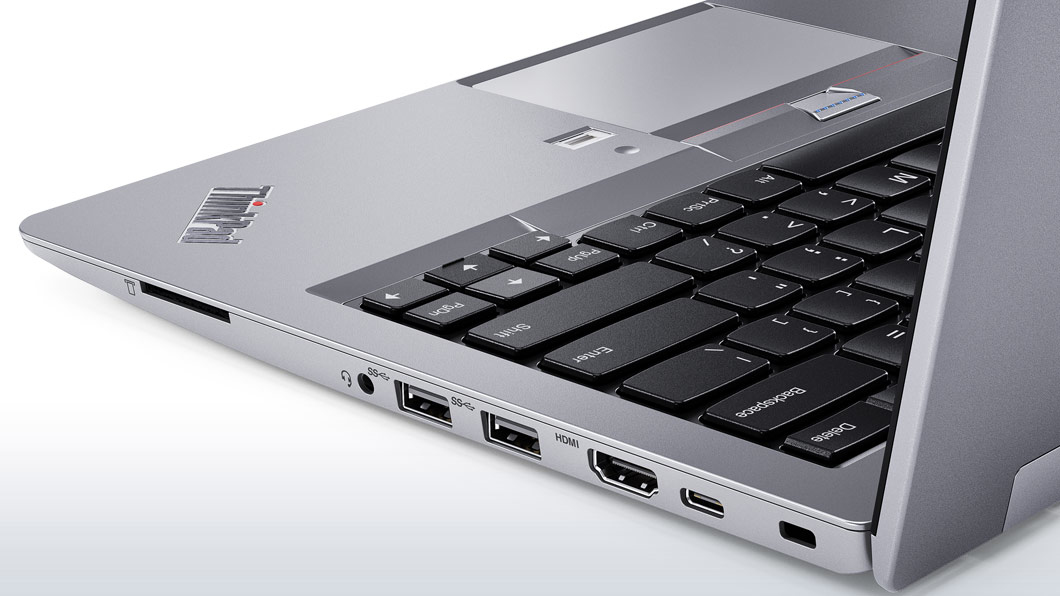

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	0
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Combo headphone/mic port	Yes
Docking connector	Yes
ExpressCard slot	No
SmartCard slot	No

Performance

Specification	Value
Motherboard chipset	Intel SoC
Accelerometer	No
Ambient light sensor	No
Electronic compass	No
GPS (satellite)	No
Gyroscope	No
Proximity sensor	No

Keyboard

Specification	Value
Pointing device	Touchpad + Pointing Stick
Keyboard backlit	No
Keyboard layout	QWERTZ
Keyboard language	Swiss
Number of pointing stick buttons	1
Number of touchpad buttons	3

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	88193
Processor code	SR2EY
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	3
Battery capacity	42 Wh

Power

Specification	Value
AC adapter power	45 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot type	Kensington
Fingerprint reader	No
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	1.4 kg
Width	332 mm
Depth	222 mm
Height (front)	1.9 cm
Height (rear)	2.4 cm

Packaging content

Specification	Value
Stylus pen	No

Other features

Specification	Value
L2 cache	512 KB
Number of WLAN antennas	2
Power adapter weight	170 g
