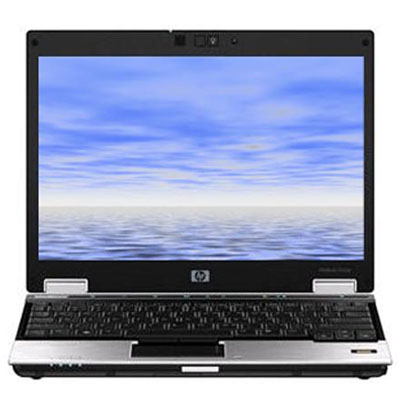

HP EliteBook XT956UT#ABA Intel® Core™2 Duo SL9400

30.7 cm (12.1") 4 GB DDR2-SDRAM 250 GB HDD Windows 7 Home Premium Black, Silver

Model XT956UT#ABAPart no. XT956UT

125 specifications Checked 3 days ago

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory4 GB
Storage250 GB
Battery55 Wh

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 4 GB
Storage: 250 GB
Battery: 55 Wh

Brand: HP
Category: Laptop
Model: XT956UT#ABA
Part number: XT956UT
Also known as: HP EliteBook XT956UT#ABA Intel® Core™2 Duo SL9400 30.7 cm (12.1") 4 GB DDR2-SDRAM 250 GB HDD Windows 7 Home Premium Black, Silver

Specifications

125 specifications in 21 groups

Design

Specification	Value
Product colour	Black, Silver
Country of origin	China

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
LED backlight	Yes
Native aspect ratio	16:10
External display	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	SL9400
Processor cores	2
Processor threads	2
Processor frequency	1.86 GHz
Processor cache	6 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Processor socket	BGA 956
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo SL9000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Thermal Design Power (TDP)	17 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	7.1
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	800 MHz
Memory slots	1x SO-DIMM
Memory slots (available)	2
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	250 GB
Storage media	HDD
Number of HDDs installed	1
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), SD

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card family	Intel® GMA
On-board graphics card model	Intel® GMA 4500MHD
Maximum graphics card memory	0.384 GB

Audio

Specification	Value
Built-in microphone	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.0+EDR
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
ExpressCard slot	Yes
Modem (RJ-11) ports	1
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® GS45 Express

Keyboard

Specification	Value
Keyboard backlit	No
Spill-resistant keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	32-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	36689
Processor package size	22 x 22 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	55 Wh
Battery life (max)	8.25 h

Power

Specification	Value
AC adapter power	65 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95%

Certificates

Specification	Value
Certification	RoHS, WEEE

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.45 kg
Width (imperial)	28.2 cm (11.1")
Depth (imperial)	20.6 cm (8.1")
Height (imperial)	2.54 cm (1")

Other features

Specification	Value
Power consumption (typical)	65 W
Power requirements	110 - 220 V
Intel segment tagging	Enterprise
Supplied AC adapter type	AC
