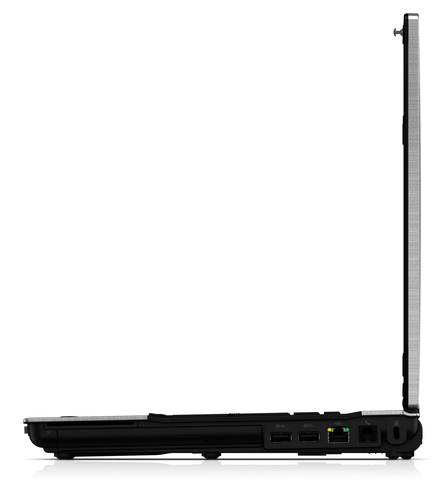

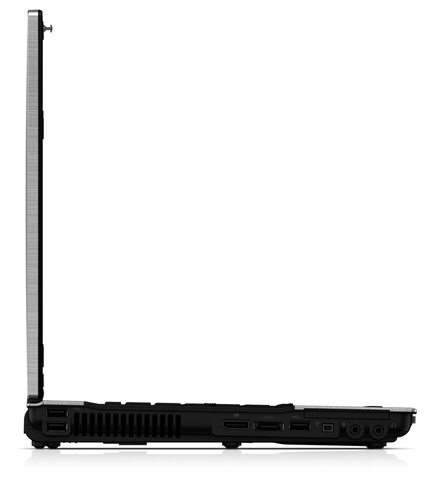

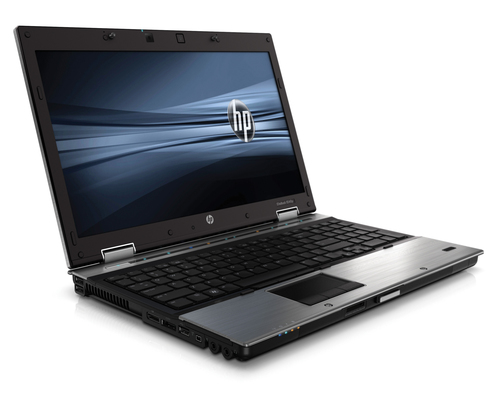

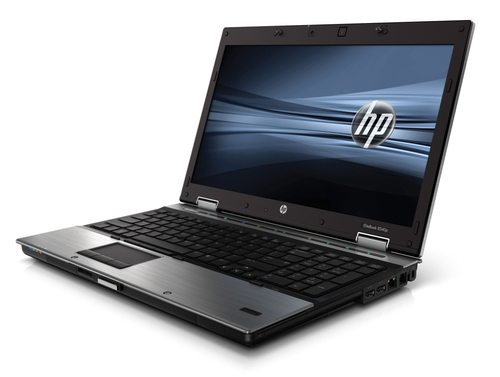

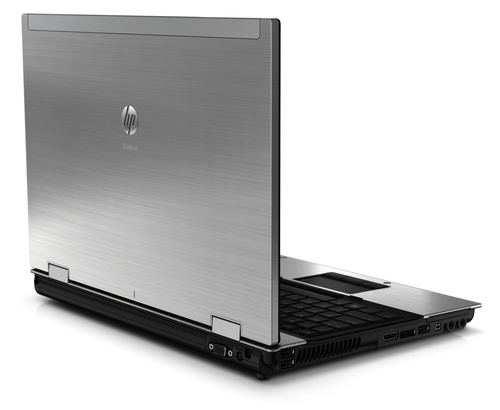

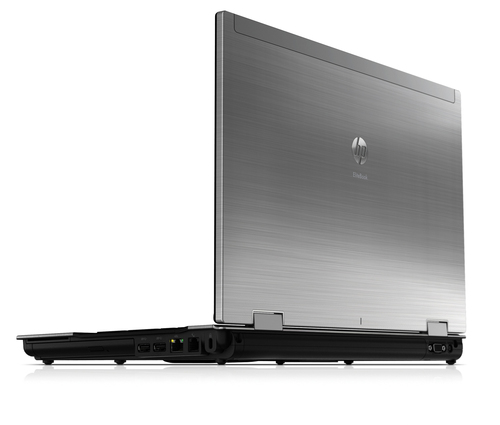

HP EliteBook XN713EA laptop Intel® Core™ i5 i5-560M

39.6 cm (15.6") 4 GB DDR3-SDRAM 320 GB NVIDIA® Quadro® NVS 5100M Windows 7 Professional Black, Grey

Model XN713EAPart no. XN713EA#ABHEAN 886111070206

150 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage320 GB
GraphicsNVIDIA® Quadro® NVS 5100M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 320 GB
Graphics: NVIDIA® Quadro® NVS 5100M

Brand: HP
Category: Laptop
Model: XN713EA
Part numbers: XN713EA#ABH, XN713EA
EAN / UPC: 886111070206, 886111070008, 886111070015, 886111070022 +16 more
Also known as: HP EliteBook XN713EA laptop Intel® Core™ i5 i5-560M 39.6 cm (15.6") 4 GB DDR3-SDRAM 320 GB NVIDIA® Quadro® NVS 5100M Windows 7 Professional Black, Grey

Specifications

150 specifications in 23 groups

Design

Specification	Value
Product colour	Black, Grey
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-560M
Processor cores	2
Processor threads	4
Processor boost frequency	3.2 GHz
Processor frequency	2.66 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1288
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-500 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	K0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	20
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory layout (slots x size)	2 x 2 GB
Memory slots	4x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	320 GB
Total HDDs capacity	320 GB
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA II
HDD speed	7200 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® NVS 5100M
Graphics card family	NVIDIA
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz

Audio

Specification	Value
Audio system	HDA
Number of built-in speakers	2

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Wi-Fi	Yes
Wireless technology	Centrino Advanced-N 6200
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.1+EDR
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® QM57 Express

Keyboard

Specification	Value
Pointing device	Touchpad + Pointing Stick
Keyboard number of keys	102

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	49653
Processor code	SLBTT
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	8
Battery capacity	68 Wh

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C

Certificates

Specification	Value
Wi-Fi certified	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.95 kg
Width	374 mm
Depth	252 mm
Height	32 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Power requirements	100/240V
Internal modem	Yes
TV tuner integrated	No
Modem speed	56 Kbit/s
Intel segment tagging	Enterprise
Supplied AC adapter type	AC
