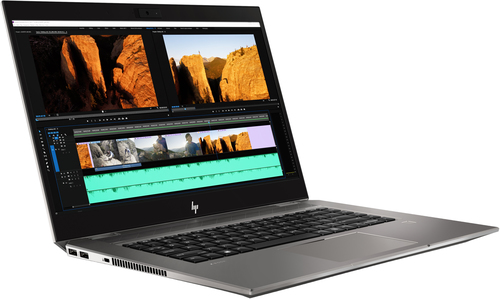

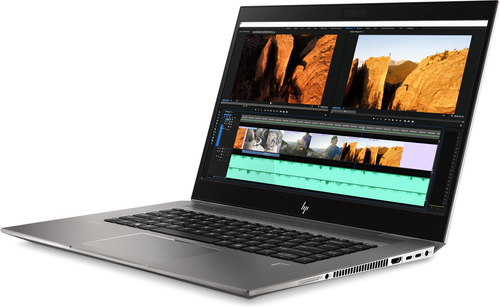

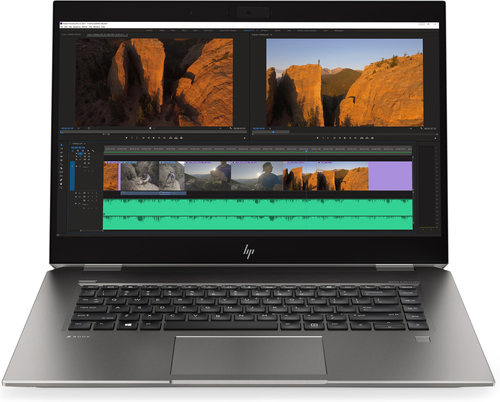

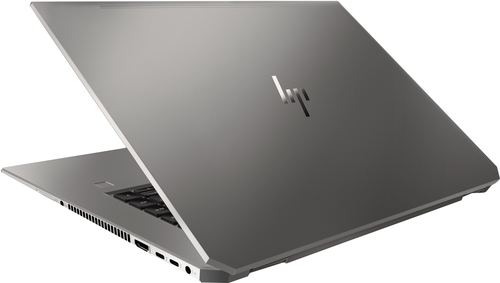

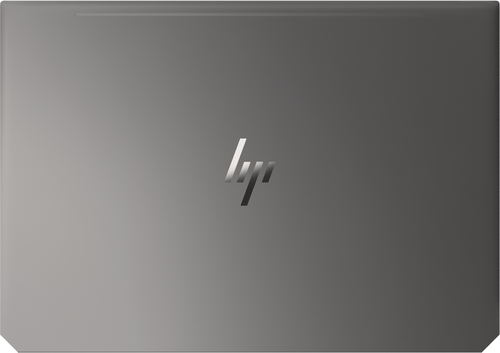

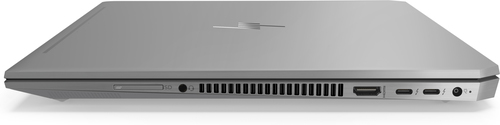

HP Studio G5
HP

Studio G5

Model Studio G5Part no. 4QH70EAEAN 192545743983

130 specifications Checked today
  • Display39.6 cm (15.6")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i7
  • Memory8 GB
  • Storage256 GB
  • GraphicsNVIDIA® Quadro® P1000
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i7
Memory
8 GB
Storage
256 GB
Graphics
NVIDIA® Quadro® P1000
Brand
HP
Category
Laptop
Model
Studio G5
Part numbers
4QH70EA, 4QH99EA, 4QH68ES, 4YL51UP#ABB, 5WD17UP, 5UC28EA +34 more
EAN / UPC
192545743983, 192545745048, 192545745055, 192545744126 +56 more
Also known as
HP ZBook Studio G5 Intel® Core™ i7 i7-8750H Mobile workstation 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® Quadro® P1000 Wi-Fi 5 (802.11ac) Windo

Specifications

130 specifications in 16 groups

Design

Product typeMobile workstation
Product colourSilver
Form factorClamshell
Country of originChina

Display

Display diagonal39.6 cm (15.6")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
Panel typeIPS
LED backlightYes
Native aspect ratio16:9

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation8th gen Intel® Core™ i7
Processor modeli7-8750H
Processor cores6
Processor threads12
Processor boost frequency4.1 GHz
Processor frequency2.2 GHz
System bus rate8 GT/s
Processor cache9 MB
Processor cache typeSmart Cache
Processor socketBGA 1440
Processor lithography14 nm
Processor operating modes64-bit
Processor codenameCoffee Lake
Bus typeDMI
SteppingU0
Thermal Design Power (TDP)45 W
Configurable TDP-down35 W
Configurable TDP-down frequency1.7 GHz
Tjunction100 °C
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 1x8+2x4, 2x8
PCI Express slots version3.0
ECC supported by processorNo

Memory

Internal memory8 GB
Internal memory typeDDR4-SDRAM
Memory clock speed2666 MHz
Memory form factorSO-DIMM
Memory layout (slots x size)1 x 8 GB
Memory slots2x SO-DIMM

Storage

Total storage capacity256 GB
Storage mediaSSD
Total SSDs capacity256 GB
Number of SSDs installed1
SSD capacity256 GB
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

On-board graphics cardYes
Discrete graphics cardYes
Discrete graphics card modelNVIDIA® Quadro® P1000
Discrete graphics card memory4 GB
Discrete graphics memory typeGDDR5
On-board graphics card familyIntel® UHD Graphics
On-board graphics card modelIntel® UHD Graphics 630
Maximum on-board graphics card memory64 GB
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1100 MHz
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.5
On-board graphics card ID0x3E9B

Audio

Audio systemBang & Olufsen
Number of built-in speakers2
Built-in microphoneYes
Number of microphones1

Camera

Front cameraYes
Front camera HD typeHD

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac)
BluetoothYes

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
Thunderbolt 3 ports quantity0
Combo headphone/mic portYes
USB Sleep-and-ChargeYes
USB Sleep-and-Charge ports1

Keyboard

Pointing deviceClickpad
Numeric keypadNo
Windows keysYes

Software

Operating system installedWindows 10 Pro
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID134906
Processor codeSR3YY
Processor package size42 x 28 mm
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes

Battery

Battery technologyLithium-Ion (Li-Ion)
Number of battery cells4
Battery capacity64 Wh

Power

AC adapter power150 W
DC-in jackYes

Weight & dimensions

Weight2 kg
Width360 mm
Depth224 mm
Height18.9 mm
