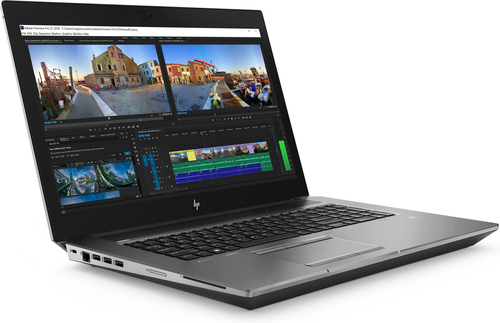

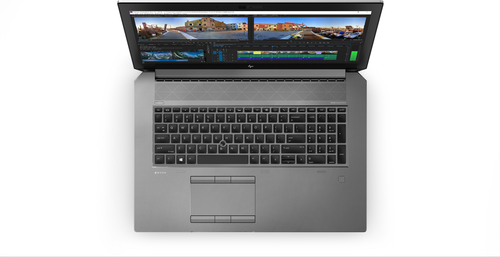

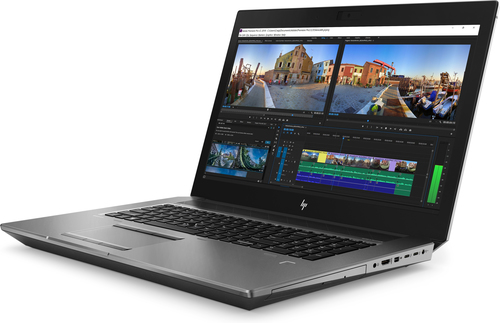

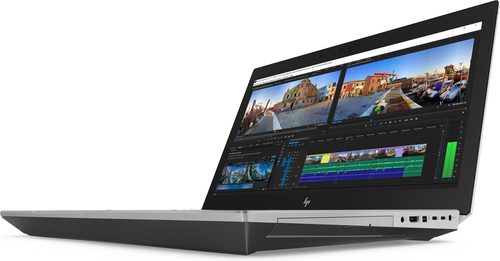

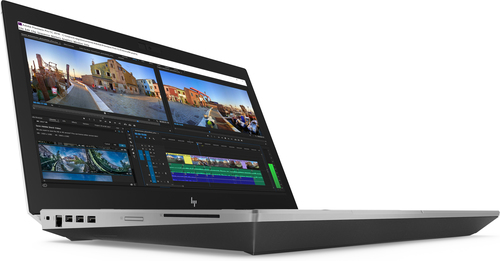

HP Station de travail mobile ZBook 17 G5

Model Station de travail mobile ZBook 17 G5Part no. 4QH61ESEAN 193015922426

130 specifications Checked 5 days ago

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorIntel Xeon E
Memory32 GB
Storage512 GB
GraphicsNVIDIA® Quadro® P4200

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: Intel Xeon E
Memory: 32 GB
Storage: 512 GB
Graphics: NVIDIA® Quadro® P4200

Brand: HP
Category: Laptop
Model: Station de travail mobile ZBook 17 G5
Part numbers: 4QH61ES, 4QH66ES
EAN / UPC: 193015922426, 193424174072
Also known as: HP ZBook Station de travail mobile 17 G5 Intel Xeon E E-2186M Mobile workstation 43.9 cm (17.3") Full HD 32 GB DDR4-SDRAM 512 GB SSD NVIDIA® Quadro® P4200 Windo

Specifications

130 specifications in 18 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Grey
Form factor	Clamshell
Country of origin	China

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	300 cd/m²
Dual-screen	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E
Processor model	E-2186M
Processor cores	6
Processor threads	12
Processor boost frequency	4.8 GHz
Processor frequency	2.9 GHz
System bus rate	8 GT/s
Processor cache	12 MB
Processor cache type	Smart Cache
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Bus type	DMI
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Configurable TDP-down frequency	2.4 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	2x8, 1x8+2x4
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory layout (slots x size)	4 x 8 GB
Memory slots	4x SO-DIMM

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
Card reader integrated	Yes
Compatible memory cards	SD, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® P4200
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR5
On-board graphics card model	Intel UHD Graphics P630
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x3E9B

Audio

Specification	Value
Number of built-in speakers	2
Speakers manufacturer	Bang & Olufsen
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	134859
Processor package size	42 x 28 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Brand-specific features

Specification	Value
HP segment	Business

Power

Specification	Value
AC adapter power	200 W

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	3.2 kg
Width	416 mm
Depth	288 mm
Height	33 mm

Packaging content

Specification	Value
AC adapter included	Yes
