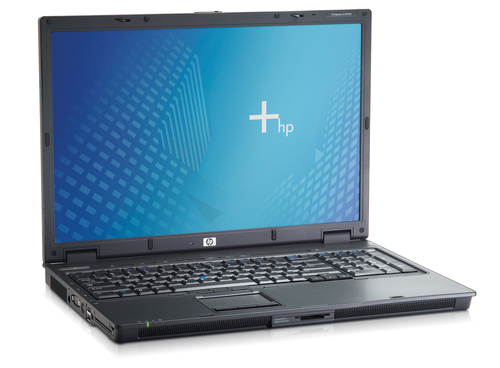

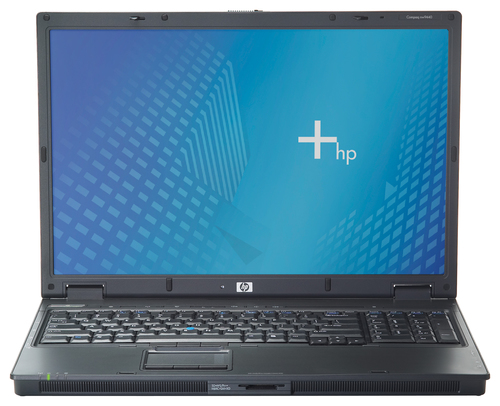

HP Compaq NW Compaq nw9440 Mobile Workstation

Model RN017AWEAN 882780842052

138 specifications Checked 3 days ago

Display43.2 cm (17")
ProcessorIntel® Core™2 Duo
Memory1 GB
Storage80 GB
GraphicsNVIDIA® Quadro® FX 1500M
OSWindows XP Professional

See all specifications

Overview

Display: 43.2 cm (17")
Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 80 GB
Graphics: NVIDIA® Quadro® FX 1500M
OS: Windows XP Professional

Brand: HP
Category: Laptop
Model: RN017AW
Part numbers: RN017AW, RN017AW#ABH
EAN / UPC: 882780842052, 882780841253, 882780841574, 882780841604 +16 more
Also known as: HP Compaq NW Compaq nw9440 Mobile Workstation

Specifications

138 specifications in 23 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	43.2 cm (17")
Panel type	TFT

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T7400
Processor cores	2
Processor threads	2
Processor frequency	2.16 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T7000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	B2
Thermal Design Power (TDP)	34 W
Tjunction	100 °C
Processor core voltage (AC)	1.0375 - 1.30 V
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	13
ECC supported by processor	No
Processor technology	Intel Centrino Duo

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 1 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB
Memory upgrade	4 GB

Storage

Specification	Value
Total storage capacity	80 GB
HDD speed	7200 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® FX 1500M
Maximum graphics card memory	0.5 GB

Audio

Specification	Value
Audio system	HP Premier Sound High Definition Audio 24-bit DAC, headphone jack, microphone jack, integrated microphone, Digital EQ, Advanced audio power management
Number of built-in speakers	2
Audio included	HP Premier Sound High Definition Audio 24-bit DAC, headphone jack, microphone jack, integrated microphone, Digital EQ, Advanced audio power management

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	Gigabit Ethernet, Wireless LAN
Wireless technology	Intel or Broadcom Wireless LAN 802.11 and/or Bluetooth 2.0 Intel Wireless LAN 802.11a/b/g MOW2 mini-pci card, Bluetooth, Y
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
I/O ports	4 USB 2.0 ports, VGA, headphone, microphone, AC adapter, RJ-11, RJ-45, S-video TV out, Firewire (1394a)
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945PM Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard layout	QWERTY
Keyboard type	Full-sized

Software

Specification	Value
Operating system installed	Windows XP Professional
Downloadable software	HP Client Manager
Bundled software	Additional software available from the Web: HP Client Manager Software Adobe Acrobat Reader, HP Backup and Recovery Manager, HP Help and Support Center, HP Mobile Printing Driver, HP ProtectTools Security Manager, HP Quick Launch Buttons, HP Wireless Assi
Compatible operating systems	FreeDOS, Windows 2000 drivers available on www.hp.com, Windows Vista capable, Windows Vista Premium ready

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27256
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	8

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Security management description	Kensington lock, Integrated Smart Card Reader

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Certificates

Specification	Value
Certification	MCAD: AutoDesk AutoCAD, AutoDesk Inventor, Bentley MicroStation, Dassault CATIA V5, I-DEAS 10, I-DEAS 11, Unigraphics NX, Unigraphics NX2, Unigraphics NX3, PTC Pro/Engineer/Mechanica 2001, PTC Pro/Engineer/Mechanica Wildfire, SolidWorks, Solid Edge, MSC.P

Weight & dimensions

Specification	Value
Weight	3.4 kg
Width	393 mm
Depth	275 mm
Height	33 mm
Dimensions (WxDxH)	33 x 393 x 275 mm

Video

Specification	Value
Video card features	NVIDIA Quadro FX 1500M

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Security features	HP ProtectTools HP DriveLock HP TPM Embedded Security chip
Infrared data port	No
Power management	8-cell Lithium-Ion, secondary 8-cell HP Extended Life Battery (sold separately)
Power requirements	External 65W Smart AC adapter 8-cell Lithium-Ion battery internal
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	56K
Docking solution	HP Advanced Docking Station, HP External MultiBay II cradle, HP Adjustable Notebook Stand (all sold separately)
Expansion slots	Slots available for additional devices: 1 Type I/II PC Card slot supports both 32-bit CardBus and 16-bit cards, 7 in 1 media reader
Multi-bay devices	Optional external Multibay II devices
Protection tools	HP ProtectTools, HP DriveLock, HP TPM Embedded Security Chip, HP Biometric Fingerprint Sensor (optional)
Supplied AC adapter type	AC
