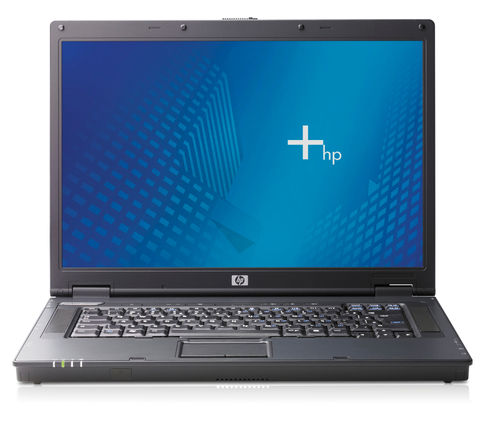

HP Compaq nw8240 Mobile Workstation

Model PG818EAEAN 829160893488

115 specifications Checked 3 days ago

Display39.1 cm (15.4")
Resolution1920 x 1200 pixels
ProcessorIntel Pentium Mobile
Memory1 GB
Storage80 GB
GraphicsAMD Mobility FireGL V5000

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1920 x 1200 pixels
Processor: Intel Pentium Mobile
Memory: 1 GB
Storage: 80 GB
Graphics: AMD Mobility FireGL V5000

Brand: HP
Category: Laptop
Model: PG818EA
Part numbers: PG818EA, PG818EA#ABH
EAN / UPC: 829160893488, 829160893372, 829160893389, 829160893396 +8 more
Also known as: HP Compaq nw8240 Mobile Workstation

Specifications

115 specifications in 18 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	770
Processor cores	1
Processor threads	1
Processor frequency	2.13 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	533 MHz
Processor socket	Socket 479
Processor lithography	90 nm
Processor operating modes	32-bit
Processor series	Intel Pentium M 700 Series
Processor codename	Dothan
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	27 W
Tjunction	100 °C
Number of Processing Die Transistors	144 M
Processing Die size	87 mm²
CPU multiplier (bus/core ratio)	16
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory slots	2x SO-DIMM
Maximum internal memory	2 GB
Memory upgrade	2 GB

Storage

Specification	Value
Total storage capacity	80 GB
HDD speed	5400 RPM

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility FireGL V5000
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	HP Premier•Sound 16-bit

Network

Specification	Value
Networking features	NetXtreme Gigabit (10/100/1000 NIC) PCI Express Ethernet
Wireless technology	Intel LAN 802.11b/g, Bluetooth

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	1
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 915PM Express

Keyboard

Specification	Value
Pointing device	Touchpad + Pointing Stick
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	HP One-Touch Button Software HP Mobile Print Driver Synaptics Touchpad Driver HP Help & Support HP Wireless Assistant Sonic RecordNow! InterVideo WinDVD - DVD Player InterVideo WinDVD Creator – DVD Authoring; HP Client Manager Software Smart Card Security for HP ProtectTools

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	27597
Processor code	SL868
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Battery life (max)	4 h

Power

Specification	Value
DC-in jack	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Weight	2.77 kg
Dimensions (WxDxH)	356 x 264 x 28 mm

Other features

Specification	Value
Infrared data port	Yes
Battery type	8-cell
Power requirements	90W AC
Wake-on-LAN ready	No
Wake-on-Ring ready	No
Internal modem	Yes
Modem speed	56 Kbit/s
Expansion slots	1 Type I/II PCMCIA
