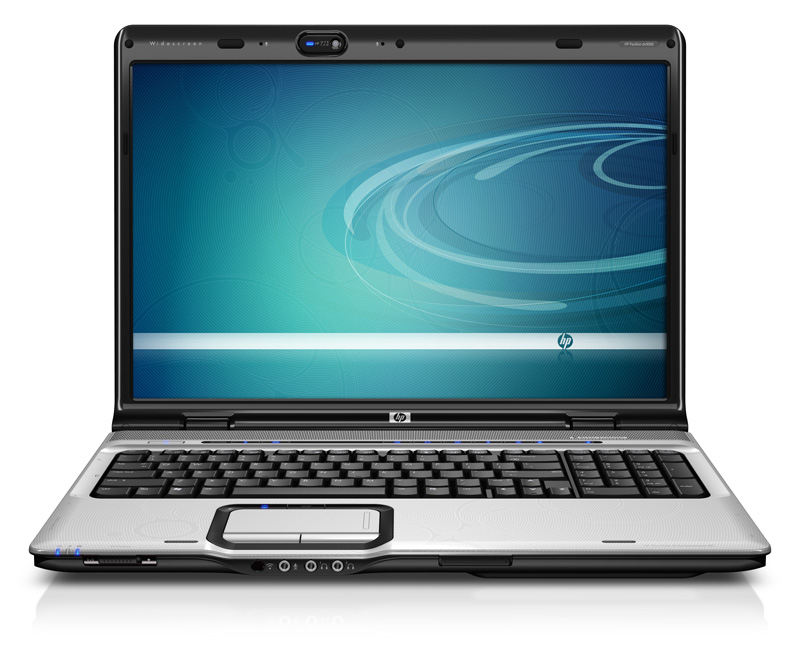

HP Pavilion dv9683es Media Center

Model Pavilion dv9683es Media CenterPart no. GY415EA

111 specifications Checked 3 days ago

Display43.2 cm (17")
Resolution1440 x 900 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage250 GB
GraphicsNVIDIA® GeForce® 8400M GS

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1440 x 900 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 250 GB
Graphics: NVIDIA® GeForce® 8400M GS

Brand: HP
Category: Laptop
Model: Pavilion dv9683es Media Center
Part number: GY415EA
Also known as: HP Pavilion dv9683es Media Center Intel® Core™2 Duo T7500 43.2 cm (17") 2 GB DDR2-SDRAM 250 GB NVIDIA® GeForce® 8400M GS Windows Vista Home Premium

Specifications

111 specifications in 17 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1440 x 900 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T7500
Processor cores	2
Processor threads	2
Processor frequency	2.2 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T7000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	E1
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	11
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 1 GB
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD speed	5400 RPM
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 8400M GS
Discrete graphics card memory	0.125 GB
Maximum graphics card memory	0.895 GB

Audio

Specification	Value
Audio system	3D Sound Blaster Pro
Number of built-in speakers	2

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Networking features	Ethernet, Fast Ethernet
Wireless technology	IEEE 802.11a/b/g
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows Vista Home Premium

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	29761
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	8

Power

Specification	Value
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	3.55 kg
Width	396 mm
Depth	285 mm
Height (front)	3.16 cm
Height (rear)	4.18 cm

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Supplied AC adapter type	AC
