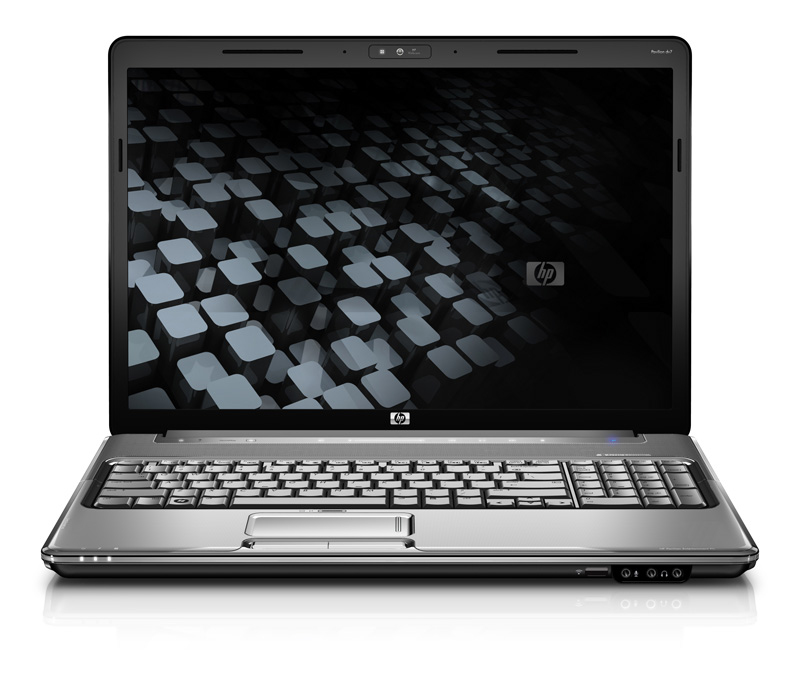

HP Pavilion dv7-1202ef

Model Pavilion dv7-1202efPart no. NG403EA

109 specifications Checked 3 days ago

Display43.2 cm (17")
Resolution1440 x 900 pixels
ProcessorIntel Pentium Mobile
Memory3 GB
Storage160 GB
GraphicsNVIDIA® GeForce® 9200M GS

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1440 x 900 pixels
Processor: Intel Pentium Mobile
Memory: 3 GB
Storage: 160 GB
Graphics: NVIDIA® GeForce® 9200M GS

Brand: HP
Category: Laptop
Model: Pavilion dv7-1202ef
Part number: NG403EA
Also known as: HP Pavilion dv7-1202ef Intel Pentium Mobile T4200 43.2 cm (17") 3 GB DDR2-SDRAM 160 GB NVIDIA® GeForce® 9200M GS Windows Vista Home Premium

Specifications

109 specifications in 17 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1440 x 900 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	T4200
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium T4000 Series for Mobile
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	160 GB
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 9200M GS
Maximum graphics card memory	1.79 GB

Audio

Specification	Value
Audio system	3D Sound Blaster Pro
Number of built-in speakers	2

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Networking features	Gigabit Ethernet
Wireless technology	IEEE 802.11b/g
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows Vista Home Premium

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37251
Processor code	SLGJN
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	8

Power

Specification	Value
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	3.46 kg
Width	396 mm
Depth	285 mm
Height	45 mm

Other features

Specification	Value
Infrared data port	Yes
Internal modem	No
Supplied AC adapter type	AC
