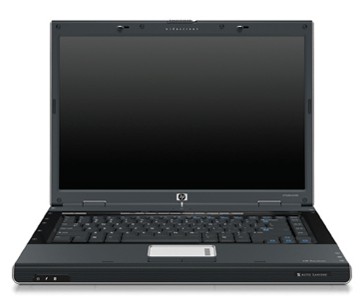

HP Pavilion dv5148ea Notebook PC

Model Pavilion dv5148ea Notebook PCPart no. EW788EA#ABH

119 specifications Checked 2 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Core™ Solo
Memory1 GB
Storage80 GB
OSWindows XP Home Edition

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™ Solo
Memory: 1 GB
Storage: 80 GB
OS: Windows XP Home Edition

Brand: HP
Category: Laptop
Model: Pavilion dv5148ea Notebook PC
Part numbers: EW788EA#ABH, EW788EA
Also known as: HP Pavilion dv5148ea Notebook PC Intel® Core™ Solo T1300 39.1 cm (15.4") 1 GB DDR2-SDRAM 80 GB Windows XP Home Edition QWERTY

Specifications

119 specifications in 18 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ Solo
Processor model	T1300
Processor cores	1
Processor threads	1
Processor frequency	1.66 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	32-bit
Processor series	Intel Core Solo T1000 Series
Processor codename	Yonah
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	27 W
Scenario Design Power (SDP)	0 W
Tjunction	100 °C
Number of Processing Die Transistors	151 M
Processing Die size	90 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 0.5 GB
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	80 GB
HDD interface	SATA
HDD speed	5400 RPM
Compatible memory cards	SD, xD

Graphics

Specification	Value
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	3D Sound Blaster Pro compatible
Number of built-in speakers	2
Speakers manufacturer	Altec Lansing

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	Fast Ethernet, Wireless LAN
Ethernet LAN data rates	10,100 Mbit/s

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	0
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	101
Windows keys	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows XP Home Edition
Bundled software	HP QuickPlay Microsoft Works 8.0 Microsoft AutoRoute 2006 Microsoft Encarta Encyclopedia 2006 Microsoft Digital Image 2006 Microsoft Internet Explorer 6.0 Microsoft Outlook Express Adobe Reader 6.0 Sonic Digital MediaPlus: - Sonic RecordNow - Sonic MyDVD - Sonic Easy Archive - Sonic Express Labeler;
Compatible operating systems	Microsoft Windows XP Home Edition

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	32 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	27242
Processor code	SL8VY
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Power

Specification	Value
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	2.98 kg
Width	367.8 mm
Depth	263.9 mm
Height	35 mm

Packaging data

Specification	Value
Package dimensions (WxDxH)	435 x 188 x 355 mm
Package weight	5.8 kg

Packaging content

Specification	Value
AC adapter included	Yes
Remote control included	Yes

Other features

Specification	Value
Infrared data port	Yes
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	Data/Fax
Expansion slots	1x Card reader 6-in-1 1x ExpressCard/54
