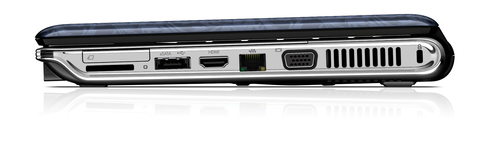

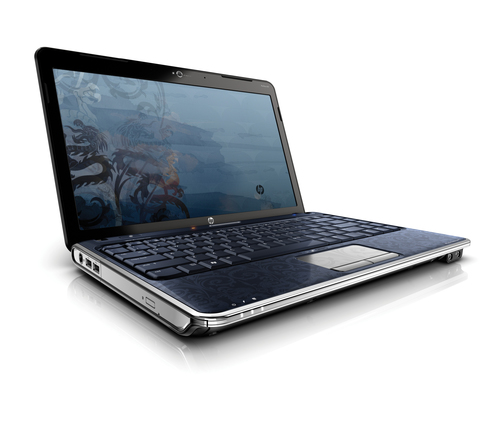

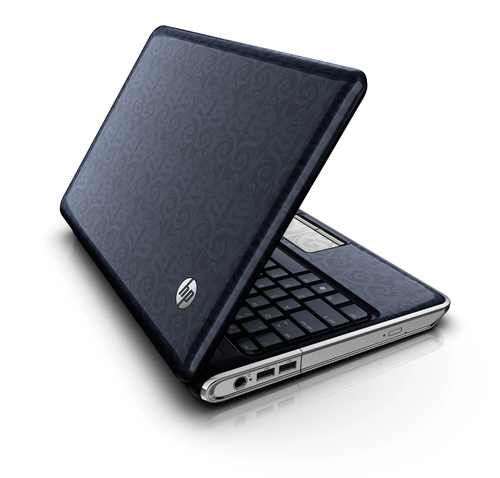

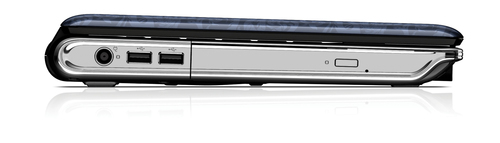

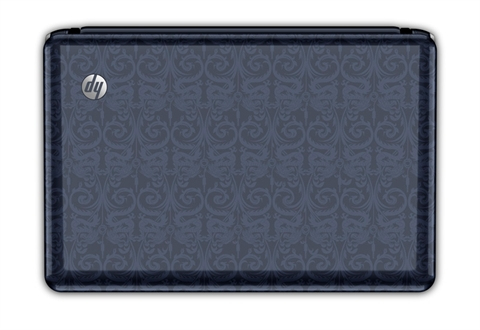

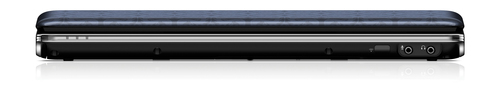

HP Pavilion dv3-2230ea Entertainment Notebook PC

Model Pavilion dv3-2230ea Entertainment Notebook PCPart no. VJ353EAEAN 884962358962

131 specifications Checked 2 days ago

Display33.8 cm (13.3")
Resolution1366 x 768 pixels
ProcessorIntel® Core™2 Duo
Memory4 GB
Storage320 GB
GraphicsNVIDIA® GeForce® G105M

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™2 Duo
Memory: 4 GB
Storage: 320 GB
Graphics: NVIDIA® GeForce® G105M

Brand: HP
Category: Laptop
Model: Pavilion dv3-2230ea Entertainment Notebook PC
Part number: VJ353EA
EAN / UPC: 884962358962
Also known as: HP Pavilion dv3-2230ea Entertainment Notebook PC Intel® Core™2 Duo T6600 33.8 cm (13.3") 4 GB DDR2-SDRAM 320 GB NVIDIA® GeForce® G105M Windows 7 Home Premium Bl

Specifications

131 specifications in 22 groups

Design

Specification	Value
Product colour	Black
Country of origin	China

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T6600
Processor cores	2
Processor threads	2
Processor frequency	2.2 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 478
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T6000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	35 W
Tjunction	90 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	11
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 2 GB
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® G105M
Discrete graphics card memory	0.512 GB
Maximum graphics card memory	2.302 GB

Audio

Specification	Value
Number of built-in speakers	2

Optical drive

Specification	Value
LightScribe	Yes
Optical drive interface	SATA

Network

Specification	Value
Networking features	Gigabit Ethernet
Wireless technology	IEEE 802.11b/g
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
I/O ports	3 USB 2.0 (3rd shared with eSATA port), 1 HDMI connector, 1 eSata + USB connector, 1 VGA port, 1 RJ45 ethernet connector, 1 headphones-out, 1 mic-in, consumer ir

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard type	101 key compatible

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Bundled software	Recovery partition (including possibility to recover system, applications and drivers separately); Optional re-allocation of recovery partition; Recovery CD/DVD creation tool; Symantec Norton Internet Security 2009 (60 days live update); Notebook Help & Support Microsoft Internet Explorer; Windows L

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37255
Processor code	SLGF5
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	2.13 kg
Width	327 mm
Depth	221 mm
Height (front)	3.18 cm
Height (rear)	3.53 cm
Dimensions (WxDxH)	327 x 221 x 31.8 mm

Packaging data

Specification	Value
Package dimensions (WxDxH)	455 x 110 x 345 mm
Package weight	3.9 kg

Hard drive

Specification	Value
Storage drive controller	SATA Hard Disk Drive
Storage drive partition	up to 12 GB partition for system recovery

Video

Specification	Value
Video card features	Up to 2302 MB total graphics memory with 512 MB dedicated

Packaging content

Specification	Value
Remote control included	Yes

Other features

Specification	Value
Security features	32.7 cm x 22.1 cm x 3.18 cm (min H) / 3.53 cm (max H)
Infrared data port	Yes
Battery type	6-cell Lithium-Ion (Li-Ion) battery
Chassis type	Rhett 1.1
Power supply type	90W AC
Special features	with HP ProtectSmart Hard Drive Protection
Internal modem	No
Driver software for optical drive	HP TouchSmart, HP Total Care Setup, HP Total Care Advisor, HP ProtectSmart, Cyberlink DVD Suite; Windows Media center, Windows Mail; HP Games Console with hours of free game play, Norton Online Backup (30-day trial)
Expansion slots	1 ExpressCard/34 Slot
Supplied AC adapter type	AC
