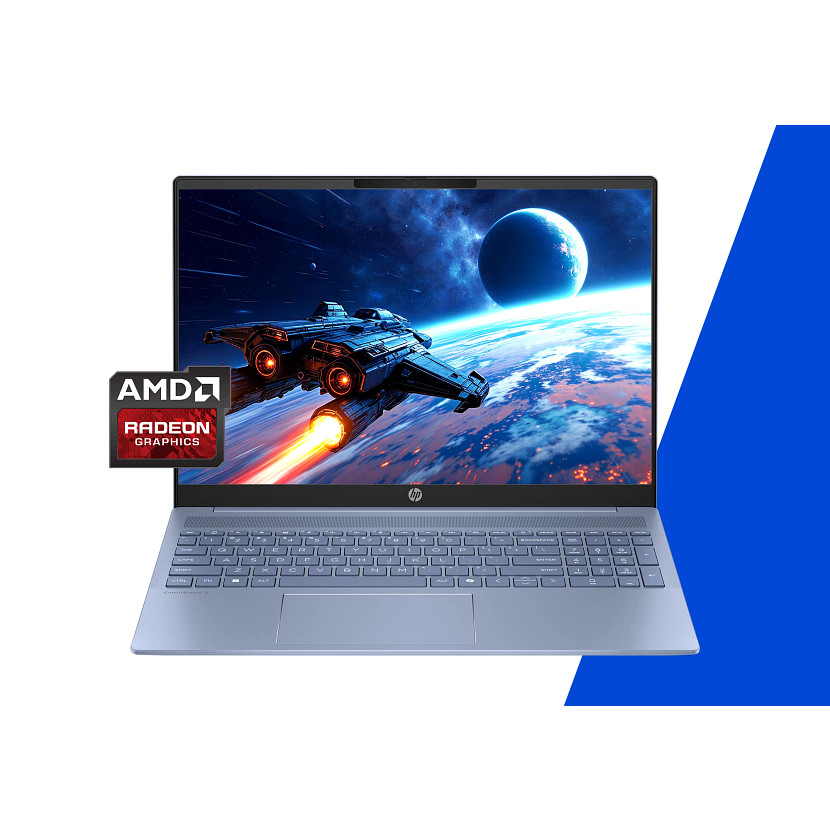

HP OmniBook 5 Next Gen AI 16-ag1002na

OmniBook 5 Next Gen AI 16-ag1002na

Model OmniBook 5 Next Gen AI 16-ag1002naPart no. BR3H1EAEAN 199251496875

141 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorAMD Ryzen™ AI 5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: AMD Ryzen™ AI 5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: HP
Category: Laptop
Model: OmniBook 5 Next Gen AI 16-ag1002na
Part number: BR3H1EA
EAN / UPC: 199251496875
Also known as: HP OmniBook 5 NGAI OmniBook 5 Next Gen AI 16-ag1002na Copilot+ PC AMD Ryzen™ AI 5 340 Laptop 40.6 cm (16") 2K 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax)

Specifications

141 specifications in 26 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Colour name	Sky blue
Form factor	Clamshell
Market positioning	Everyday
Introduction year	2025
Country of origin	China
Original brand name	HP

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	2K
Panel type	IPS
Native aspect ratio	16:10
Anti-glare screen	Yes
Display bezel technology	Micro-Edge
Display brightness	300 cd/m²
Colour gamut	62.5%
Display diagonal (metric)	40.6 cm
RGB colour space	sRGB
sRGB coverage (typical)	62.5%

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ AI 5
Processor generation	AMD Ryzen AI 300 Series
Processor model	340
Processor cores	6
Processor threads	12
Processor boost frequency	4.8 GHz
Processor frequency	2 GHz
Processor cache	16 MB
Processor cache type	L3

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	Yes
Neural processor unit (NPU)	AMD Ryzen AI
NPU performance up to	50 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	7500 MHz
Memory form factor	On-board
Memory layout (slots x size)	Not available
Memory slots (available)	0
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon Graphics
On-board graphics card model	AMD Radeon 840M
AMD FreeSync	Yes

Audio

Specification	Value
Audio system	DTS:X Ultra
Built-in speaker(s)	Yes
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels

Network

Specification	Value
Mobile network connection	No
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Realtek
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
Microphone in	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	2

Performance

Specification	Value
Motherboard chipset	AMD SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Full-size keyboard	Yes
Keyboard colour name	Darker sky blue opaque

Software

Specification	Value
Operating system installed	Windows 11 Home
Pre-installed software	Copilot in Windows with Copilot key, 1 month trial for new Microsoft 365 customers, McAfee Online Protection 30-day trial; 1-month Adobe free trial offer; PC Game Pass 3-month trial
Trial software	100 GB Dropbox storage for 3 months

Brand-specific features

Specification	Value
HP Audio Boost	Yes
HP speaker type	HP Dual Speakers
HP Imagepad	Yes
HP front camera	HP TrueVision FHD
HP Security tools	Mic mute key; Camera privacy shutter; Trusted Platform Module (Firmware TPM) support
HP Software provided	HP Support Assistant; HP Connection Optimizer; HP AI Companion
HP segment	Home
HP GTIN (EAN/UPC)	199251496875

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	3
Battery capacity	59 Wh
Battery life (max)	14.75 h
Continuous video playback time (max)	16.75 h
Fast charging	Yes
Fast charging time (50%)	30 min

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, Power on

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT, EPEAT Gold
Sustainable technologies and materials	Ocean-bound plastic in speaker enclosure(s) and bezel; Keyboard keycaps and scissors contain post-consumer recycled plastic; Recycled metal in cover, keyboard frame, sideband and hinge cap(s)
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Weight	1.79 kg
Width	357.7 mm
Depth	254.8 mm
Height (front)	1.79 cm
Height (rear)	1.86 cm

Packaging data

Specification	Value
Package width	63 mm
Package depth	504 mm
Package height	305 mm
Package weight	2.52 kg

Carbon footprint

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	0.526
Carbon emissions, logistics (kg of CO2e)	4.617
Carbon emissions, manufacturing (kg of CO2e)	156.308
Total carbon emissions, w/o use phase (kg of CO2e)	9.569
Total carbon footprint (kg of CO2e)	171.02

Packaging content

Specification	Value
AC adapter included	Yes
Keyboard included	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	8471300000

Other features

Specification	Value
Manufacturer warranty	1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Supplied AC adapter type	Paint finish
UNSPSC-code	43211503

Technical details

Specification	Value
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true ; HP REG 23010, 08028 Barcelona, Spain ; reg@hp.com
