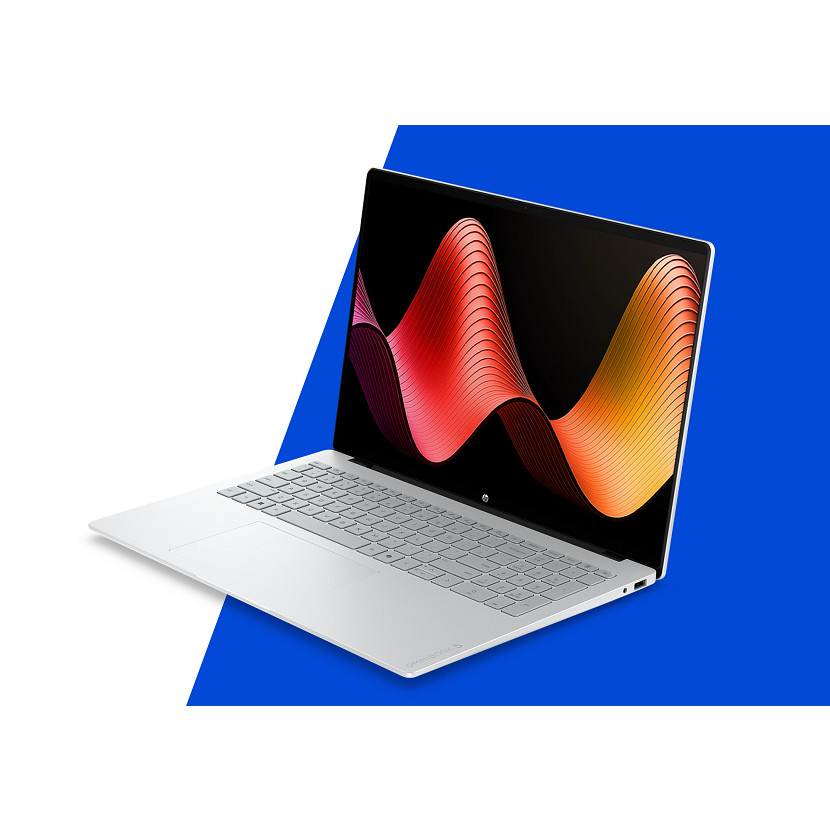

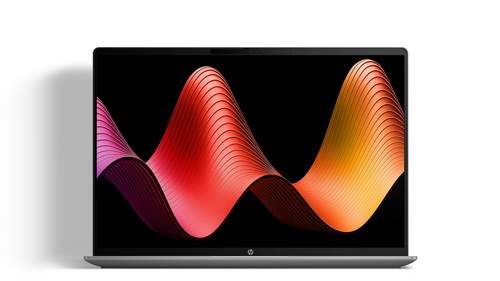

HP OmniBook 5 16-bn0000nax

OmniBook 5 16-bn0000nax

Model OmniBook 5 16-bn0000naxPart no. D8XC8EAEAN 821844538739

144 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorIntel Core 5
Memory16 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: Intel Core 5
Memory: 16 GB
Storage: 256 GB
Graphics: Not available

Brand: HP
Category: Laptop
Model: OmniBook 5 16-bn0000nax
Part number: D8XC8EA
EAN / UPC: 821844538739
Also known as: HP OmniBook 5 16-bn0000nax Intel Core 5 120U Laptop 40.6 cm (16") 2K 16 GB LPDDR5x-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Home Silver

Specifications

144 specifications in 25 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Colour name	Glacier silver
Form factor	Clamshell
Market positioning	Everyday
Introduction year	2026
Original brand name	HP

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	2K
Display technology marketing name	UWVA
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	300 cd/m²
Colour gamut	100%
Display diagonal (metric)	40.6 cm
RGB colour space	DCI-P3
Display response rise/fall	0.2 ms
DCI-P3 coverage	100%

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core 5
Processor generation	Intel Core (Series 1)
Processor model	120U
Processor cores	10
Processor threads	12
Processor boost frequency	5 GHz
Performance cores	2
Efficient cores	8
Low Power Efficient-cores	0
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Processor cache	12 MB
Processor cache type	L3
Processor socket	BGA 1744
Maximum turbo power	55 W
Processor base power	15 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	6800 MHz
Memory form factor	On-board
Memory layout (slots x size)	Not available
Maximum internal memory	16 GB
Memory data transfer rate	6800 MT/s
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Audio system	DTS:X Ultra
Built-in speaker(s)	Yes
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Realtek
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
Microphone in	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Full-size keyboard	Yes
Keyboard colour name	Canvas gray

Software

Specification	Value
Operating system installed	Windows 11 Home
Trial software	100 GB Dropbox storage for 3 months

Processor special features

Specification	Value
Intel® Turbo Boost Technology	Yes

Brand-specific features

Specification	Value
HP Audio Boost	Yes
HP speaker type	HP Dual Speakers
HP Imagepad	Yes
HP Security tools	Mic mute key; Camera privacy shutter; Trusted Platform Module (Firmware TPM) support
HP Software provided	HP Support Assistant; HP Connection Optimizer; OMEN Gaming Hub
HP segment	Home
HP GTIN (EAN/UPC)	821844538739

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	68 Wh
Battery life (max)	13.25 h
Continuous video playback time (max)	22 h
Fast charging	Yes
Fast charging time (50%)	45 min

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Type-C required charging power (max)	100 W
USB Type-C required charging power (min)	65 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, Power on

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT, EPEAT Gold
Sustainable technologies and materials	Ocean-bound plastic in speaker enclosure(s) and bezel; Keyboard keycaps and scissors contain post-consumer recycled plastic; Recycled metal in cover and base
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Weight	1.68 kg
Width	355 mm
Depth	245 mm
Height	14.5 mm

Packaging data

Specification	Value
Package width	63 mm
Package depth	504 mm
Package height	302 mm
Package weight	2.81 kg

Carbon footprint

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	0.526
Carbon emissions, logistics (kg of CO2e)	4.617
Carbon emissions, manufacturing (kg of CO2e)	127.393
Total carbon emissions, w/o use phase (kg of CO2e)	9.569
Total carbon footprint (kg of CO2e)	142.105

Packaging content

Specification	Value
AC adapter included	No
Keyboard included	Yes

Other features

Specification	Value
Manufacturer warranty	1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Supplied AC adapter type	Anodized cover and base finish, matte paint keyboard frame
UNSPSC-code	43211503

Technical details

Specification	Value
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true ; HP REG 23010, 08028 Barcelona, Spain ; reg@hp.com
