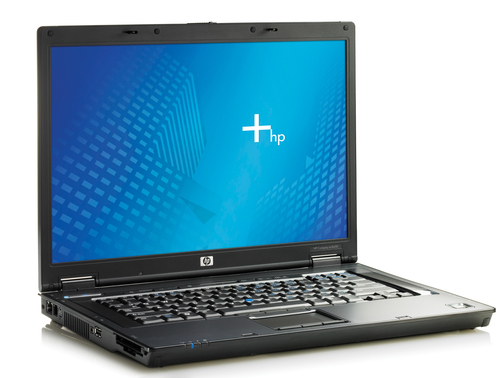

HP nc8430 Intel® Core™ Duo T2500

39.1 cm (15.4") 1 GB DDR2-SDRAM 80 GB AMD Mobility Radeon X1600 Windows XP Professional QWERTY

Model nc8430Part no. EY686AWEAN 882780842489

138 specifications Checked 3 days ago

Display39.1 cm (15.4")
Resolution1680 x 1050 pixels
ProcessorIntel® Core™ Duo
Memory1 GB
Storage80 GB
GraphicsAMD Mobility Radeon X1600

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1680 x 1050 pixels
Processor: Intel® Core™ Duo
Memory: 1 GB
Storage: 80 GB
Graphics: AMD Mobility Radeon X1600

Brand: HP
Category: Laptop
Model: nc8430
Part numbers: EY686AW, RN031AW, EY686AW#ABH, RN031AW#ABH
EAN / UPC: 882780842489, 882780590748, 882780590755, 882780590762 +36 more
Also known as: HP nc8430 Intel® Core™ Duo T2500 39.1 cm (15.4") 1 GB DDR2-SDRAM 80 GB AMD Mobility Radeon X1600 Windows XP Professional QWERTY

Specifications

138 specifications in 21 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ Duo
Processor model	T2500
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 479
Processor lithography	65 nm
Processor operating modes	32-bit
Processor series	Intel Core Duo T2000 Series
Processor codename	Yonah
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	31 W
Scenario Design Power (SDP)	0 W
Tjunction	100 °C
Number of Processing Die Transistors	151 M
Processing Die size	90 mm²
CPU multiplier (bus/core ratio)	12
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB
Memory upgrade	4 GB

Storage

Specification	Value
Total storage capacity	80 GB
HDD speed	5400 RPM
Optical drive type	DVD-ROM
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon X1600
Maximum graphics card memory	0.256 GB

Audio

Specification	Value
Audio system	HP Premier Sound
Audio included	HP Premier Sound High Definition Audio 24-bit DAC, headphone jack, microphone jack, integrated microphone, Digital EQ, Advanced audio power management

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	Gigabit Ethernet
Wireless technology	IEEE 802.11a/b/g, Bluetooth, Y
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	Yes
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	1
I/O ports	3 USB 2.0 ports, VGA, headphone
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945PM Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard layout	QWERTY
Keyboard type	Full-sized

Software

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	Adobe Acrobat Reader, HP Help & Support Center, HP Mobile Printing Driver, HP ProtectTools Security Manager, HP OpenView Radia Management Agent, InterVideo WinDVD - DVD Player, Sonic Digital Media Plus HP Backup & Recovery Manager, HP Quick Launch Buttons, HP Wireless Assistant
Compatible operating systems	FreeDOS, Windows 2000 drivers available on www.hp.com, Windows Vista capable, Windows Vista Premium ready

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	32 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	27236
Processor code	SL9K2
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	8

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Security management description	Kensington lock slot, integrated Smart Card Reader (Smart Card sold separately), Symantec Norton Internet Security

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 80 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95, 5 - 90

Weight & dimensions

Specification	Value
Weight	2.7 kg
Width	358 mm
Depth	259 mm
Height	28 mm
Dimensions (WxDxH)	358 x 259 x 28 mm

Video

Specification	Value
Video card features	ATI Mobility Radeon X1600

Other features

Specification	Value
Infrared data port	No
Power management	8-cell Lithium-Ion, secondary 8-cell HP Extended Life Battery (sold separately)
Power requirements	External 90W Smart AC adapter 8-cell Lithium-Ion battery, secondary 8-cell HP Extended Life Battery (sold separately)
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	56K
Docking solution	HP Basic Docking Station, HP Advanced Docking Station, HP External MultiBay II, HP Adjustable Notebook Stand (all sold separately)
Expansion slots	1 Type I/II PC Card slot supports 32-bit CardBus and 16-bit cards, integrated Smart Card Reader, Secure Digital slot Slots available for additional devices: 1 Type I/II PC Card slot supports both 32-bit CardBus and 16-bit cards, 1 integrated Smart Card reader, 1 Secure digital slot
Multi-bay devices	Optional external Multibay II devices
Protection tools	HP ProtectTools Security Manager, HP Drivelock, HP TPM Embedded Security Chip, HP Biometric Fingerprint Sensor (optional)
Supplied AC adapter type	AC
