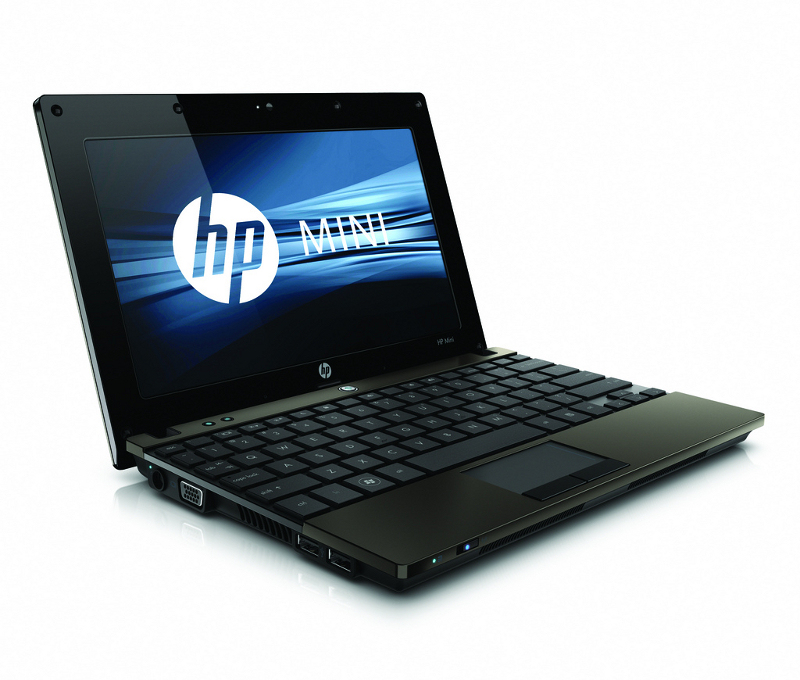

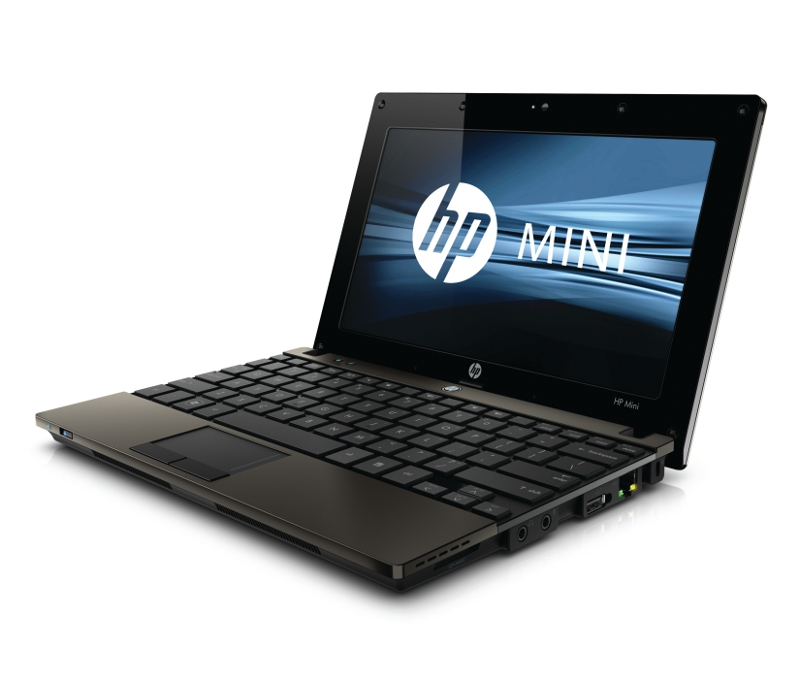

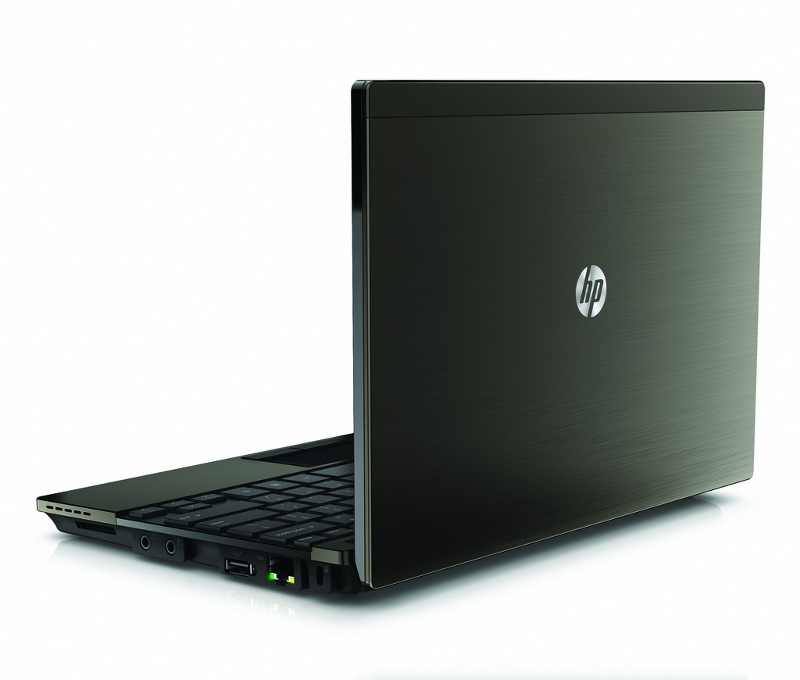

HP Mini 5103 DOS US

Mini 5103 DOS US

Model Mini 5103 DOS USPart no. XN646ESEAN 886111017744

86 specifications Checked today

Display25.6 cm (10.1")
Resolution1366 x 768 pixels
ProcessorIntel Atom®
Memory2 GB
Storage320 GB
TypeNetbook

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1366 x 768 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 320 GB
Type: Netbook

Brand: HP
Category: Laptop
Model: Mini 5103 DOS US
Part number: XN646ES
EAN / UPC: 886111017744
Also known as: HP Mini 5103 DOS US Intel Atom® N550 Netbook 25.6 cm (10.1") 2 GB DDR3-SDRAM 320 GB Linux Espresso English

Specifications

86 specifications in 22 groups

Design

Specification	Value
Product type	Netbook
Product colour	Espresso
Country of origin	China

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N550
Processor cores	2
Processor threads	4
Processor frequency	1.5 GHz
System bus rate	2.5 GT/s
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Pineview
Bus type	DMI
Thermal Design Power (TDP)	8.5 W
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	320 GB
HDD capacity	320 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Graphics card family	Intel
On-board graphics card base frequency	200 MHz
Graphics card	GMA 3150

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wireless technology	802.11 a/b/g/n
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
Headphone outputs	1

Performance

Specification	Value
Motherboard chipset	Intel NM10
GPS (satellite)	No

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard language	English

Software

Specification	Value
Operating system installed	Linux

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	50154
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6

Power

Specification	Value
AC adapter power	40 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.2 kg
Width	262 mm
Depth	180 mm
Height	23.2 mm

Packaging data

Specification	Value
Package dimensions (WxDxH)	262 x 180 x 24.8 mm

Other features

Specification	Value
Supplied AC adapter type	AC
