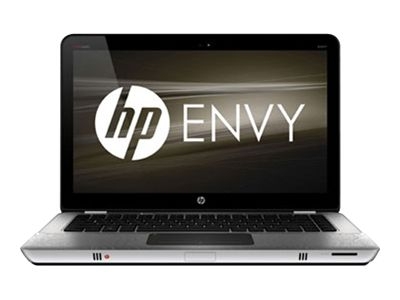

HP LM766EA Intel® Core™ i7 i7-720QM

36.8 cm (14.5") 8 GB DDR3-SDRAM 750 GB HDD AMD Mobility Radeon HD 5650 Windows 7 Home Premium Aluminium, Anthracite QWERTY

Model LM766EAPart no. LM766EA#ABH

154 specifications Checked 3 days ago

Display36.8 cm (14.5")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage750 GB
GraphicsAMD Mobility Radeon HD 5650

See all specifications

Overview

Display: 36.8 cm (14.5")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 750 GB
Graphics: AMD Mobility Radeon HD 5650

Brand: HP
Category: Laptop
Model: LM766EA
Part number: LM766EA#ABH
Also known as: HP LM766EA Intel® Core™ i7 i7-720QM 36.8 cm (14.5") 8 GB DDR3-SDRAM 750 GB HDD AMD Mobility Radeon HD 5650 Windows 7 Home Premium Aluminium, Anthracite QWERTY

Specifications

154 specifications in 23 groups

Design

Specification	Value
Product colour	Aluminium, Anthracite
Country of origin	China

Display

Specification	Value
Display diagonal	36.8 cm (14.5")
Display resolution	1366 x 768 pixels
Display number of colours	16.78 million colours
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-720QM
Processor cores	4
Processor threads	8
Processor boost frequency	2.8 GHz
Processor frequency	1.6 GHz
System bus rate	2.5 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	Socket 988
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-700 Mobile Series
Processor codename	Clarksfield
Bus type	DMI
FSB Parity	No
Stepping	B1
Thermal Design Power (TDP)	45 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	12
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	750 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	750 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon HD 5650
Graphics card family	ATI
Discrete graphics memory type	GDDR5

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Optical drive

Specification	Value
LightScribe	No
Disc types supported	CD

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	Yes
Bluetooth	Yes
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	1
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® HM65 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Full-size keyboard	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Trial software	Symantec Norton Internet Security
Bundled software	HP MediaSmart suite HP Setup HP Support Assistant HP ProtectSmart

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	43122
Processor code	SLBLY
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	8

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	0 - 80%

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.52 kg
Width	356 mm
Depth	237 mm
Height	27.7 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Power requirements	100-240 V
Power supply type	AC/DC
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
