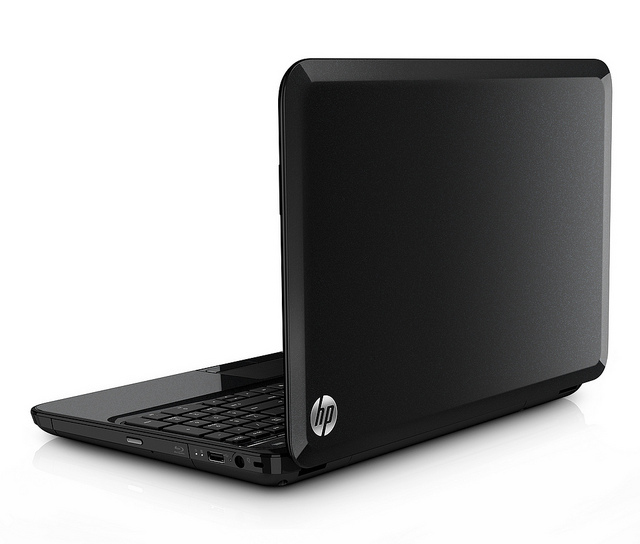

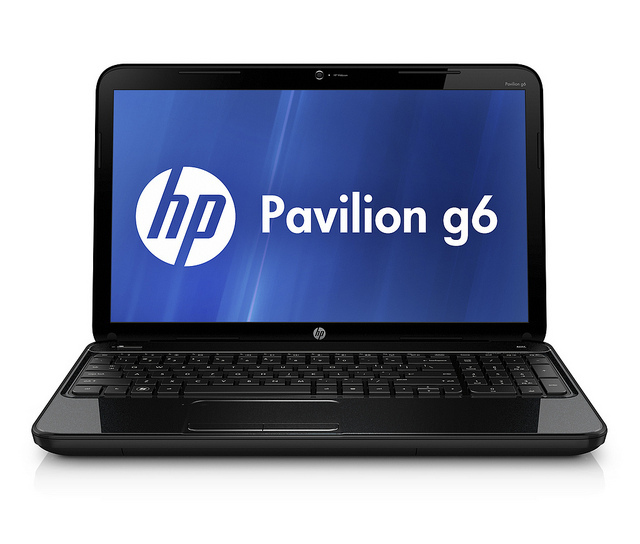

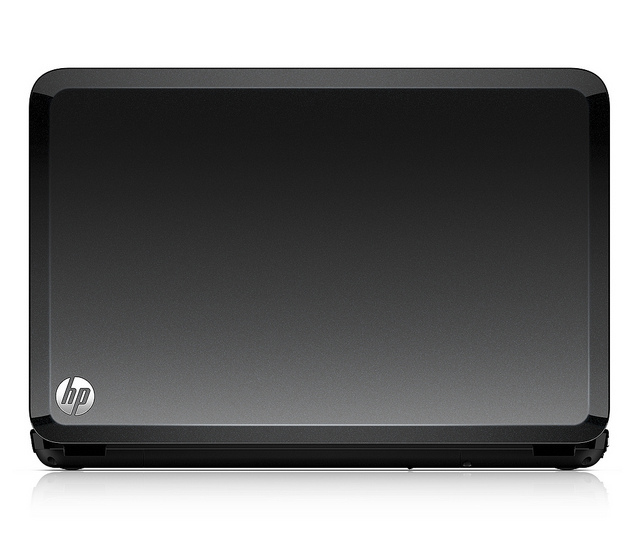

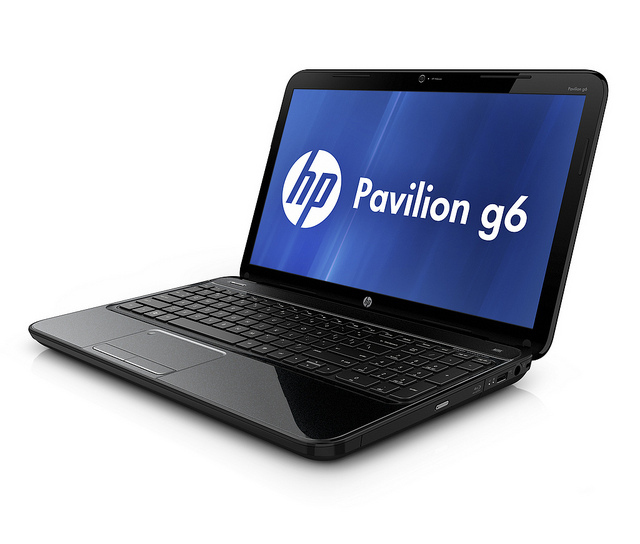

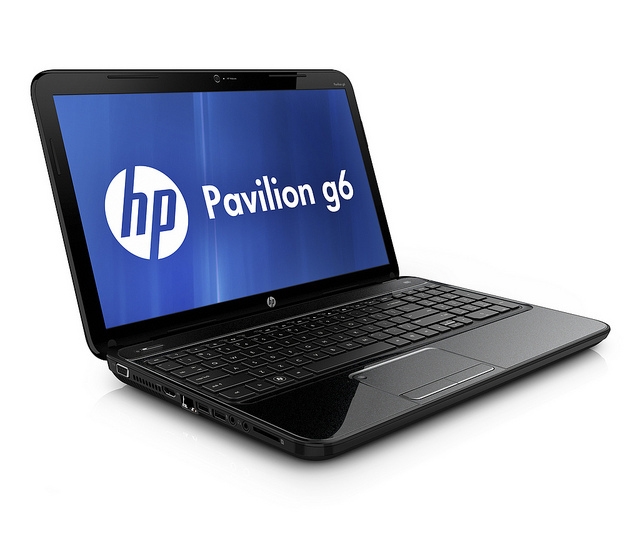

HP Pavilion g6-2304sd Intel® Core™ i5 i5-3230M Laptop

39.6 cm (15.6") HD 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (802.11n) Windows 8 Black QWERTY

Model g6-2304sdPart no. D1M67EA#ABH

206 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: HP
Category: Laptop
Model: g6-2304sd
Part number: D1M67EA#ABH
Also known as: HP Pavilion g6-2304sd Intel® Core™ i5 i5-3230M Laptop 39.6 cm (15.6") HD 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (802.11n) Windows 8 Black QWERTY

Specifications

206 specifications in 24 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
Display number of colours	16.78 million colours
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3230M
Processor cores	2
Processor threads	4
Processor boost frequency	3.2 GHz
Processor frequency	2.6 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3200 Mobile series
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Stepping	L1
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
CPU multiplier (bus/core ratio)	26
Maximum number of SMP processors	1
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Memory slots (available)	1
Maximum internal memory	8 GB
Maximum internal memory (64-bit)	8 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Total HDDs capacity	500 GB
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	5200 RPM
HDD size	2.5"
Number of SSDs installed	0
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x166
Maximum graphics card memory	1.65 GB

Audio

Specification	Value
Audio system	Dolby Advanced audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
Speakers manufacturer	Altec Lansing
Built-in microphone	Yes

Optical drive

Specification	Value
LightScribe	No
CD read speed	24x
CD write speed	24x
CD-R read speed	24x
CD-R write speed	24x
Optical drive interface	SATA
DVD-R read speed	8x
DVD-R write speed	8x
DVD-R Double Layer read speed	6x
DVD-R Double Layer write speed	6x
DVD-RW read speed	8x
DVD-RW write speed	8x
DVD+R read speed	8x
DVD+R write speed	8x
DVD+R Double Layer read speed	6x
DVD+R Double Layer write speed	6x
DVD+RW read speed	8x
DVD+RW write speed	8x
DVD-RAM read speed	5x
DVD-RAM write speed	5x

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
WWAN	Not installed
Cabling technology	10/100Base-T(X)
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	No
Microphone in	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm

Performance

Specification	Value
Motherboard chipset	Intel HM76 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Island-style keyboard	Yes
Full-size keyboard	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit
Trial software	Symantec Norton Internet Security 2013

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	72056
Processor code	SR0WX
Processor package size	31 x 24 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
Power auto-sensing	Yes
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Password protection type	Yes

Operational conditions

Specification	Value
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%

Certificates

Specification	Value
Compliance certificates	RoHS
Wi-Fi certified	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.48 kg
Width	376 mm
Depth	244 mm
Height	36.3 mm

Packaging data

Specification	Value
Package width	520 mm
Package depth	80 mm
Package height	345 mm
Package weight	3.34 kg

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Manual	Yes
Quick start guide	Yes
Warranty card	Yes

Other features

Specification	Value
3D	No
Supplied AC adapter type	AC
