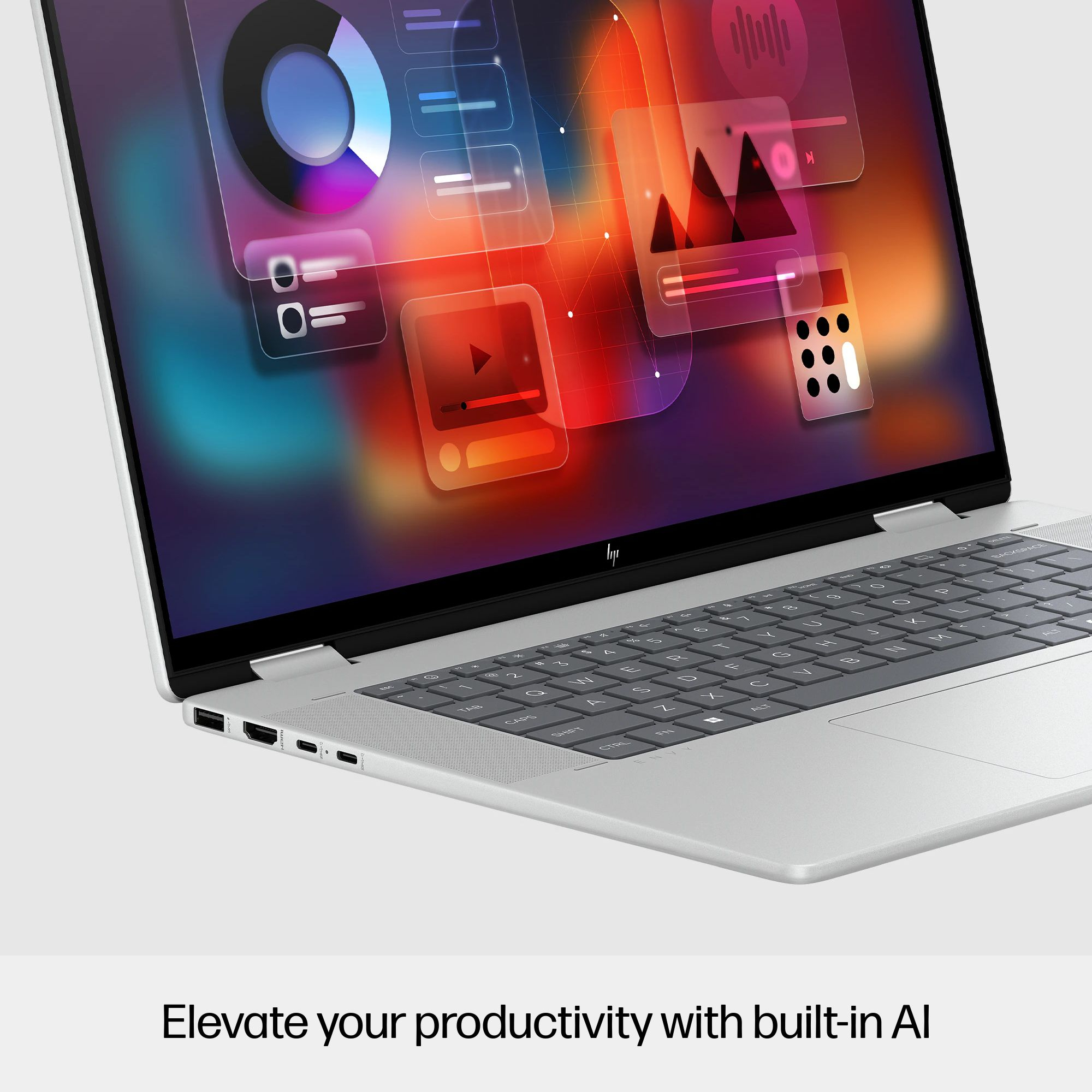

HP Envy x360 16-ac0023dx

Envy x360 16-ac0023dx

Model Envy x360 16-ac0023dxPart no. 9S1R6UA#ABA

110 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorIntel Core Ultra 7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

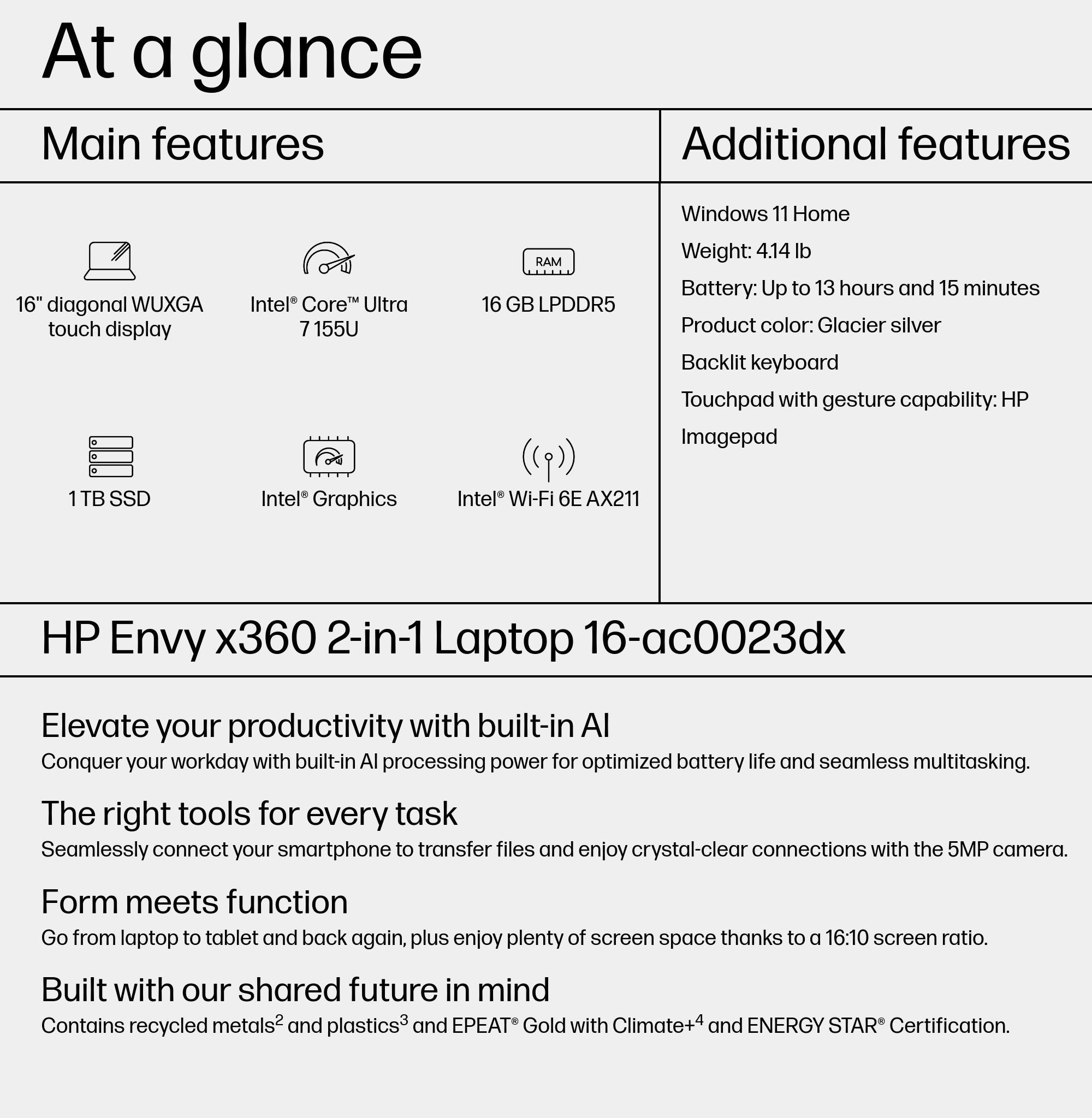

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: Intel Core Ultra 7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: HP
Category: Laptop
Model: Envy x360 16-ac0023dx
Part number: 9S1R6UA#ABA
Also known as: HP ENVY x360 16-ac0023dx Intel Core Ultra 7 155U Hybrid (2-in-1) 40.6 cm (16") Touchscreen 2K 16 GB LPDDR5-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Si

Specifications

110 specifications in 19 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Silver

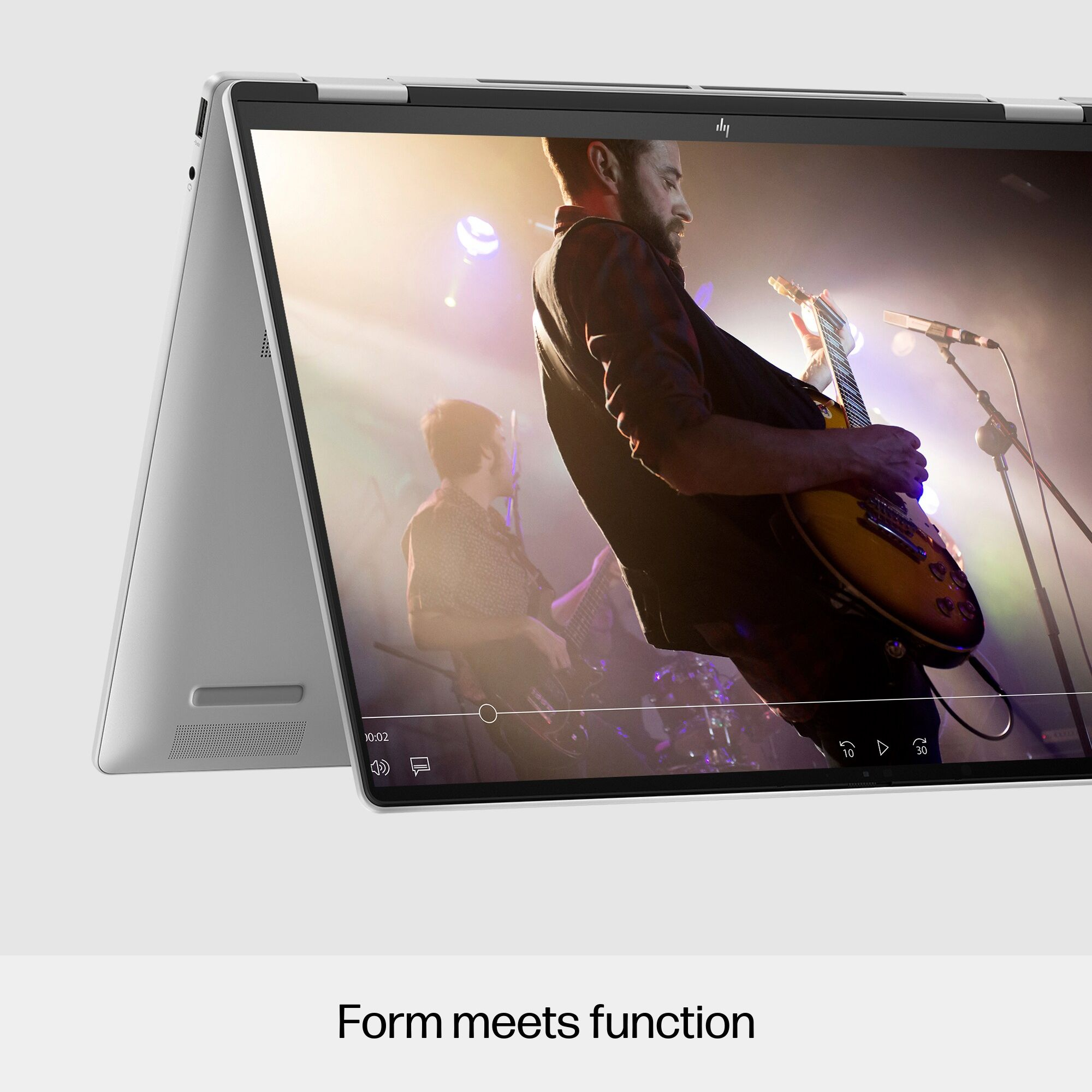

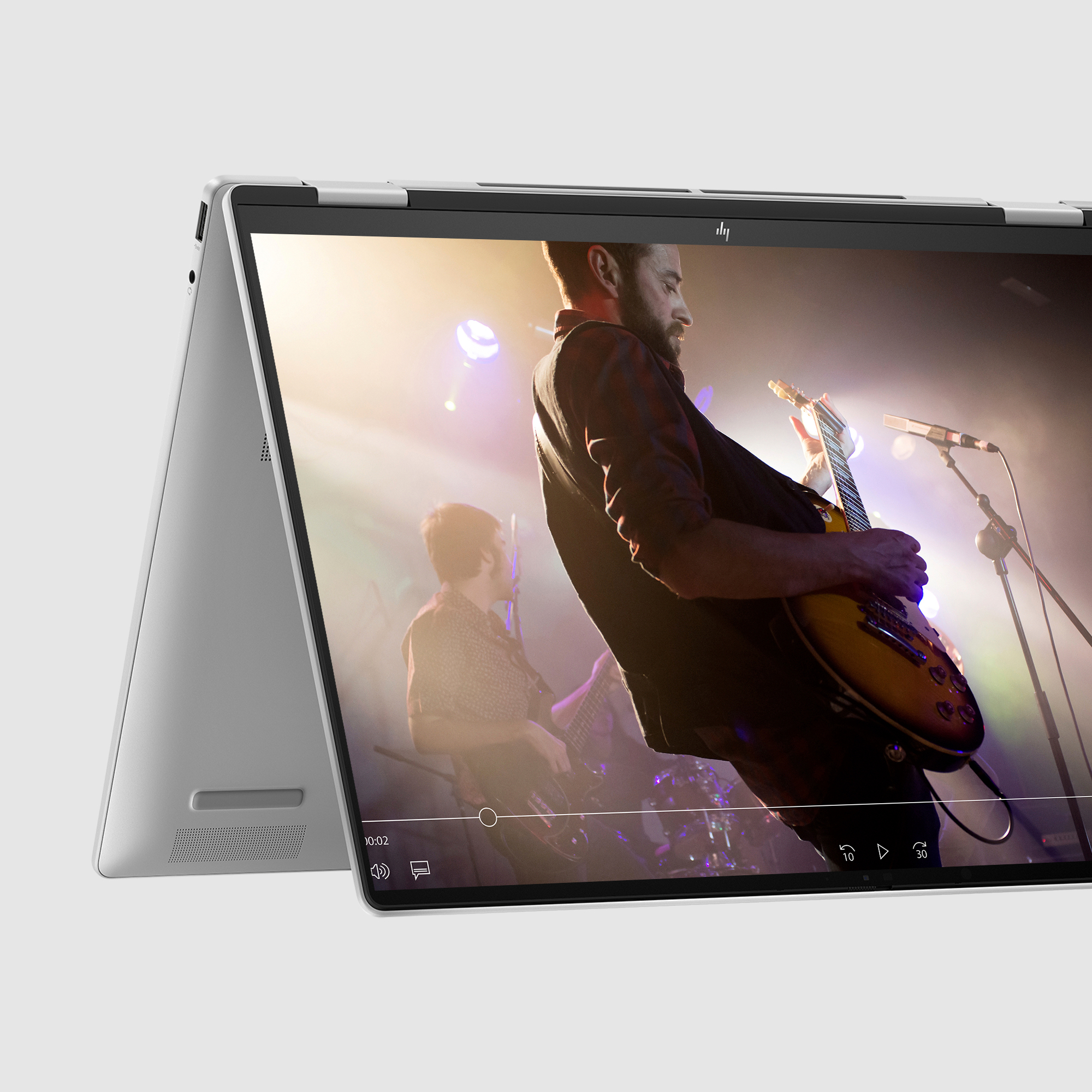

Form factor	Convertible (Folder)
Market positioning	Premium
Introduction year	2024
Original brand name	HP

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	2K
Panel type	IPS
Display glass type	Edge to Edge Glass
Display bezel technology	Micro-Edge
Display brightness	300 cd/m²
Display diagonal (metric)	40.6 cm

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model	155U
Processor cores	12
Processor threads	14
Processor boost frequency	4.8 GHz
Performance cores	2
Efficient cores	8
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	1.7 GHz
Efficient-core base frequency	1.2 GHz
Processor cache	12 MB
Processor cache type	L3
Maximum turbo power	57 W
Processor base power	15 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory clock speed	6400 MHz
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Audio system	DTS:X Ultra
Number of built-in speakers	2

Camera

Specification	Value

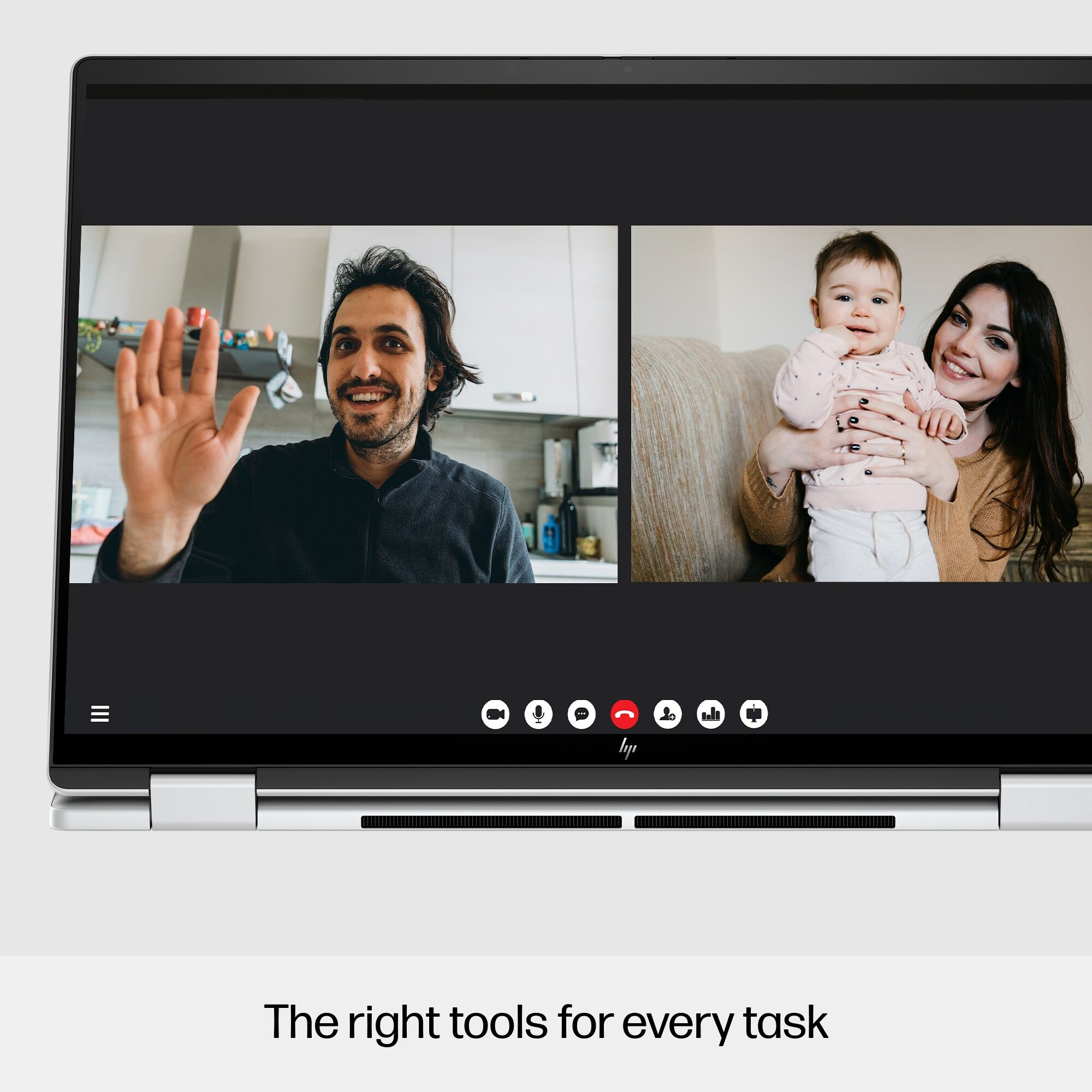

Front camera	Yes
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel SoC
Accelerometer	Yes
Gyroscope	Yes
Temperature sensor	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Full-size keyboard	Yes
Keyboard colour name	soft grey

Software

Specification	Value
Operating system installed	Windows 11 Home

Brand-specific features

Specification	Value
HP Audio Boost	Yes
HP speaker type	HP Dual Speakers
HP segment	Home

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	68 Wh
Battery life (max)	13.25 h
Fast charging	Yes
Fast charging time (50%)	45 min

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, Power on

Weight & dimensions

Specification	Value
Weight	1.87 kg
Width	356.7 mm
Depth	245.8 mm
Height	18.2 mm

Packaging data

Specification	Value
Package width	80 mm
Package depth	430 mm
Package height	315 mm
Package weight	3.13 kg
