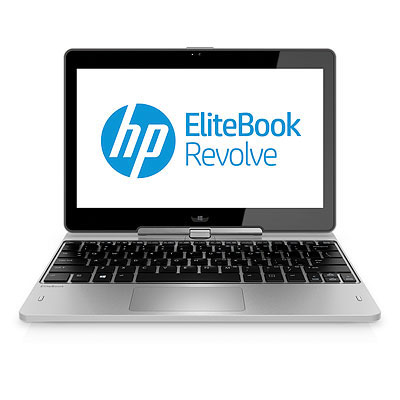

HP EliteBook Revolve 810 G1 Base Model Tablet

Model EliteBook Revolve 810 G1 Base Model TabletPart no. C9B03AVEAN 887111886866

168 specifications Checked 2 days ago

Display29.5 cm (11.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i7
Memory4 GB
Storage128 GB
GraphicsNot available

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 128 GB
Graphics: Not available

Brand: HP
Category: Laptop
Model: EliteBook Revolve 810 G1 Base Model Tablet
Part number: C9B03AV
EAN / UPC: 887111886866, 8871118868668
Also known as: HP EliteBook Revolve 810 G1 Base Model Tablet Intel® Core™ i7 i7-3687U Hybrid (2-in-1) 29.5 cm (11.6") Touchscreen HD 4 GB DDR3-SDRAM 128 GB SSD Windows 7 Profe

Specifications

168 specifications in 22 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Silver
Form factor	Convertible (Swivel)
Country of origin	China

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	HD
Touch technology	Multi-touch
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3687U
Processor cores	2
Processor threads	4
Processor boost frequency	3.3 GHz
Processor frequency	2.1 GHz
System bus rate	5 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3600 Mobile series
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Stepping	L1
Thermal Design Power (TDP)	17 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	21
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	On-board
Memory slots	1x SO-DIMM

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	SSD
Number of HDDs installed	0
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	SATA III
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Audio system	DTS Studio Sound
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	Yes
Bluetooth	Yes
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Accelerometer	Yes
Orientation sensor	Yes
Proximity sensor	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8 Pro

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	2.0
Processor ARK ID	71258
Processor code	SR0XH
Processor package size	31.0 x 24.0 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	44 Wh
Battery life (max)	8.25 h

Power

Specification	Value
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.4 kg
Width	212 mm
Depth	285 mm
Height	22.2 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Quick start guide	Yes
Warranty card	Yes
