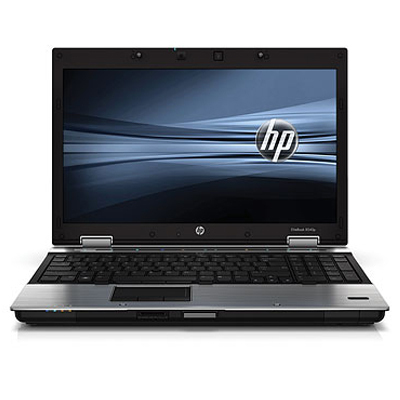

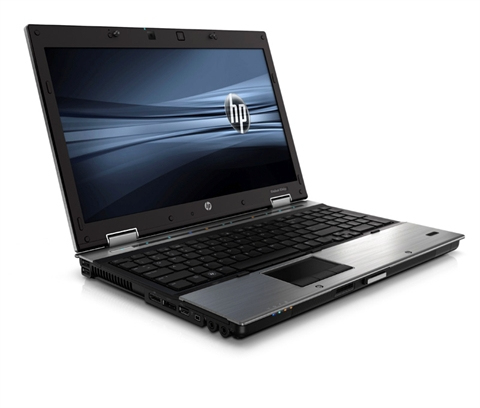

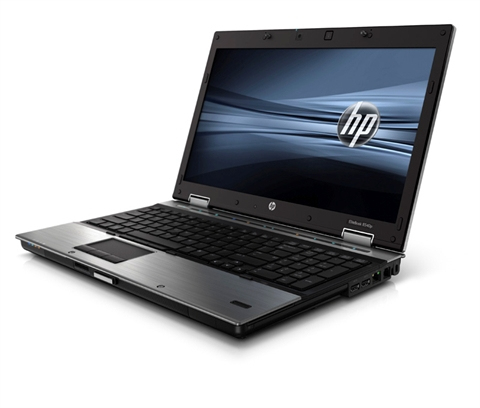

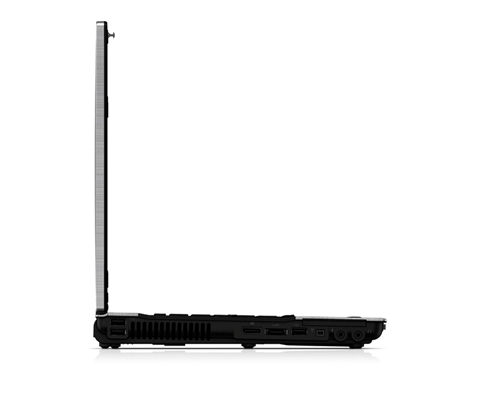

HP EliteBook 8540p Notebook PC

Model EliteBook 8540p Notebook PCPart no. XA340EPEAN 884962948897

150 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory2 GB
Storage250 GB
GraphicsNVIDIA® Quadro® NVS 5100M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 2 GB
Storage: 250 GB
Graphics: NVIDIA® Quadro® NVS 5100M

Brand: HP
Category: Laptop
Model: EliteBook 8540p Notebook PC
Part numbers: XA340EP, VQ370EP, VW665EC, VW776EC, LC530EP, LC348EP +34 more
EAN / UPC: 884962948897, 884962948538, 884962948545, 884962948699 +16 more
Also known as: HP EliteBook 8540p Notebook PC Intel® Core™ i5 i5-520M 39.6 cm (15.6") 2 GB 250 GB NVIDIA® Quadro® NVS 5100M Windows 7 Professional QWERTY

Specifications

150 specifications in 22 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-520M
Processor cores	2
Processor threads	4
Processor boost frequency	2.93 GHz
Processor frequency	2.4 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 956
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-500 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	18
ECC supported by processor	No
Processor technology	Intel Centrino 2 w/ vPro

Memory

Specification	Value
Internal memory	2 GB
Memory clock speed	1333 MHz
Maximum internal memory	4 GB
Memory upgrade	8 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD interface	SATA II
HDD speed	7200 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Maximum HDD capacity	256 GB

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® NVS 5100M
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2
Audio included	High Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated dual-microphone array

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Networking features	Intel Gigabit Network Connection (10/100/1000 NIC)
Wireless technology	Intel 802.11a/b/g/n; HP Integrated Module with Bluetooth 2.1 Wireless Technology, Y
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
I/O ports	2 USB 2.0; 2 USB 3.0; 1 DisplayPort; 1 external VGA monitor; 1 1394a; 1 stereo microphone in; 1 stereo headphone/line-out; 1 AC power; 1 RJ-11; 1 RJ-45; 1 eSATA; 1 docking connector; 1 secondary battery connector

Performance

Specification	Value
Motherboard chipset	Intel® QM57 Express

Keyboard

Specification	Value
Keyboard layout	QWERTY
Keyboard type	Spill-resistant keyboard with drain

Software

Specification	Value
Operating system installed	Windows 7 Professional
Bundled software	HP Recovery Manager (available with Windows 7 or Vista only), HP Support Assistant (available with Windows 7 or Vista only), HP QuickLaunch Buttons Software, HP QuickLook 3, HP QuickWeb, HP Power Assistant, HP Connection Manager, HP Wireless Assistant, HP SkyRoom, Microsoft Office Professional 2007
Compatible operating systems	Genuine Windows Vista Enterprise 32; Genuine Windows Vista Enterprise 64; SUSE Linux Enterprise 11

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	47341
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	8

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Security management description	McAfee Security Solution, HP ProtectTools Security Manager, Enhanced Pre-Boot Security, HP SpareKey, One-Step Logon, Setup Password, DriveLock Password, TPM 1.2 Embedded Security Chip, TPM Enhanced DriveLock, HP Disk Sanitizer, Kensington Lock slot, Support for Computrace LoJack Pro for HP ProtectTo

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Weight	2.95 kg
Width	373.5 mm
Depth	251.5 mm
Height (front)	3.24 cm
Dimensions (WxDxH)	374 x 252 x 32 mm

Hard drive

Specification	Value
Storage drive type	250 GB 7200 rpm SATA II
Storage drive controller	SED SATA II (7200 rpm) SATA II (7200 rpm) Solid State Drive

Video

Specification	Value
Video card features	NVIDIA NVS 5100

Other features

Specification	Value
Infrared data port	No
Battery type	8-cell (73 WHr) Lithium-Ion Battery
Minimum storage drive space	160 GB
Power requirements	External 90W HP Smart AC Adapter (travel use), HP Fast Charge 8-cell (73 WHr) Lithium-Ion Battery
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	56K V.92
Intel segment tagging	Enterprise
Docking solution	HP Docking Station, HP Advanced Docking Station, HP USB 2.0 Docking Station, HP Essential USB 2.0 Port Replicator, HP Monitor Stand, HP Basic Adjustable Stand, HP Adjustable Notebook Stand
Expansion slots	1 Express Card/54; 1 Smart Card Reader; 1 6-in-1 Media Card Reader
Supplied AC adapter type	AC
