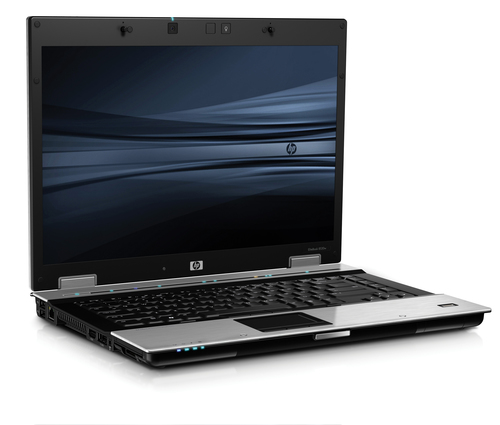

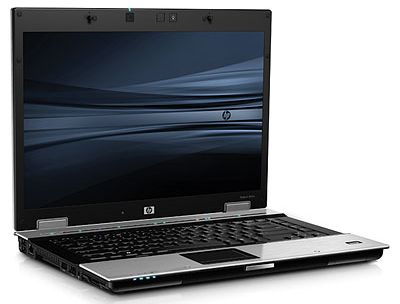

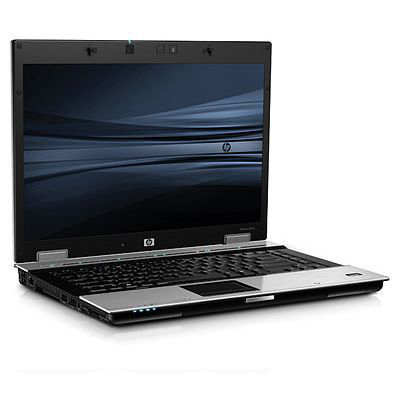

HP EliteBook 8530w
Model EliteBook 8530wPart no. NS795UP#ABHEAN 884420930235
157 specifications Checked 3 days ago
- Display39.1 cm (15.4")
- Resolution1920 x 1200 pixels
- ProcessorIntel® Core™2 Duo
- Memory4 GB
- Storage320 GB
- GraphicsNVIDIA® Quadro® FX 770M
Overview
- Display
- 39.1 cm (15.4")
- Resolution
- 1920 x 1200 pixels
- Processor
- Intel® Core™2 Duo
- Memory
- 4 GB
- Storage
- 320 GB
- Graphics
- NVIDIA® Quadro® FX 770M
- Brand
- HP
- Category
- Laptop
- Model
- EliteBook 8530w
- Part numbers
- NS795UP#ABH, FU463EA#ABH, NJ873UP#ABH, K-HP-YR23351, K-HP-YR23342, K-HP-YR23414 +12 more
- EAN / UPC
- 884420930235, 884420444381, 884420444398, 884420450061 +16 more
- Also known as
- HP EliteBook 8530w Intel® Core™2 Duo T9600 Laptop 39.1 cm (15.4") 4 GB DDR2-SDRAM 320 GB HDD NVIDIA® Quadro® FX 770M Windows Vista Business QWERTY
Specifications
157 specifications in 22 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Form factor | Clamshell |
| Country of origin | China |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.1 cm (15.4") |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | T9600 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.8 GHz |
| Processor cache | 6 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Processor socket | Socket 478 |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo T9000 Series |
| Processor codename | Penryn |
| Bus type | FSB |
| FSB Parity | No |
| Stepping | E1 |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 105 °C |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| CPU multiplier (bus/core ratio) | 10.5 |
| ECC supported by processor | No |
| Processor technology | Intel Centrino 2 w/ vPro |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 320 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Optical drive type | DVD±RW |
| Card reader integrated | Yes |
| Maximum HDD capacity | 500 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® FX 770M |
| Discrete graphics card memory | 0.512 GB |
| Graphics card family | NVIDIA |
| Maximum graphics card memory | 0.5 GB |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
| Number of built-in speakers | 2 |
| Audio included | High Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated dual-microphone array |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Networking features | Intel Gigabit Network Connection (10/100/1000 NIC) |
| Wireless technology | Intel 802.11 a/b/g/n mini-pci card, Bluetooth, Y |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Bluetooth | No |
| Bluetooth version | 2.0+EDR |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | Yes |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | Yes |
| Modem (RJ-11) ports | 1 |
| TV-in port | No |
| TV-out | No |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| I/O ports | 4 USB 2.0 ports, VGA, eSATA, stereo microphone in, stereo headphone/line out, Firewire (1394a), HDMI, power connector, docking connector, secondary battery connector, RJ-11, RJ-45 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® PM45 Express |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Full-size keyboard | Yes |
| Keyboard layout | QWERTY |
| Keyboard type | Full-sized |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Bundled software | HP Recovery Manager (Vista Only), HP Client Manager Software, HP Client Configuration Management Agent, HP OpenView PC Configuration Management Solutions, HP Performance Tuning Framework |
| Compatible operating systems | Genuine Windows XP Professional, SuSe Linux Enterprise Desktop 10 |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 35563 |
| Processor code | SLG9F |
| Processor package size | 35 x 35 mm |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 8 |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | No |
| Trusted Platform Module (TPM) | Yes |
| Security management description | McAfee Security Solution, Kensington Lock slot, HP Privacy Filter (optional) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | MCAD: AutoDesk (AutoCAD, Inventor, Revit, Alias Studio, Map 3D, Civil 3D), Bentley (In Roads XM, MicroStation, Navigator), CEI, CoCreate OneSpace, Dassault CATIA V5, ICEM Surf, Intelligent Light, MSC Software (MSC.Patran, SimXpert), PTC Pro/ENGINEER Wildfire, Sensable, Siemans PLMS (NX, NX I-deas, S |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.86 kg |
| Width | 355 mm |
| Depth | 263.5 mm |
| Height | 28.2 mm |
| Dimensions (WxDxH) | 28 x 355 x 263 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 156 x 135 x 198 mm |
| Package weight | 7.2 kg |
Hard drive
| Specification | Value |
|---|---|
| Storage drive type | 320 GB 7200 rpm SATA |
| Storage drive controller | Solid State Drive |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Battery type | 8-cell (73 WHr) Lithium-Ion battery |
| Minimum storage drive space | 250 GB |
| Power requirements | 8-cell (73 WHr) Lithium-Ion battery, optional HP (52 WHr) Extended Life Battery, optional HP (95 WHr) Ultra-Capacity Battery |
| Internal modem | Yes |
| Modem speed | 56 Kbit/s |
| Modem type | 56K |
| Intel segment tagging | Enterprise |
| Docking solution | HP Docking Station, HP Advanced Docking Station, HP Monitor Stand, HP Adjustable Notebook Stand (all sold separately) |
| Expansion slots | Slots available for additional devices: 1 ExpressCard/54 slot, Media Card Reader |
| Protection tools | HP ProtectTools, TPM Embedded Security Chip 1.2, HP Fingerprint Sensor, HP Disk Sanitizer, integrated Smart Card Reader |
| Supplied AC adapter type | AC |
