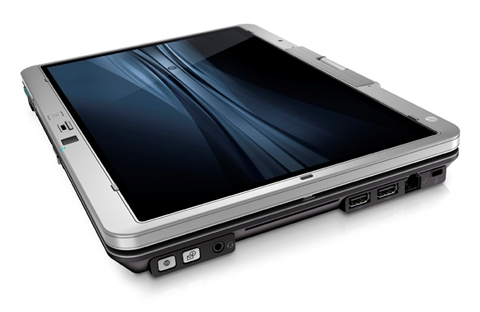

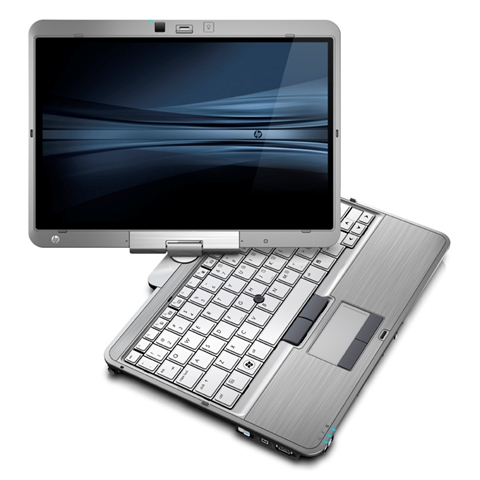

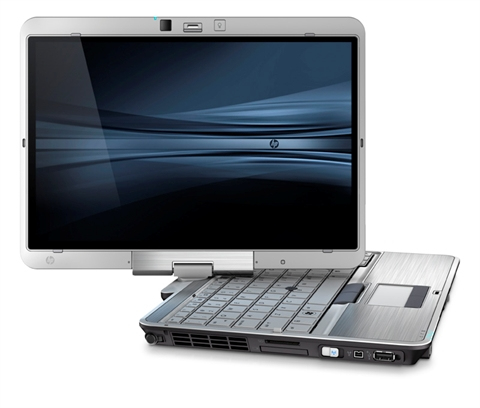

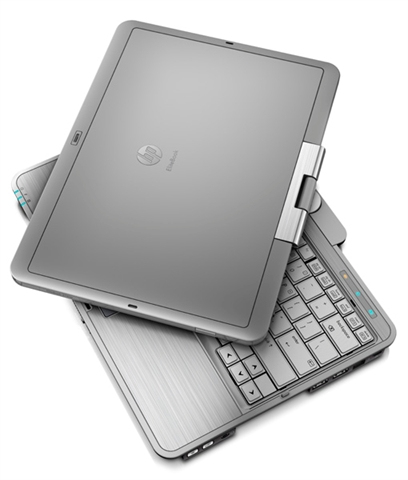

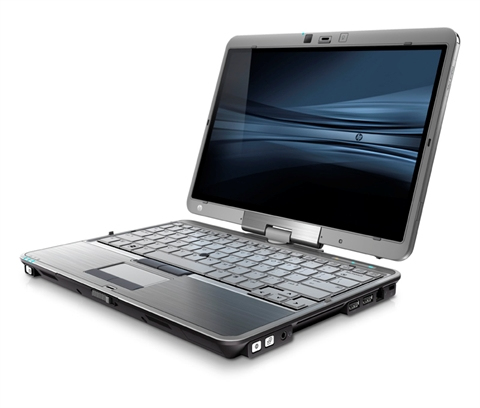

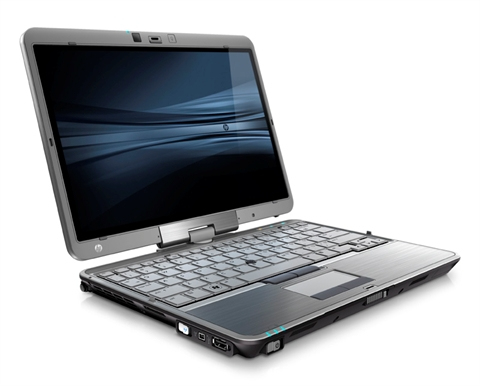

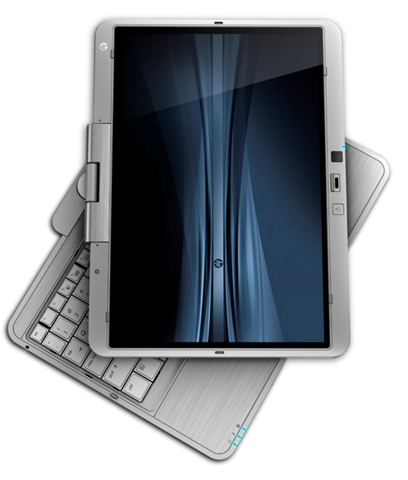

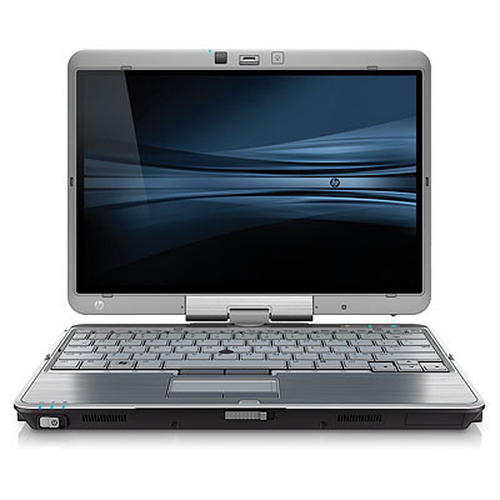

HP EliteBook 2740p Tablet PC

Model EliteBook 2740p Tablet PCPart no. WK298EA#ABH

120 specifications Checked 2 days ago

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel® Core™ i5
Memory2 GB
Storage160 GB
TypeHybrid (2-in-1)

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™ i5
Memory: 2 GB
Storage: 160 GB
Type: Hybrid (2-in-1)

Brand: HP
Category: Laptop
Model: EliteBook 2740p Tablet PC
Part numbers: WK298EA#ABH, WK298EA#AKD?FQ834AA#AC3, WS274AA, DUMHPEB2740PPRE, WW345PA
Also known as: HP EliteBook 2740p Tablet PC Intel® Core™ i5 i5-540M Hybrid (2-in-1) 30.7 cm (12.1") Touchscreen 2 GB Windows 7 Professional QWERTY

Specifications

120 specifications in 18 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)

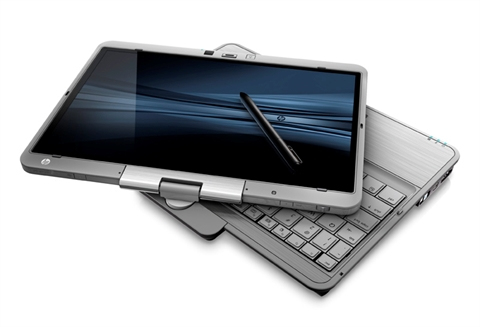

Form factor	Convertible (Swivel)
Country of origin	China

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
Touchscreen	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-540M
Processor cores	2
Processor threads	4
Processor boost frequency	3.07 GHz
Processor frequency	2.53 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 956
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-500 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	19
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Memory clock speed	1333 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total HDDs capacity	160 GB
HDD capacity	160 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz

Camera

Specification	Value
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
Networking features	Gigabit Ethernet
Wireless technology	IEEE 802.11a/b/g/n
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
SmartCard slot	Yes
Modem (RJ-11) ports	1

Performance

Specification	Value
Motherboard chipset	Intel® QM57 Express
GPS (satellite)	Yes

Keyboard

Specification	Value
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 7 Professional

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43544
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Weight	1.72 kg
Width	290 mm
Depth	212 mm
Height	31.7 mm

Other features

Specification	Value
Internal modem	Yes
Modem speed	56 Kbit/s
Intel segment tagging	Enterprise
