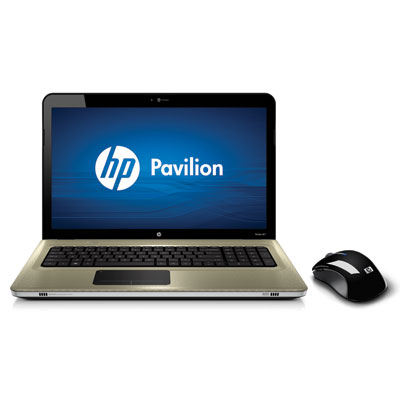

HP Pavilion dv7-4170eo Intel® Core™ i7 i7-720QM Laptop

43.9 cm (17.3") HD+ 4 GB DDR3-SDRAM 640 GB HDD AMD Mobility Radeon HD 5650 Wi-Fi 4 (802.11n) Windows 7 Ho

Model dv7-4170eoPart no. BXE262EA1

124 specifications Checked 3 days ago

Display43.9 cm (17.3")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i7
Memory4 GB
Storage640 GB
GraphicsAMD Mobility Radeon HD 5650

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 640 GB
Graphics: AMD Mobility Radeon HD 5650

Brand: HP
Category: Laptop
Model: dv7-4170eo
Part numbers: BXE262EA1, BXE262EA2
Also known as: HP Pavilion dv7-4170eo Intel® Core™ i7 i7-720QM Laptop 43.9 cm (17.3") HD+ 4 GB DDR3-SDRAM 640 GB HDD AMD Mobility Radeon HD 5650 Wi-Fi 4 (802.11n) Windows 7 Ho

Specifications

124 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Form factor	Clamshell
Country of origin	China

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1600 x 900 pixels
Touchscreen	No
HD type	HD+
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-720QM
Processor cores	4
Processor threads	8
Processor boost frequency	2.8 GHz
Processor frequency	1.6 GHz
System bus rate	2.5 GT/s
Processor cache	6 MB
Processor cache type	L3
Processor socket	Socket 988
Processor lithography	45 nm
Processor operating modes	64-bit
Bus type	DMI
Stepping	B1
Thermal Design Power (TDP)	45 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	12

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	640 GB
Storage media	HDD
Total HDDs capacity	640 GB
Number of HDDs installed	1
HDD capacity	640 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, Memory Stick (MS), SD, xD

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon HD 5650
Discrete graphics card memory	1 GB
Discrete graphics memory type	GDDR3
On-board graphics card model	Not available

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes

Keyboard

Specification	Value
Pointing device	Clickpad
Numeric keypad	Yes
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Pre-installed software	Microsoft Internet Explorer, Windows Live Messenger, Adobe Reader, Adobe Flash Player

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	43122
Processor code	SLBLY
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	Yes

Brand-specific features

Specification	Value
HP speaker type	HP Dual Speakers
HP Support Assistant	Yes
HP Software provided	HP MediaSmart Suite, HP Setup, HP Advisor, HP ProtectSmart
HP segment	Home

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6

Power

Specification	Value
AC adapter power	120 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor, User

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	3.25 kg
Width	415.3 mm
Depth	274 mm
Height (front)	3.18 cm
Height (rear)	3.7 cm

Packaging data

Specification	Value
Package depth	110 mm
Package height	345 mm
Package weight	5.2 kg
