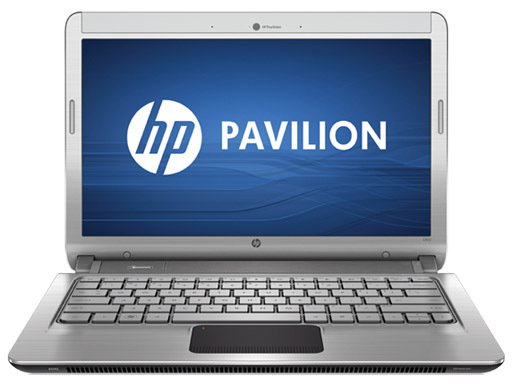

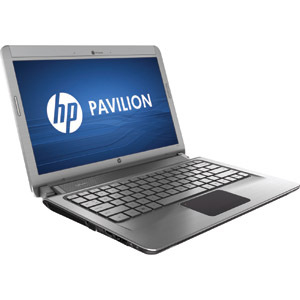

HP Pavilion dm3-3012nr Intel® Pentium® U5400

33.8 cm (13.3") 4 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium QWERTY

Model dm3-3012nrPart no. XG655UA

122 specifications Checked 3 days ago

Display33.8 cm (13.3")
Resolution1366 x 768 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage320 GB
GraphicsNot available

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1366 x 768 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 320 GB
Graphics: Not available

Brand: HP
Category: Laptop
Model: dm3-3012nr
Part number: XG655UA
Also known as: HP Pavilion dm3-3012nr Intel® Pentium® U5400 33.8 cm (13.3") 4 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium QWERTY

Specifications

122 specifications in 17 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	U5400
Processor cores	2
Processor threads	2
Processor frequency	1.2 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1288
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium U5000 Series for Mobile
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	K0
Thermal Design Power (TDP)	18 W
Tjunction	105 °C
Maximum number of PCI Express lanes	1
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	9
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA
HDD speed	7200 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	166 MHz
On-board graphics card dynamic frequency (max)	500 MHz

Audio

Specification	Value
Audio system	Dolby Advanced Audio

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
eSATA/USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
TV-out	No

Keyboard

Specification	Value
Numeric keypad	No
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	49156
Processor code	SLBUH
Processor package size	BGA 34 x 28
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6

Power

Specification	Value
AC adapter power	65 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Other features

Specification	Value
Infrared data port	No
