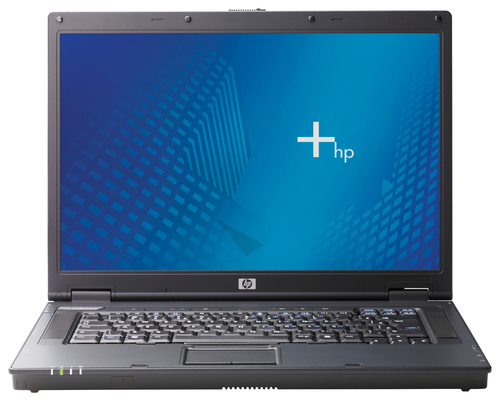

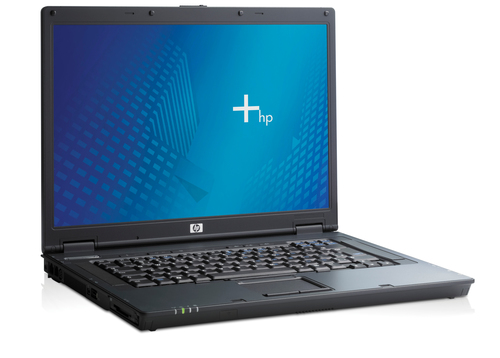

HP Compaq nx8220 Business Notebook PC

Model Compaq nx8220 Business Notebook PCPart no. PY515EAEAN 882780170544

81 specifications Checked 4 days ago

Display39.1 cm (15.4")
Resolution1200 x 800 pixels
Memory0.5 GB
Storage60 GB
GraphicsAMD Mobility Radeon X600
OSWindows XP Professional

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1200 x 800 pixels
Memory: 0.5 GB
Storage: 60 GB
Graphics: AMD Mobility Radeon X600
OS: Windows XP Professional

Brand: HP
Category: Laptop
Model: Compaq nx8220 Business Notebook PC
Part numbers: PY515EA, PY515EA#ABH
EAN / UPC: 882780170544, 882780141087, 882780169111, 882780169128 +16 more
Also known as: HP Compaq nx8220 Business Notebook PC 39.1 cm (15.4") 0.5 GB DDR-SDRAM 60 GB AMD Mobility Radeon X600 Windows XP Professional QWERTY

Specifications

81 specifications in 18 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1200 x 800 pixels
HD type	Not supported
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor frequency	1.73 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	533 MHz
Processor technology	Intel Centrino w/ Intel SpeedStep

Memory

Specification	Value
Internal memory	0.5 GB
Internal memory type	DDR-SDRAM
Memory layout (slots x size)	1 x 0.5 GB
Memory slots	2x SO-DIMM
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	60 GB
HDD speed	5400 RPM
Optical drive type	DVD±RW

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon X600
Maximum graphics card memory	0.064 GB
Graphics card interface	PCI Express

Audio

Specification	Value
Audio system	HP Premier•16-bit
Number of built-in speakers	2

Network

Specification	Value
Networking features	NetXtreme Gigabit Ethernet, Wireless LAN, Bluetooth
Wireless technology	Intel Mini PCI Card
Ethernet LAN data rates	10,100,1000 Mbit/s
Wireless compliance	IEEE 802.11b/g

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 915PM Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	InterVideo WinDVD Creator

Battery

Specification	Value
Number of battery cells	8
Battery life (max)	4.5 h

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes
Battery life with optional 2nd battery	8.5 h

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Weight	2.63 kg
Width	356 mm
Depth	254 mm
Height	28 mm
Dimensions (WxDxH)	356 x 264 x 28 mm

Other features

Specification	Value
Security features	HP ProtectTools HP DriveLock HP TPM Embedded Security Module
Infrared data port	Yes
Battery type	8-cell
Power requirements	90W AC
Wake-on-LAN ready	Yes
Wake-on-Ring ready	Yes
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	Data/Fax
Expansion slots	1x SD
Supplied AC adapter type	AC
