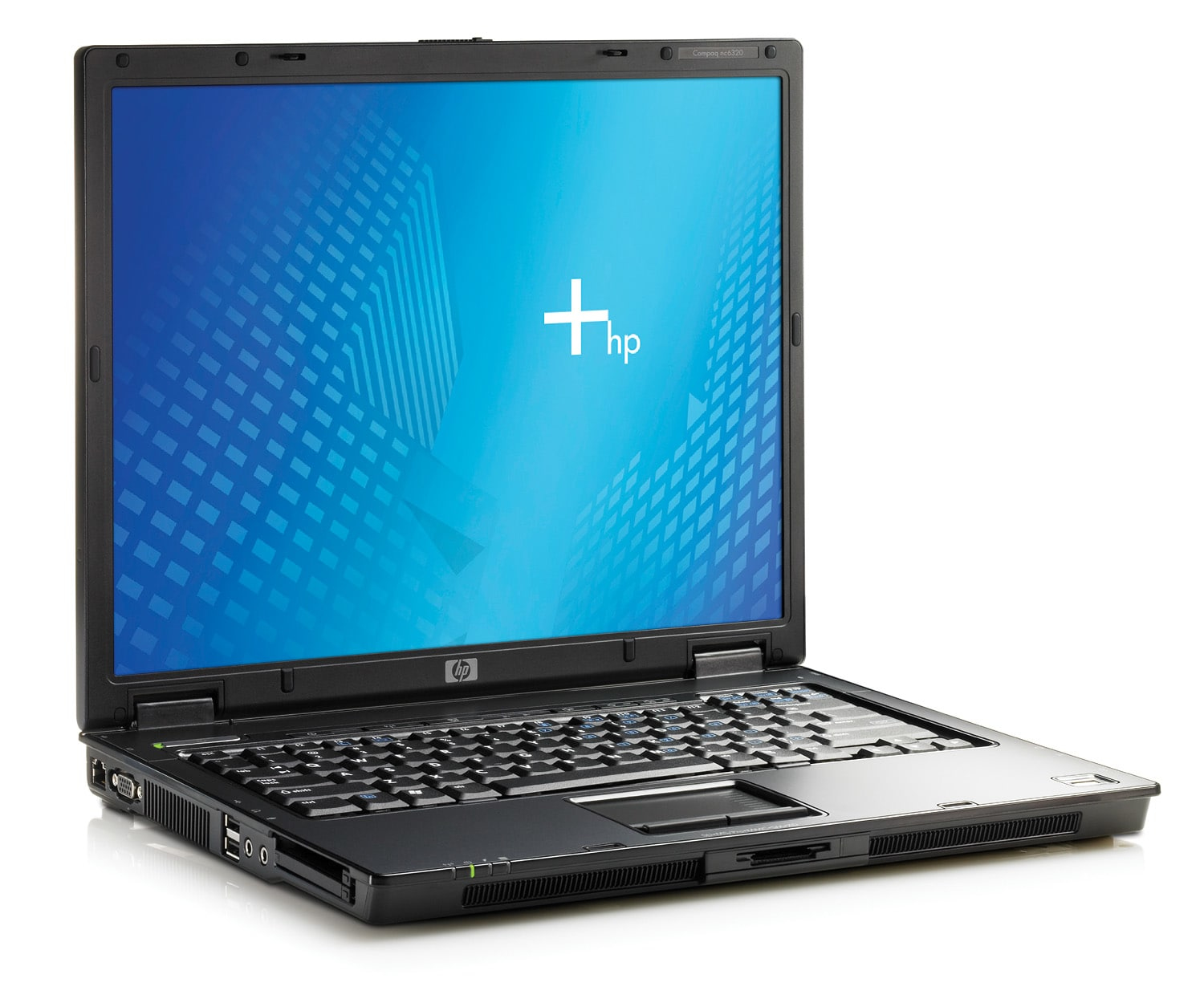

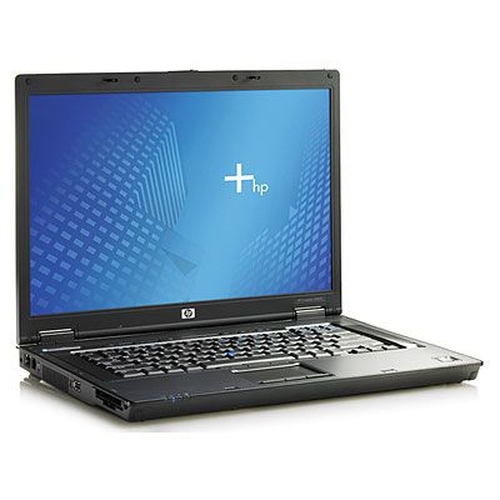

HP Compaq nc6320 Notebook PC

Model Compaq nc6320 Notebook PCPart no. RF912UCEAN 882780618022

130 specifications Checked 3 days ago

Display38.1 cm (15")
Resolution1400 x 1050 pixels
ProcessorIntel® Core™2 Duo
Memory1 GB
Storage80 GB
GraphicsIntel® GMA 950

See all specifications

Overview

Display: 38.1 cm (15")
Resolution: 1400 x 1050 pixels
Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 80 GB
Graphics: Intel® GMA 950

Brand: HP
Category: Laptop
Model: Compaq nc6320 Notebook PC
Part numbers: RF912UC, RG117UC, RA249UC, GQ045US, GV267UC, GV255UC +11 more
EAN / UPC: 882780618022, 882780617797, 882780617834, 882780617872 +56 more
Also known as: HP Compaq nc6320 Notebook PC

Specifications

130 specifications in 22 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	38.1 cm (15")
Display resolution	1400 x 1050 pixels

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T7200
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 479
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T7000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	B2
Thermal Design Power (TDP)	34 W
Tjunction	100 °C
Processor core voltage (AC)	1.0375 - 1.30 V
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	12
ECC supported by processor	No
Processor technology	Intel Centrino Duo

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 1 GB
Memory slots	2x SO-DIMM
Memory upgrade	4 GB

Storage

Specification	Value
Total storage capacity	80 GB
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 950
Maximum graphics card memory	0.224 GB

Audio

Specification	Value
Audio system	HP Premier Sound High Definition Audio 24-bit DAC, headphone jack, microphone jack, integrated microphone
Audio included	HP Premier Sound High Definition Audio 24-bit DAC, headphone jack, microphone jack, integrated microphone

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	Broadcom Gigabit (10/100/1000 NIC)
Wireless technology	Intel Wireless LAN 802.11a/b/g, MOW2, Bluetooth, Y
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	No
Docking connector	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	1
Serial ports quantity	1
I/O ports	4 USB 2.0 ports, VGA, headphone, integrated microphone, AC power, RJ-11, RJ-45, lock slot, S-video TV out, Firewire (1394a), parallel, serial
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945GM Express

Keyboard

Specification	Value
Pointing device	Touchpad + Scroll zone
Keyboard layout	QWERTY
Keyboard type	Full-sized

Software

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	Microsoft Windows Media Player 10
Compatible operating systems	FreeDOS, Windows 2000 drivers available on www.hp.com, Windows Vista capable

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27255
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Security management description	HP ProtectTools, HP Drivelock, optional Smart Card Reader, TPM Embedded Security Chip, HP Biometric Fingerprint Sensor, Kensington lock slot

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Weight	2.7 kg
Width	329 mm
Depth	267 mm
Height	30 mm

Video

Specification	Value
Video card features	Intel GMA 950

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Power management	6-cell Lithium-Ion, secondary 8-cell HP Extended Life Battery (sold separately), 12-cell HP Ultra-Capacity Battery (sold separately)
Power requirements	65W Smart AC
Internal modem	Yes
Modem type	56K
Docking solution	HP Basic Docking Station, HP Advanced Docking Station, HP 3-in-1 NAS Docking Station, HP Monitor Stands
Expansion slots	1 x express card
Multi-bay devices	Optional External Multibay II devices
Protection tools	HP ProtectTools, HP Drivelock, HP TPM Embedded Security Chip, HP Biometric Fingerprint Sensor
