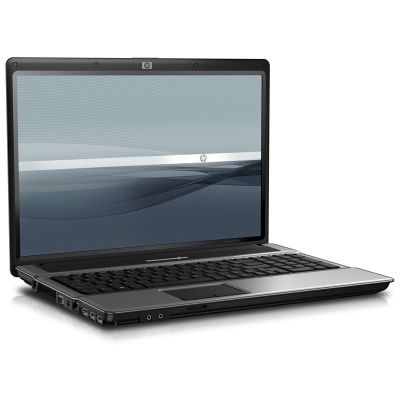

-RW DL WVST Bus Notebook PC

Model Compaq 6820s Intel Core™2 Duo Processor T8100 2048M/160G 17" WXGA+ DVD+/-RW DL WVST Bus Notebook PCPart no. KE059ET#ABH

119 specifications Checked 4 days ago

Display43.2 cm (17")
Resolution1440 x 900 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage160 GB
GraphicsAMD Mobility Radeon X1350

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1440 x 900 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 160 GB
Graphics: AMD Mobility Radeon X1350

Brand: HP
Category: Laptop
Model: Compaq 6820s Intel Core™2 Duo Processor T8100 2048M/160G 17" WXGA+ DVD+/-RW DL WVST Bus Notebook PC
Part numbers: KE059ET#ABH, KE059ET#MLK
Also known as: HP Compaq 6820s Intel Core™2 Duo Processor T8100 2048M/160G 17" WXGA+ DVD+/-RW DL WVST Bus Notebook PC Intel® Core™2 Duo 43.2 cm (17") 2 GB DDR2-SDRAM 160 GB AM

Specifications

119 specifications in 21 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1440 x 900 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T8100
Processor cores	2
Processor threads	2
Processor frequency	2.1 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 478
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T8000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	10.5
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 1 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB
Memory upgrade	4 GB

Storage

Specification	Value
Total storage capacity	160 GB
HDD speed	5400 RPM
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon X1350
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2

Camera

Specification	Value
Front camera	No

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Networking features	Ethernet/Fast Ethernet
Wireless technology	IEEE 802.11a/b/g
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® PM965 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows Vista Business

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	33916
Processor code	SLAVJ
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Weight	2.95 kg
Width	396 mm
Depth	285 mm
Height	32 mm

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Supplied AC adapter type	AC
UNSPSC-code	43211503
