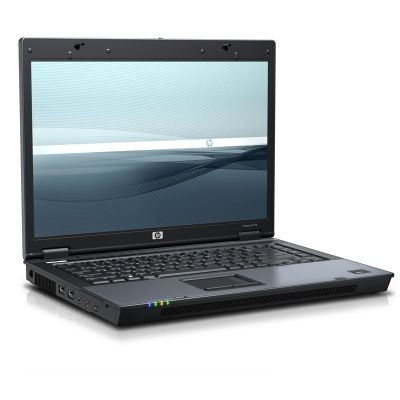

-RW DL WVST Bus Notebook PC

Model Compaq 6710b Intel Core™2 Duo Processor T8100 2048M/160G 15.4" WXGA DVD+/-RW DL WVST Bus Notebook PCPart no. KE121ET#ABH

133 specifications Checked 4 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage160 GB
GraphicsIntel® GMA X3100

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 160 GB
Graphics: Intel® GMA X3100

Brand: HP
Category: Laptop
Model: Compaq 6710b Intel Core™2 Duo Processor T8100 2048M/160G 15.4" WXGA DVD+/-RW DL WVST Bus Notebook PC
Part numbers: KE121ET#ABH, KE121ET#MLK, KE121EA#ABH
Also known as: HP Compaq 6710b Intel Core™2 Duo Processor T8100 2048M/160G 15.4" WXGA DVD+/-RW DL WVST Bus Notebook PC Intel® Core™2 Duo 39.1 cm (15.4") 2 GB DDR2-SDRAM 160 GB

Specifications

133 specifications in 21 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T8100
Processor cores	2
Processor threads	2
Processor frequency	2.1 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 478
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T8000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	10.5
ECC supported by processor	No
Processor technology	Intel Centrino

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB
Memory upgrade	4 GB

Storage

Specification	Value
Total storage capacity	160 GB
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X3100
Maximum graphics card memory	0.384 GB

Audio

Specification	Value
Audio system	High Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated mono microphone
Number of built-in speakers	2
Audio included	High Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated mono microphone

Camera

Specification	Value
Front camera	No

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Networking features	Broadcom NetLink Gigabit Ethernet PCI Controller (10/100/1000 NIC)
Wireless technology	Intel Wireless LAN 802.11 a/b/g mini-pci card, Bluetooth, Y
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
I/O ports	4 USB 2.0 ports, VGA, stereo microphone in, stereo headphone/line out, Firewire (1394a), power connector, RJ-11, RJ-45, S-video TV out
USB 1.1 ports quantity	0

Keyboard

Specification	Value
Keyboard layout	QWERTY
Keyboard type	Full-sized

Software

Specification	Value
Operating system installed	Windows Vista Business
Bundled software	Adobe Acrobat Reader, HP Wireless Assistant, HP Mobile Printing Driver, Synaptics Touchpad Driver, HP ProtectTools Security Manager, Symantec Norton Internet Security, Sonic Digital Media Plus, HP Backup and Recovery Manager, Intervideo WinDVD player, HP Help and Support Center Preloaded software: H
Compatible operating systems	FreeDOS, Windows XP Home and Windows XP Professional drivers available on (May vary by country) Certified: SuSe Linux Enterprise Desktop 10

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	33916
Processor code	SLAVJ
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Security management description	Kensington Lock slot, Symantec Norton Internet Security, HP Privacy Filter

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95, 5 - 90

Weight & dimensions

Specification	Value
Weight	2.6 kg
Width	357 mm
Depth	265 mm
Height	34 mm

Video

Specification	Value
Video card features	Intel GMA X3100

Other features

Specification	Value
Infrared data port	No
Power management	6-cell (55 WHr) Lithium-Ion battery, optional secondary HP Extended Life Battery (8 Cell) and HP Ultra-Capacity Battery (12 Cell)
Power requirements	External 90W HP Smart AC adapter, HP Fast Charge Technology 6-cell (55 WHr) Lithium-Ion battery
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	56K
Docking solution	HP Basic Docking Station, HP Advanced Docking Station, HP 3-in-1 NAS Docking Station, HP Adjustable Notebook Stand, HP External MultiBay II (all sold separately)
Expansion slots	Slots available for additional devices: 1 Type I/II PC Card slot supports both 32-bit CardBus and 16-bit cards, 1 6-in-1 media reader
Multi-bay devices	Optional External Multibay II devices
Protection tools	HP ProtectTools, TPM Embedded Security Chip 1.2, HP Fingerprint Sensor, optional Smart Card Reader
Supplied AC adapter type	AC
UNSPSC-code	43211503
