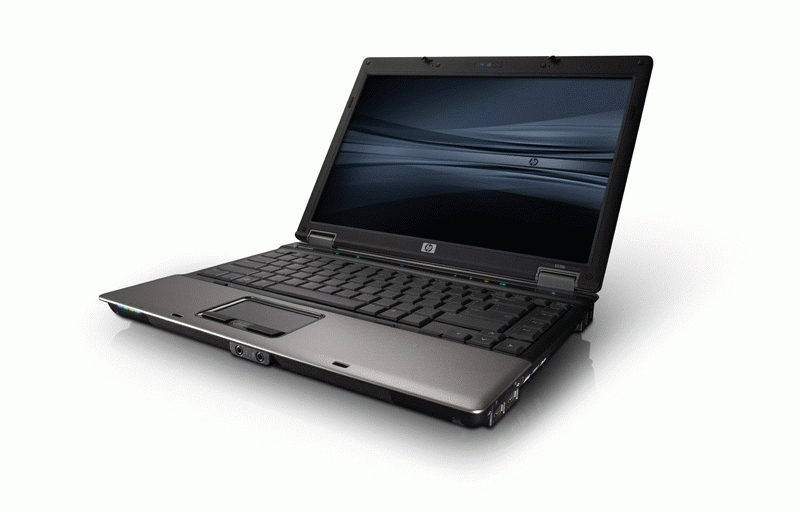

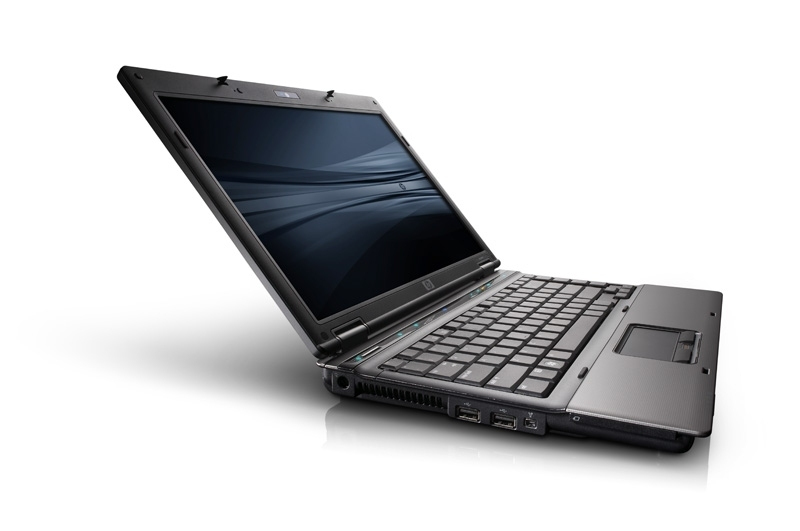

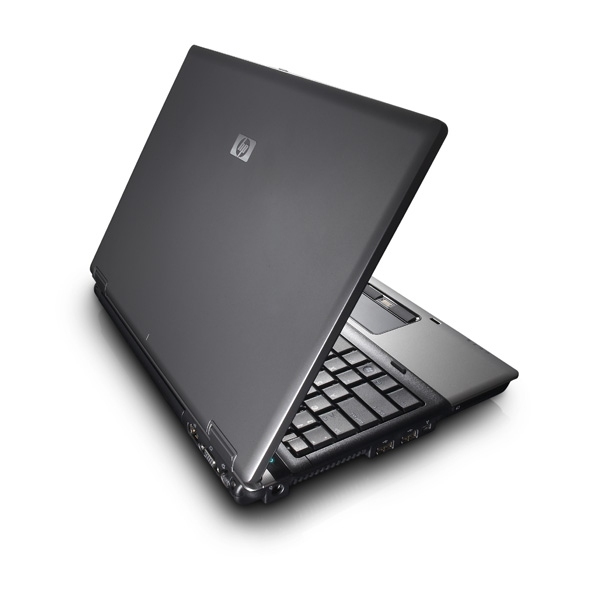

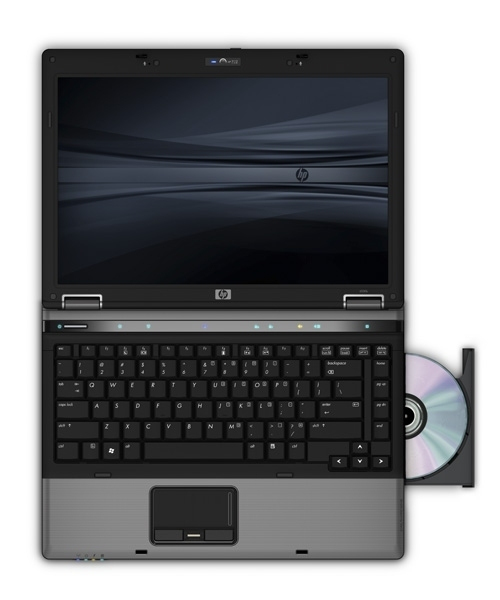

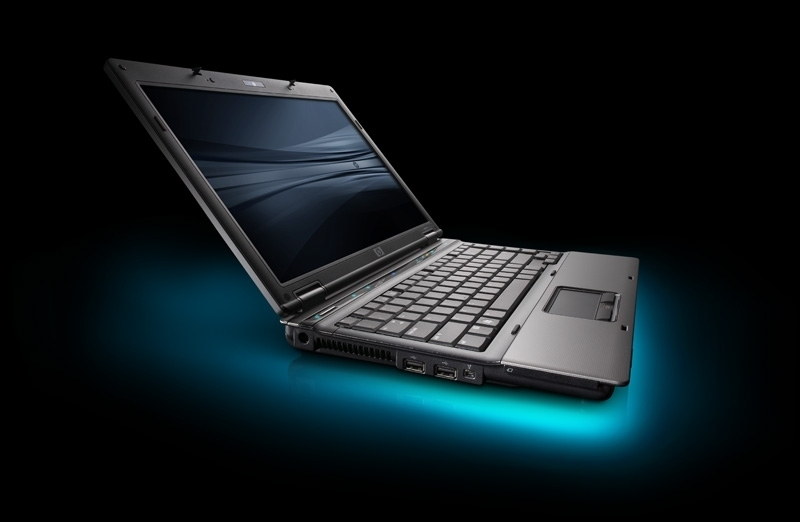

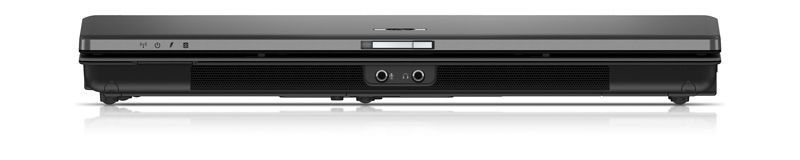

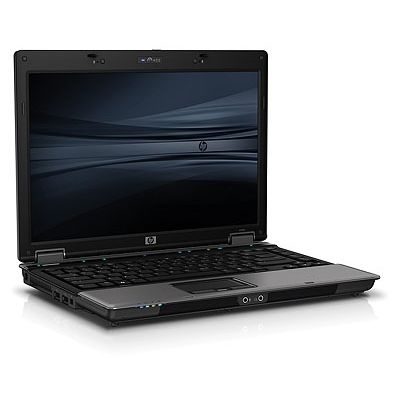

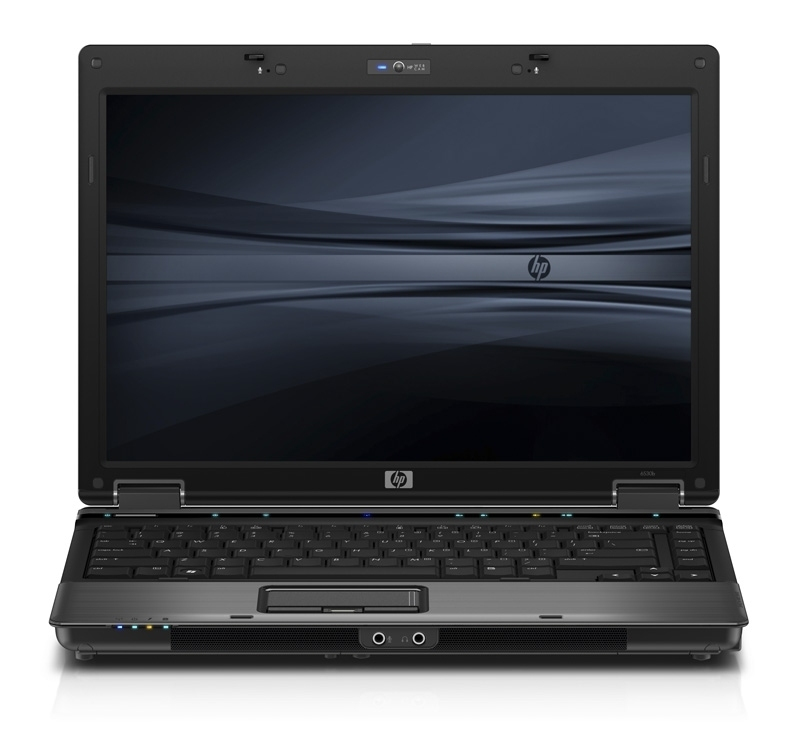

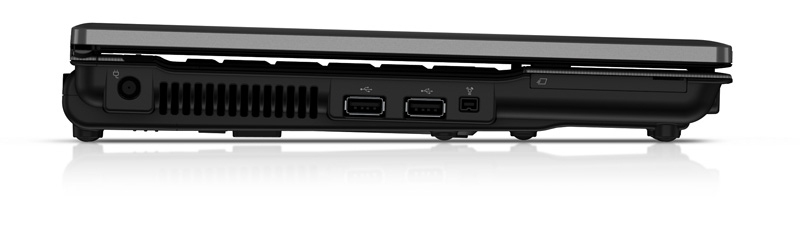

HP Compaq 6530b

Model Compaq 6530bPart no. NB015EAEAN 884420836025

106 specifications Checked 3 days ago

Display35.8 cm (14.1")
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage250 GB
GraphicsIntel® GMA 4500MHD
OSWindows Vista Business

See all specifications

Overview

Display: 35.8 cm (14.1")
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 250 GB
Graphics: Intel® GMA 4500MHD
OS: Windows Vista Business

Brand: HP
Category: Laptop
Model: Compaq 6530b
Part numbers: NB015EA, NQ279AW, KU490ET+KP080AA, FS243LA, NB013EA
EAN / UPC: 884420836025, 884420266839, 884962326022, 884962326169 +44 more
Also known as: HP Compaq 6530b Intel® Core™2 Duo P8400 35.8 cm (14.1") 2 GB DDR2-SDRAM 250 GB Intel® GMA 4500MHD Windows Vista Business

Specifications

106 specifications in 17 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	35.8 cm (14.1")
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	P8400
Processor cores	2
Processor threads	2
Processor frequency	2.26 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Processor socket	Socket 478
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo P8000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	25 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	8.5
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD
Graphics card family	Intel

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Wireless technology	802.11a/b/g
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel GE45 Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows Vista Business

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35569
Processor code	SL3BU
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	2.4 kg
Width	335 mm
Depth	243 mm
Height (front)	3.3 cm

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Supplied AC adapter type	AC
