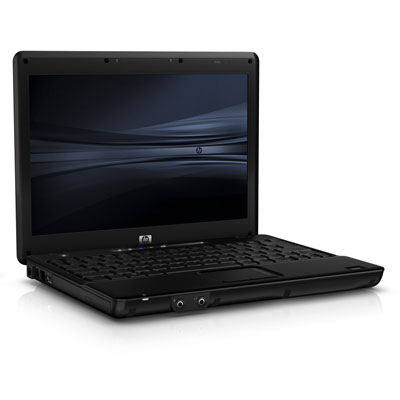

HP Compaq 2230s Notebook PC

Model Compaq 2230s Notebook PCPart no. FU325EAEAN 884420568766

111 specifications Checked 3 days ago

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage160 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 160 GB
Graphics: Intel® GMA 4500MHD

Brand: HP
Category: Laptop
Model: Compaq 2230s Notebook PC
Part numbers: FU325EA, FU312ET, FU312EA#ABH, FU312EA, FU325EA#ABH, FU312ET#ABF X2 +34 more
EAN / UPC: 884420568766, 884420581321, 884420581499, 884420581505 +56 more
Also known as: HP Compaq 2230s Notebook PC Intel® Core™2 Duo T5870 30.7 cm (12.1") 2 GB DDR2-SDRAM 160 GB Intel® GMA 4500MHD Windows Vista Business

Specifications

111 specifications in 22 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T5870
Processor cores	2
Processor frequency	2 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T5000 Series
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	10

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	800 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	160 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD
Graphics card family	Intel
Maximum graphics card memory	0.384 GB

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Audio included	High Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated dual-microphone array

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	Intel 802.11a/b/g/n mini-pci card, Bluetooth, Y
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
I/O ports	3 USB 2.0 ports, HDMI, VGA, stereo microphone in, stereo headphone/line out, power connector, RJ-11, RJ-45

Performance

Specification	Value
Motherboard chipset	Intel® GM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard type	Full-sized

Software

Specification	Value
Operating system installed	Windows Vista Business
Bundled software	HP Recovery Manager (Vista Only), Roxio Creator Business 10
Compatible operating systems	Genuine Windows XP Professional, SuSe Linux Enterprise Desktop 10

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37034
Processor code	SLAZR
Processor package size	35 x 35 mm

Battery

Specification	Value
Battery life (max)	3.5 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Security management description	McAfee Security Solution, Kensington Lock slot

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 65 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Weight	1.68 kg
Width	294 mm
Depth	226 mm
Height (front)	2.8 cm
Dimensions (WxDxH)	294 x 226 x 28 mm

Video

Specification	Value
Video card features	Intel GMA 4500MHD

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	802.11 a/b/g/n
Power requirements	External 65W HP Smart AC adapter, HP Fast Charge Technology 4-cell (37 WHr) Lithium-Ion battery
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
Docking solution	HP Adjustable Notebook Stand (sold separately)
Expansion slots	Slots available for additional devices: 1 ExpressCard/34 slot, 1 Secure Digital slot
Protection tools	HP ProtectTools, HP Fingerprint Sensor, Enhanced Drive Lock, Enhanced Pre-Boot Security, Drive Encryption for HP ProtectTools, HP Spare Key, HP Disk Sanitizer
Supplied AC adapter type	AC
