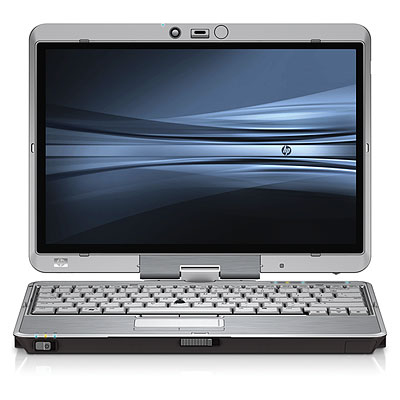

EliteBook AS323US laptop Intel® Core™2 Duo SL9400 Hybrid (2-in-1)
30.7 cm (12.1") Touchscreen 2 GB DDR2-SDRAM 120 GB HDD Windows Vista Business Silver
Model AS323US
152 specifications Checked today
- Display30.7 cm (12.1")
- Resolution1280 x 800 pixels
- ProcessorIntel® Core™2 Duo
- Memory2 GB
- Storage120 GB
- GraphicsNot available
Overview
- Display
- 30.7 cm (12.1")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel® Core™2 Duo
- Memory
- 2 GB
- Storage
- 120 GB
- Graphics
- Not available
- Brand
- HP
- Category
- Laptop
- Model
- AS323US
- Part number
- AS323US
- Also known as
- HP EliteBook AS323US laptop Intel® Core™2 Duo SL9400 Hybrid (2-in-1) 30.7 cm (12.1") Touchscreen 2 GB DDR2-SDRAM 120 GB HDD Windows Vista Business Silver
Specifications
152 specifications in 22 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Silver |
| Form factor | Convertible (Swivel) |
| Housing material | Metal |
| Country of origin | China |
Display
| Specification | Value |
|---|---|
| Display diagonal | 30.7 cm (12.1") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| HD type | Not supported |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Display surface | Matt |
| Display brightness | 200 cd/m² |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | SL9400 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.86 GHz |
| Processor cache | 6 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Processor socket | BGA 956 |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo SL9000 Series |
| Processor codename | Penryn |
| Bus type | FSB |
| FSB Parity | No |
| Motherboard southbridge | Intel ICH9M |
| Thermal Design Power (TDP) | 17 W |
| Tjunction | 105 °C |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| CPU multiplier (bus/core ratio) | 7.1 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 120 GB |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 120 GB |
| HDD interface | SATA II |
| HDD speed | 5400 RPM |
| HDD size | 1.8" |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| Graphics card family | Intel |
| On-board graphics card family | Intel® GMA |
| On-board graphics card model | Intel® GMA 4500MHD |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
| Number of built-in speakers | 2 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit LAN |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | No |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Thunderbolt ports quantity | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | Yes |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | Yes |
| Modem (RJ-11) ports | 1 |
| TV-out | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® GS45 Express |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Drivers included | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 36689 |
| Processor package size | 22 x 22 mm |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery capacity | 44 Wh |
| Battery life (max) | 6.25 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -15.24 - 3048 m |
| Non-operating altitude | -15.24 - 12192 m |
| Operating shock | 125 G |
| Non-operating shock | 200 G |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | UL, CSA, FCC, ICES, GS, CCC, VCCI, KCC, BSMI, CE, CIT, GOST |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.7 kg |
| Width | 290 mm |
| Depth | 212 mm |
| Height | 28.2 mm |
| Width (imperial) | 28.6 cm (11.2") |
| Depth (imperial) | 21.2 cm (8.35") |
| Height (imperial) | 2.82 cm (1.11") |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Internal modem | Yes |
| Intel segment tagging | Enterprise |
| Supplied AC adapter type | AC |
