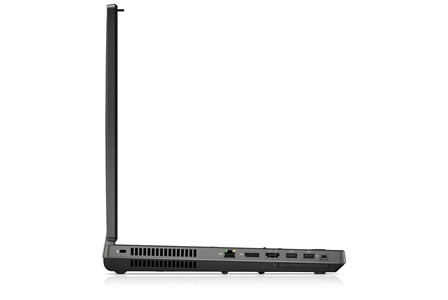

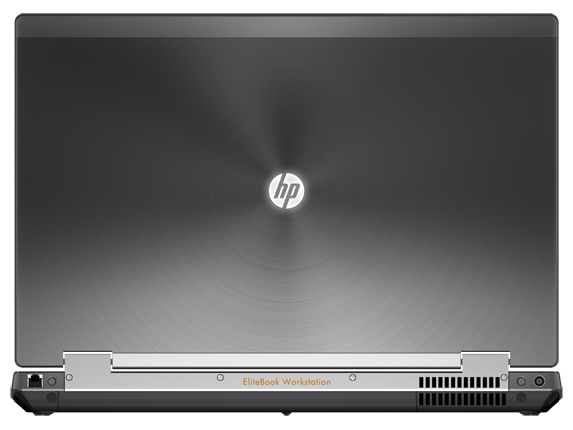

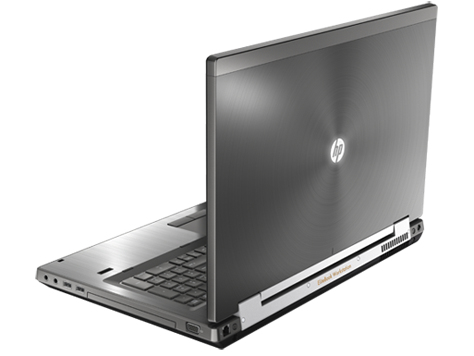

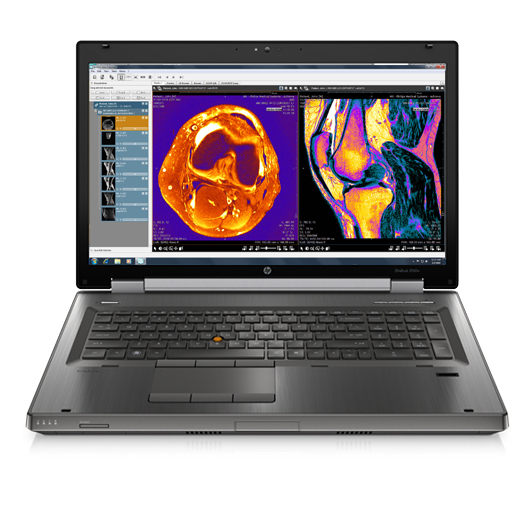

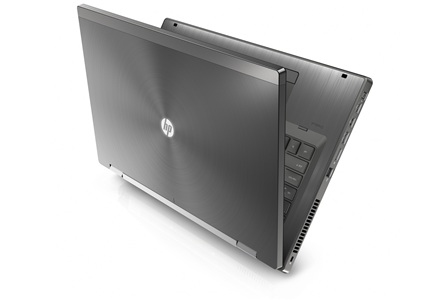

HP 8760W Mobile Workstation
HP

8760W Mobile Workstation

Model 8760W Mobile WorkstationPart no. XY697AVEAN 886111264971

160 specifications Checked today
  • Display43.9 cm (17.3")
  • Resolution1600 x 900 pixels
  • ProcessorIntel® Core™ i7
  • Memory8 GB
  • Storage500 GB
  • GraphicsNVIDIA® Quadro® 4000M
See all specifications

Overview

Display
43.9 cm (17.3")
Resolution
1600 x 900 pixels
Processor
Intel® Core™ i7
Memory
8 GB
Storage
500 GB
Graphics
NVIDIA® Quadro® 4000M
Brand
HP
Category
Laptop
Model
8760W Mobile Workstation
Part number
XY697AV
EAN / UPC
886111264971
Also known as
HP EliteBook 8760W Mobile Workstation Intel® Core™ i7 i7-2720QM Laptop 43.9 cm (17.3") HD+ 8 GB DDR3-SDRAM 500 GB HDD NVIDIA® Quadro® 4000M Wi-Fi 4 (802.11n) Wi

Specifications

160 specifications in 23 groups

Design

Product typeLaptop
Product colourBlack
Form factorClamshell
Housing materialMetal
Country of originChina

Display

Display diagonal43.9 cm (17.3")
Display resolution1600 x 900 pixels
TouchscreenNo
HD typeHD+
LED backlightYes
Native aspect ratio16:9
Display surfaceMatt

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation2nd gen Intel® Core™ i7
Processor modeli7-2720QM
Processor cores4
Processor threads8
Processor boost frequency3.3 GHz
Processor frequency2.2 GHz
Processor cache6 MB
Processor cache typeSmart Cache
Processor socketSocket 1224
Processor lithography32 nm
Processor operating modes64-bit
Processor seriesIntel Core i7-2700 Mobile Series
Processor codenameSandy Bridge
Bus typeDMI
FSB ParityNo
SteppingD2
Thermal Design Power (TDP)45 W
Tjunction100 C
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8
PCI Express slots version2.0
CPU multiplier (bus/core ratio)22
ECC supported by processorNo

Memory

Internal memory8 GB
Internal memory typeDDR3-SDRAM
Memory clock speed1333 MHz
Memory slots2x SO-DIMM
Maximum internal memory16 GB

Storage

Total storage capacity500 GB
Storage mediaHDD
Total HDDs capacity500 GB
Number of HDDs installed1
HDD capacity500 GB
HDD speed7200 RPM
Optical drive typeDVD Super Multi DL
Card reader integratedYes
Compatible memory cardsMMC, SD

Graphics

On-board graphics cardYes
Discrete graphics cardYes
Discrete graphics card modelNVIDIA® Quadro® 4000M
Discrete graphics card memory2 GB
Discrete graphics memory typeGDDR5
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 3000
On-board graphics card base frequency650 MHz
On-board graphics card dynamic frequency (max)1300 MHz
On-board graphics card ID0x116

Audio

Audio systemHD
Number of built-in speakers2
Built-in microphoneYes

Optical drive

LightScribeNo

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version2.1+EDR
Cabling technology10/100/1000Base-T(X)
Integrated 4G WiMAXYes

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
eSATA/USB 2.0 ports quantity1
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity0
eSATA ports quantity0
Ethernet LAN (RJ-45) ports1
DVI portNo
VGA (D-Sub) ports quantity1
Firewire (IEEE 1394) ports1
Thunderbolt ports quantity0
Headphone outputs1
S/PDIF out portNo
Microphone inYes
Docking connectorYes
ExpressCard slotYes
SmartCard slotYes
Headphone connectivity3.5 mm
Microphone connectivity3.5 mm

Performance

Motherboard chipsetIntel® QM67 Express

Keyboard

Pointing deviceTouchpad
Numeric keypadYes
Spill-resistant keyboardYes
Full-size keyboardYes

Software

Operating system installedWindows 7 Professional
Operating system architecture64-bit

Processor special features

Intel® Wireless Display (Intel® WiDi)Yes
CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography32 nm
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyNo
Intel Demand Based SwitchingNo
Intel Dual Display Capable TechnologyYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® Quick Sync Video TechnologyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID50067
Processor codeSR00W
Processor package size37.5 x 37.5 (rPGA988B); 31.0 x 24.0 (BGA1224)
Supported instruction setsAVX
Thermal Monitoring TechnologiesYes
Conflict-Free processorNo

Battery

Battery technologyLithium-Ion (Li-Ion)
Number of battery cells8
Battery capacity83 Wh

Power

AC adapter power200 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
DC-in jackYes

Security

Cable lock slotYes
Trusted Platform Module (TPM)Yes

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%

Certificates

Compliance certificatesRoHS

Sustainability

Sustainability certificatesEPEAT Gold, ENERGY STAR

Weight & dimensions

Weight3.47 kg
Width416.5 mm
Depth272.7 mm
Height37.4 mm

Packaging content

AC adapter includedYes
Cables includedAC
ManualYes

Other features

Intel segment taggingEnterprise
