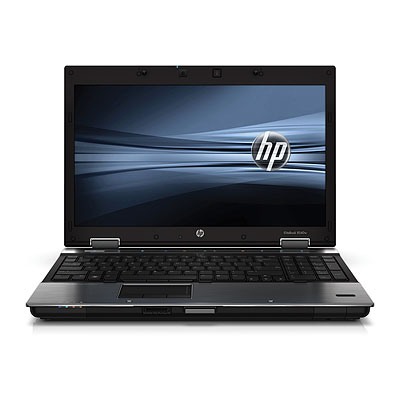

HP EliteBook 8540w Intel® Core™ i7 i7-620M Laptop 39.6 cm (15.6") Full HD 8 GB DDR3-SDRAM 500 GB HDD NVIDIA® Quadro® FX 1800M Windows 7 Professional Black QWERT

Model 8540wPart no. WD927EAEAN 884962957912

175 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage500 GB
GraphicsNVIDIA® Quadro® FX 1800M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 500 GB
Graphics: NVIDIA® Quadro® FX 1800M

Brand: HP
Category: Laptop
Model: 8540w
Part numbers: WD927EA, WD927ET, WH138AW, WD736EA, WD736EA#ABH, WD740EA +6 more
EAN / UPC: 884962957912, 884962957264, 884962957271, 884962957288 +56 more
Also known as: HP EliteBook 8540w Intel® Core™ i7 i7-620M Laptop 39.6 cm (15.6") Full HD 8 GB DDR3-SDRAM 500 GB HDD NVIDIA® Quadro® FX 1800M Windows 7 Professional Black QWERT

Specifications

175 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Display number of colours	16.78 million colours
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-620M
Processor cores	2
Processor threads	4
Processor boost frequency	3.33 GHz
Processor frequency	2.66 GHz
System bus rate	2.5 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1288
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-600 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	20
Maximum number of SMP processors	1
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA II
HDD speed	7200 RPM
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® FX 1800M
Graphics card family	Intel, NVIDIA
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Speakers manufacturer	Altec Lansing
Built-in microphone	Yes

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	2.1+EDR
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Headphone connectivity	3.5 mm
Modem (RJ-11) ports	1
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® QM57 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Full-size keyboard	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Bundled software	HP Recovery Manager HP Power Assistant HP Webcam Software

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43560
Processor code	SLBPE
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	8
Battery capacity	68 Wh

Power

Specification	Value
AC adapter power	120 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Power auto-sensing	Yes
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Trusted Platform Module (TPM)	Yes
Password protection type	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Weight	2.95 kg
Width	373.5 mm
Depth	251.5 mm
Height	32.4 mm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Manual	Yes
Quick start guide	Yes
Warranty card	Yes

Other features

Specification	Value
Infrared data port	No
3D	No
Internal modem	Yes
TV tuner integrated	No
Modem speed	56 Kbit/s
Intel segment tagging	Enterprise
Supplied AC adapter type	AC
