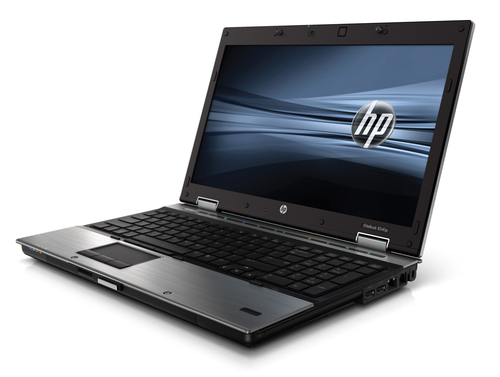

HP EliteBook 8540p Intel® Core™ i5 i5-540M Laptop

HP EliteBook 8540p Intel® Core™ i5 i5-540M Laptop

39.6 cm (15.6") 4 GB 320 GB NVIDIA® Quadro® NVS 5100M Windows 7 Professional QWERTY

Model 8540pPart no. WH130AWEAN 884962871782

151 specifications Checked 3 days ago
  • Display39.6 cm (15.6")
  • Resolution1366 x 768 pixels
  • ProcessorIntel® Core™ i5
  • Memory4 GB
  • Storage320 GB
  • GraphicsNVIDIA® Quadro® NVS 5100M
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
1366 x 768 pixels
Processor
Intel® Core™ i5
Memory
4 GB
Storage
320 GB
Graphics
NVIDIA® Quadro® NVS 5100M
Brand
HP
Category
Laptop
Model
8540p
Part numbers
WH130AW, WD919EA#ABH, WD921EA, WD919EA, WH130AW#ABH
EAN / UPC
884962871782, 884962948170, 884962948187, 884962948194 +56 more
Also known as
HP EliteBook 8540p Intel® Core™ i5 i5-540M Laptop 39.6 cm (15.6") 4 GB 320 GB NVIDIA® Quadro® NVS 5100M Windows 7 Professional QWERTY

Specifications

151 specifications in 22 groups

Design

Product typeLaptop
Country of originChina

Display

Display diagonal39.6 cm (15.6")
Display resolution1366 x 768 pixels
LED backlightYes
Native aspect ratio16:9

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generationIntel® Core™ i5
Processor modeli5-540M
Processor cores2
Processor threads4
Processor boost frequency3.07 GHz
Processor frequency2.53 GHz
System bus rate2.5 GT/s
Processor cache3 MB
Processor cache typeSmart Cache
Processor socketBGA 956
Processor lithography32 nm
Processor operating modes64-bit
Processor seriesIntel Core i5-500 Mobile Series
Processor codenameArrandale
Bus typeDMI
FSB ParityNo
SteppingC2
Thermal Design Power (TDP)35 W
Tjunction105 °C
Maximum number of PCI Express lanes16
PCI Express configurations1x16
PCI Express slots version2.0
Number of Processing Die Transistors382 M
Processing Die size81 mm²
CPU multiplier (bus/core ratio)19
ECC supported by processorNo
Processor technologyIntel Centrino 2 w/ vPro

Memory

Internal memory4 GB
Memory clock speed1333 MHz
Maximum internal memory4 GB
Memory upgrade8 GB

Storage

Total storage capacity320 GB
HDD interfaceSATA
HDD speed7200 RPM
Optical drive typeDVD Super Multi DL
Card reader integratedYes
Maximum HDD capacity256 GB

Graphics

On-board graphics cardYes
Discrete graphics cardYes
Discrete graphics card modelNVIDIA® Quadro® NVS 5100M
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics
On-board graphics card base frequency500 MHz
On-board graphics card dynamic frequency (max)766 MHz

Audio

Audio systemHigh Definition Audio
Number of built-in speakers2
Audio includedHigh Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated dual-microphone array

Optical drive

LightScribeYes

Network

Networking featuresIntel Gigabit Network Connection (10/100/1000 NIC)
Wireless technologyIntel 802.11a/b/g/n; HP Integrated Module with Bluetooth 2.1 Wireless Technology, Y
BluetoothYes
Bluetooth version2.1+EDR

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
eSATA ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity0
DVI portNo
VGA (D-Sub) ports quantity1
Firewire (IEEE 1394) ports1
Headphone outputs1
S/PDIF out portNo
Microphone inYes
Docking connectorYes
ExpressCard slotYes
CardBus PCMCIA slots quantity0
CardBus PCMCIA slot typeNo
SmartCard slotYes
Modem (RJ-11) ports1
TV-in portNo
TV-outNo
PS/2 ports quantity0
Parallel ports quantity0
Serial ports quantity0
I/O ports2 USB 2.0; 2 USB 3.0; 1 DisplayPort; 1 external VGA monitor; 1 1394a; 1 stereo microphone in; 1 stereo headphone/line-out; 1 AC power; 1 RJ-11; 1 RJ-45; 1 eSATA; 1 docking connector; 1 secondary battery connector

Performance

Motherboard chipsetIntel® QM57 Express

Keyboard

Keyboard layoutQWERTY
Keyboard typeSpill-resistant keyboard with drain

Software

Operating system installedWindows 7 Professional
Bundled softwareHP Recovery Manager (available with Windows 7 or Vista only), HP Support Assistant (available with Windows 7 or Vista only), HP QuickLaunch Buttons Software, HP QuickLook 3, HP QuickWeb, HP Power Assistant, HP Connection Manager, HP Wireless Assistant, HP SkyRoom, Microsoft Office Professional 2007
Compatible operating systemsGenuine Windows Vista Enterprise 32; Genuine Windows Vista Enterprise 64; SUSE Linux Enterprise 11

Processor special features

Intel® Wireless Display (Intel® WiDi)No
CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography45 nm
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Demand Based SwitchingNo
Intel Dual Display Capable TechnologyYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel Rapid Storage TechnologyNo
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® My WiFi Technology (Intel® MWT)No
Intel® Quick Sync Video TechnologyNo
Intel® Turbo Boost Technology1.0
Physical Address Extension (PAE)36 bit
Processor ARK ID43544
Processor package sizerPGA 37.5x 37.5, BGA 34x28
Supported instruction setsSSE4.1/4.2
Thermal Monitoring TechnologiesYes
Conflict-Free processorNo

Battery

Number of battery cells8

Power

DC-in jackYes

Security

Cable lock slotYes
Cable lock slot typeKensington
Security management descriptionMcAfee Security Solution, HP ProtectTools Security Manager, Enhanced Pre-Boot Security, HP SpareKey, One-Step Logon, Setup Password, DriveLock Password, TPM 1.2 Embedded Security Chip, TPM Enhanced DriveLock, HP Disk Sanitizer, Kensington Lock slot, Support for Computrace LoJack Pro for HP ProtectTo

Operational conditions

Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Weight2.95 kg
Width373.5 mm
Depth251.5 mm
Height (front)3.24 cm
Dimensions (WxDxH)374 x 252 x 32 mm

Hard drive

Storage drive type320 GB 7200 rpm SATA II
Storage drive controllerSED SATA II (7200 rpm) SATA II (7200 rpm) Solid State Drive

Video

Video card featuresNVIDIA NVS 5100

Other features

Infrared data portNo
Battery type8-cell (68 WHr) Lithium-Ion Battery
Minimum storage drive space160 GB
Power requirementsExternal 90W HP Smart AC Adapter (travel use), HP Fast Charge 8-cell (68 WHr) Lithium-Ion Battery
Internal modemYes
Modem type56K V.92
Intel segment taggingEnterprise
Docking solutionHP Docking Station, HP Advanced Docking Station, HP USB 2.0 Docking Station, HP Essential USB 2.0 Port Replicator, HP Monitor Stand, HP Basic Adjustable Stand, HP Adjustable Notebook Stand
Expansion slots1 Express Card/54; 1 Smart Card Reader; 1 6-in-1 Media Card Reader
Supplied AC adapter typeAC
