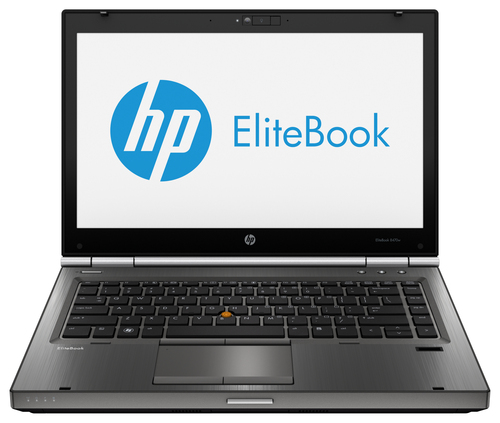

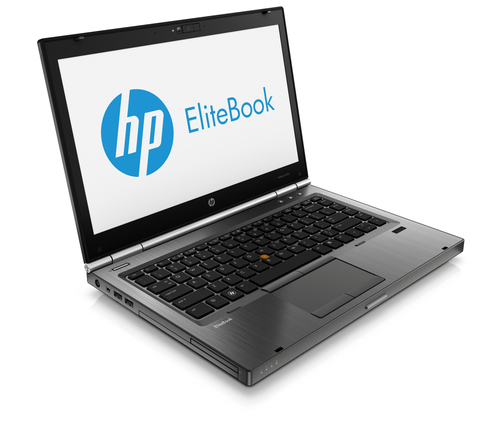

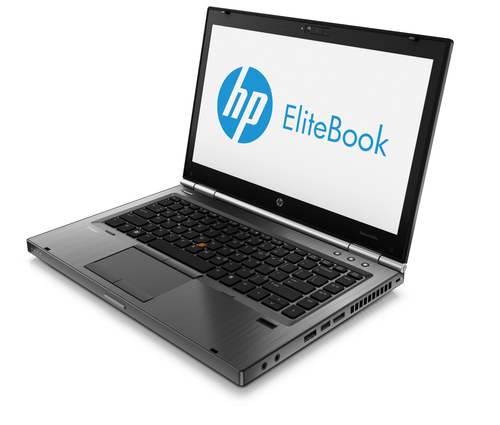

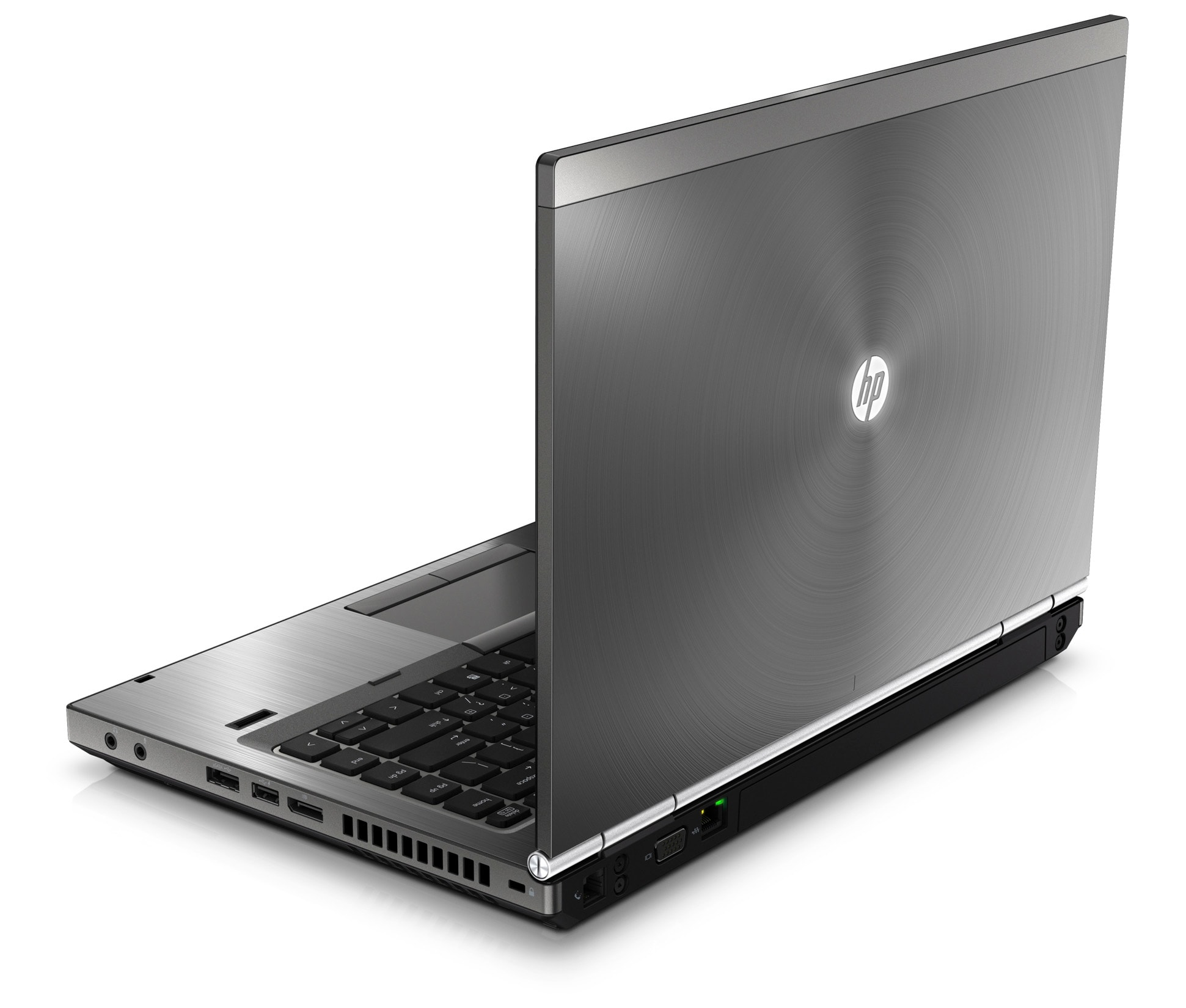

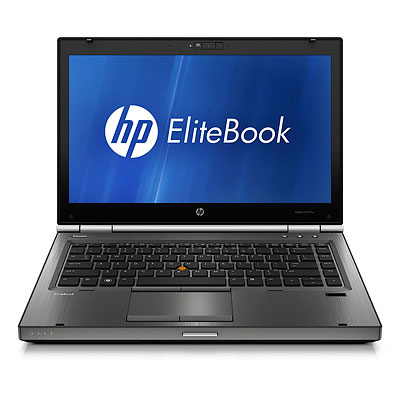

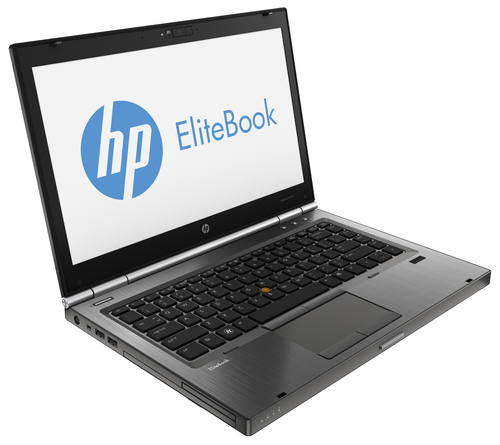

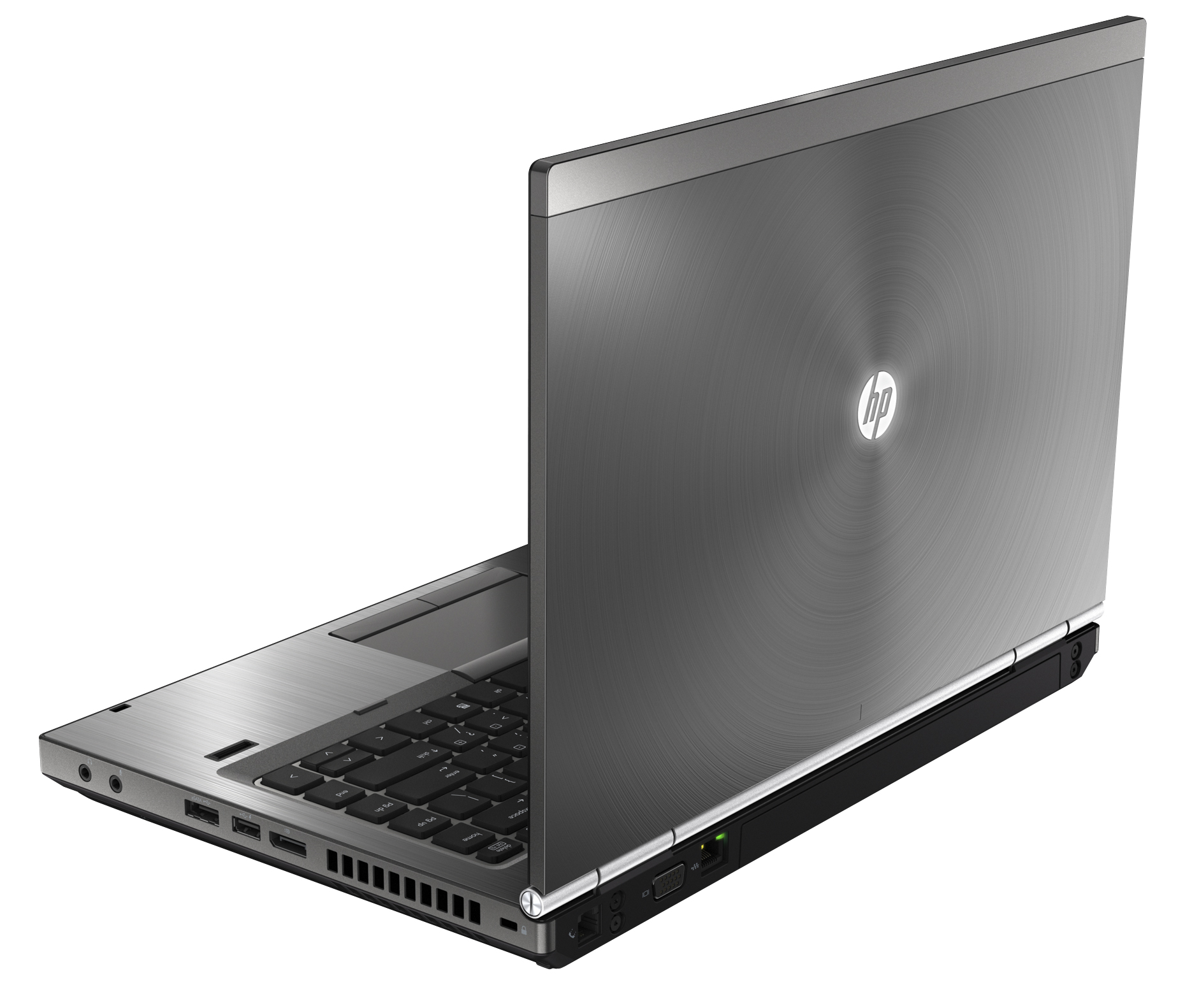

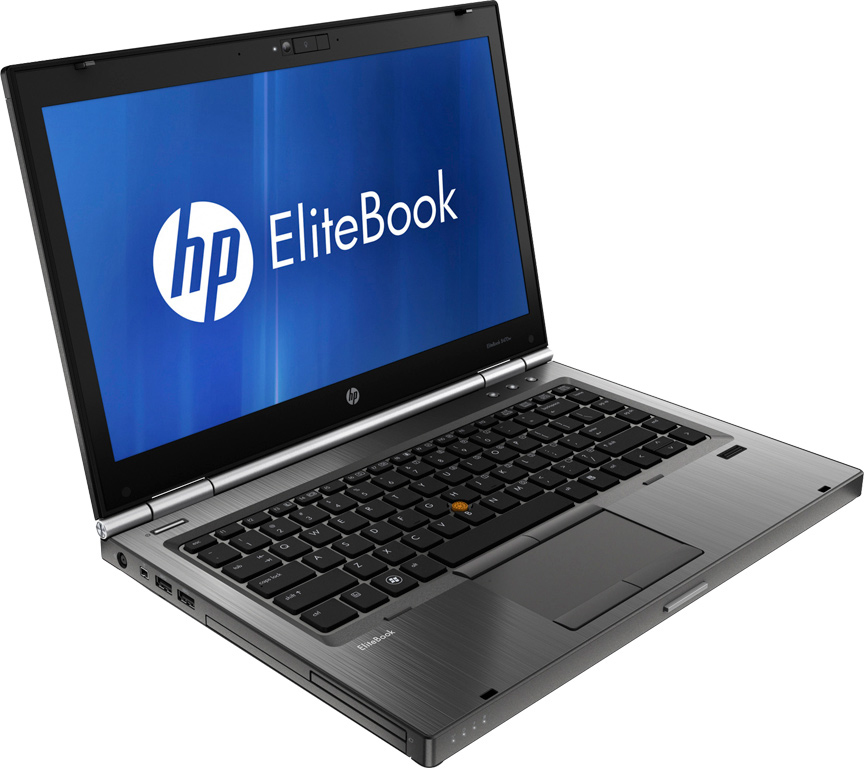

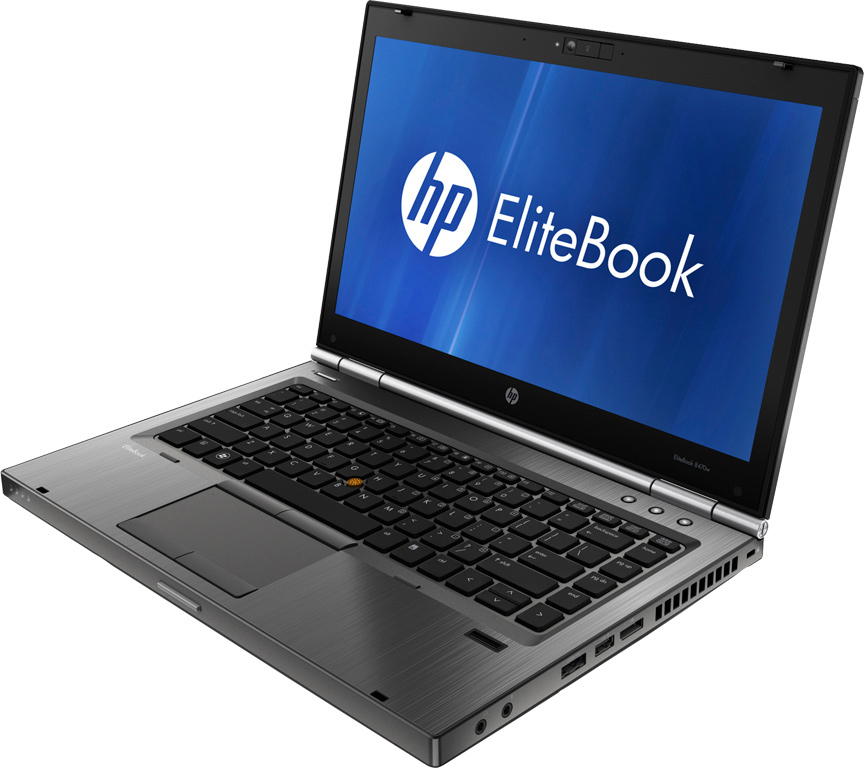

HP EliteBook 8470w Intel® Core™ i7 i7-3610QM 35.6 cm (14") HD+ 4 GB DDR3-SDRAM 750 GB HDD AMD FirePro M2000 Windows 7 Professional QWERTZ German

Model 8470wPart no. C7A68UTREAN 887111311856

176 specifications Checked 2 days ago

Display35.6 cm (14")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i7
Memory4 GB
Storage750 GB
GraphicsAMD FirePro M2000

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 750 GB
Graphics: AMD FirePro M2000

Brand: HP
Category: Laptop
Model: 8470w
Part numbers: C7A68UTR, LY540EA, E3V09LA, LY540EA#ABH, LY541EA#ABH, A3B76AV +31 more
EAN / UPC: 887111311856, 887111235213, 887111235220, 887111235237 +56 more
Also known as: HP EliteBook 8470w Intel® Core™ i7 i7-3610QM 35.6 cm (14") HD+ 4 GB DDR3-SDRAM 750 GB HDD AMD FirePro M2000 Windows 7 Professional QWERTZ German

Specifications

176 specifications in 23 groups

Design

Specification	Value
Form factor	Clamshell
Country of origin	China

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1600 x 900 pixels
HD type	HD+
Display number of colours	16.78 million colours
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3610QM
Processor cores	4
Processor threads	8
Processor boost frequency	3.3 GHz
Processor frequency	2.3 GHz
System bus rate	5 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	Socket G2
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3600 Mobile series
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Thermal Design Power (TDP)	45 W
Tjunction	105 C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	3.0
CPU multiplier (bus/core ratio)	23
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Memory slots (available)	1
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	750 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	750 GB
HDD interface	SATA II
HDD speed	7200 RPM
Number of SSDs installed	0
Flash memory	24 GB
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	AMD FirePro M2000
Graphics card family	AMD, Intel
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Audio system	HD
Built-in speaker(s)	Yes
Number of built-in speakers	2
Built-in microphone	Yes

Optical drive

Specification	Value
LightScribe	No
Optical drive interface	SATA

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
Cabling technology	10/100/1000Base-T(X)
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
SmartCard slot	Yes
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm

Performance

Specification	Value
Motherboard chipset	Intel® QM77 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Spill-resistant keyboard	Yes
Full-size keyboard	Yes
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	64899
Processor package size	37.5 x 37.5 (rPGA988B)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	55 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Power auto-sensing	Yes
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	10 - 90%

Certificates

Specification	Value
Compliance certificates	RoHS
Wi-Fi certified	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.25 kg
Width	338 mm
Depth	231.3 mm
Height	31.8 mm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Manual	Yes
Quick start guide	Yes
Warranty card	Yes

Other features

Specification	Value
Infrared data port	No
3D	No
TV tuner integrated	No
Intel segment tagging	Enterprise
Supplied AC adapter type	AC
