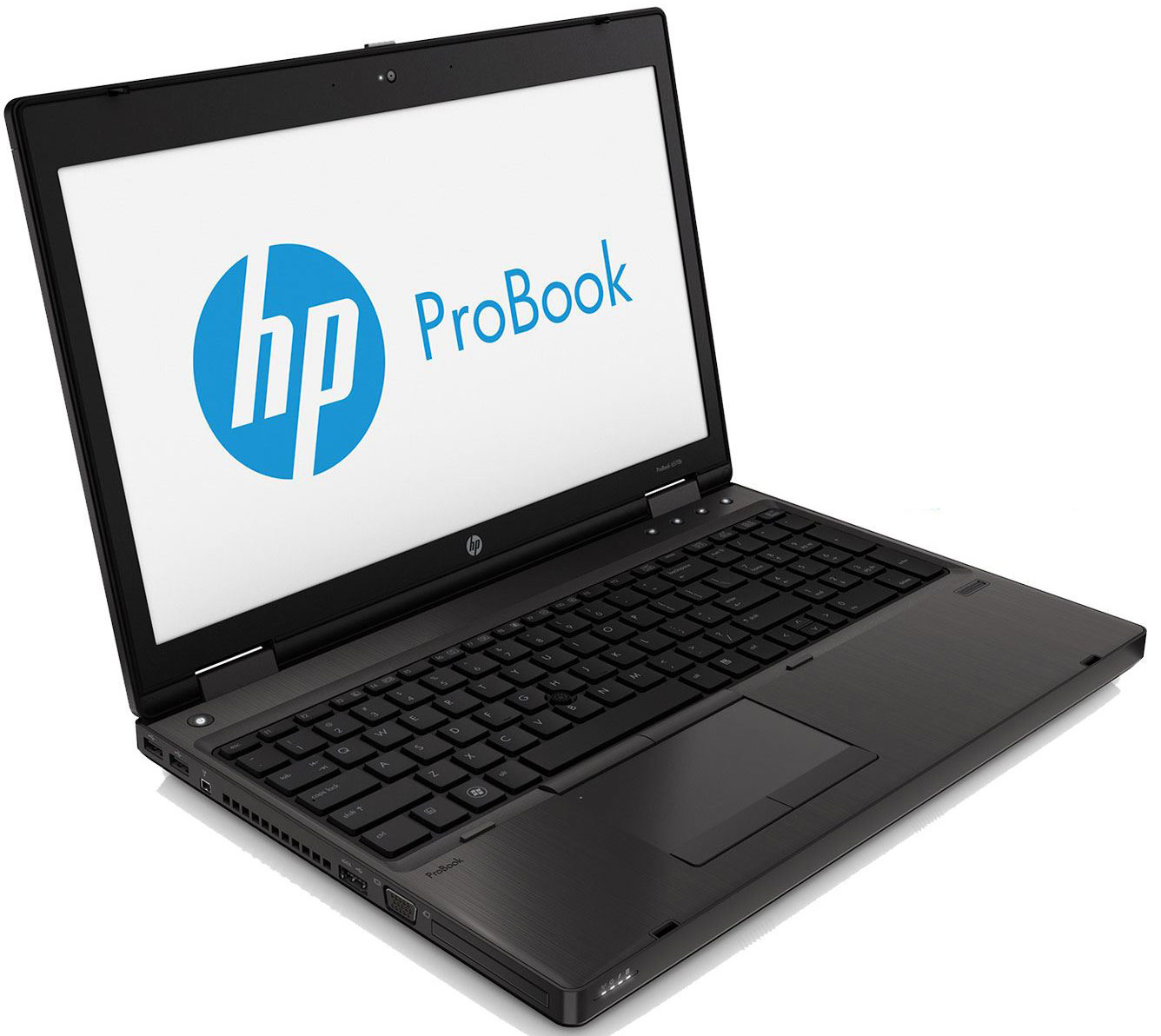

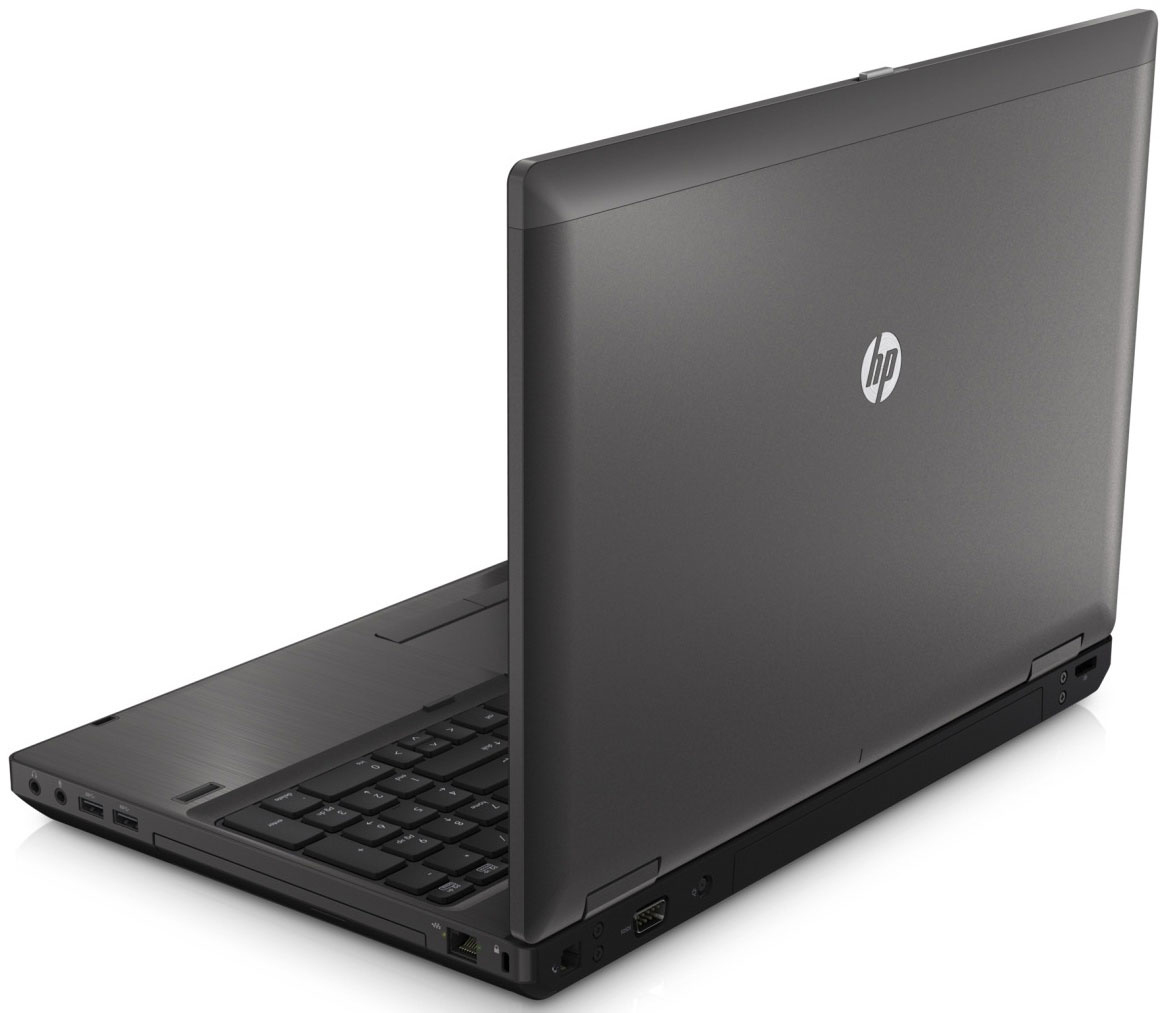

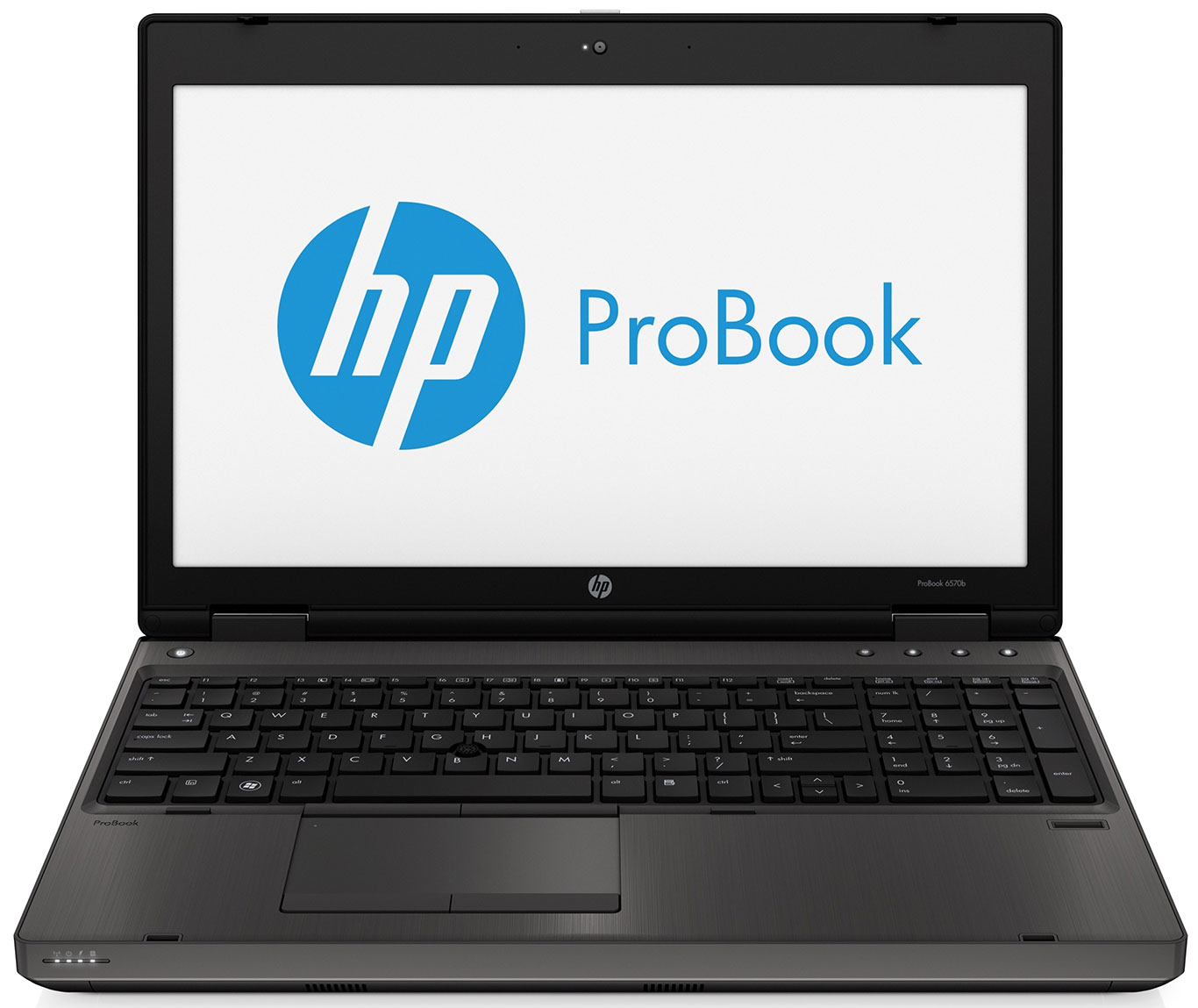

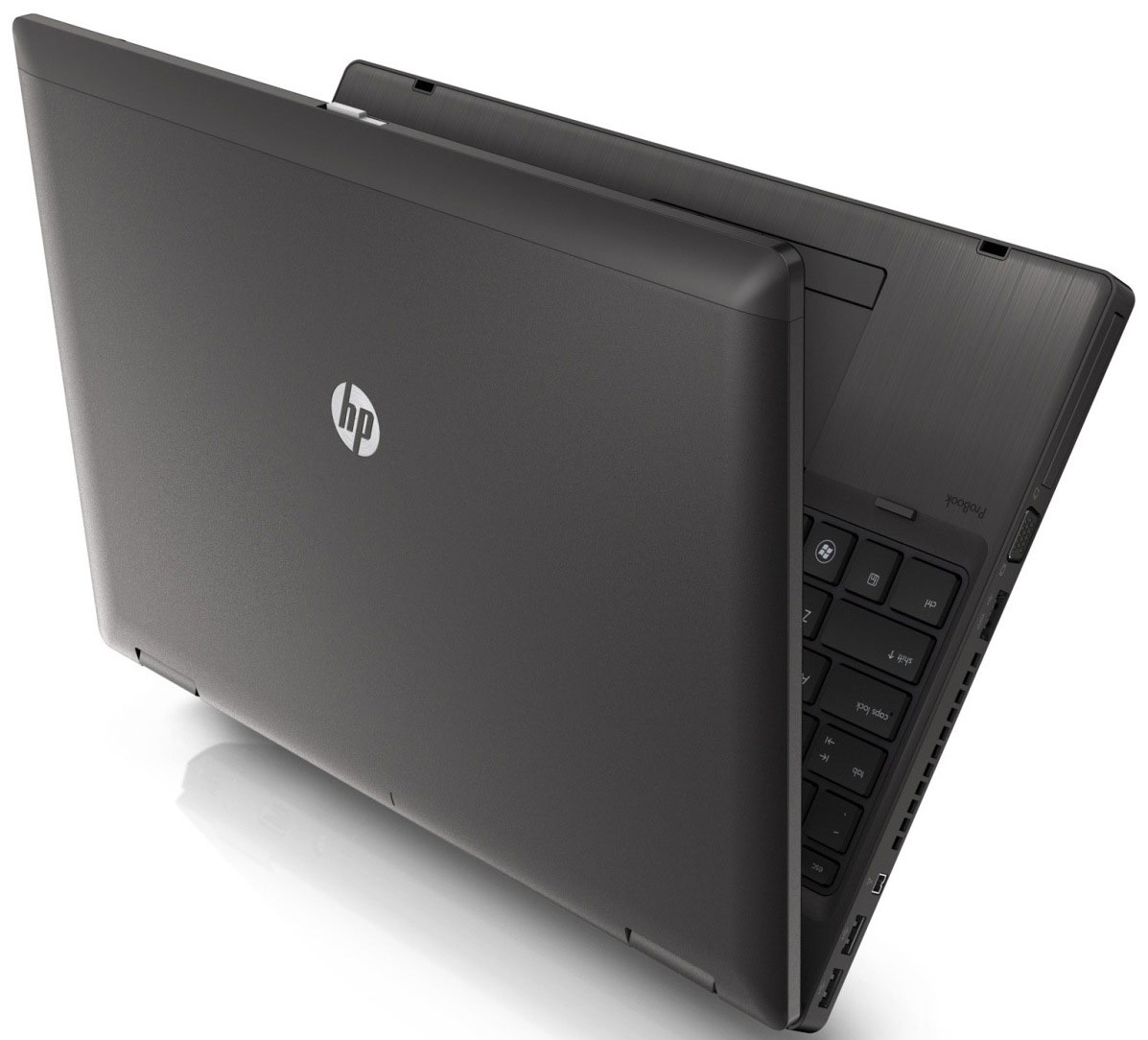

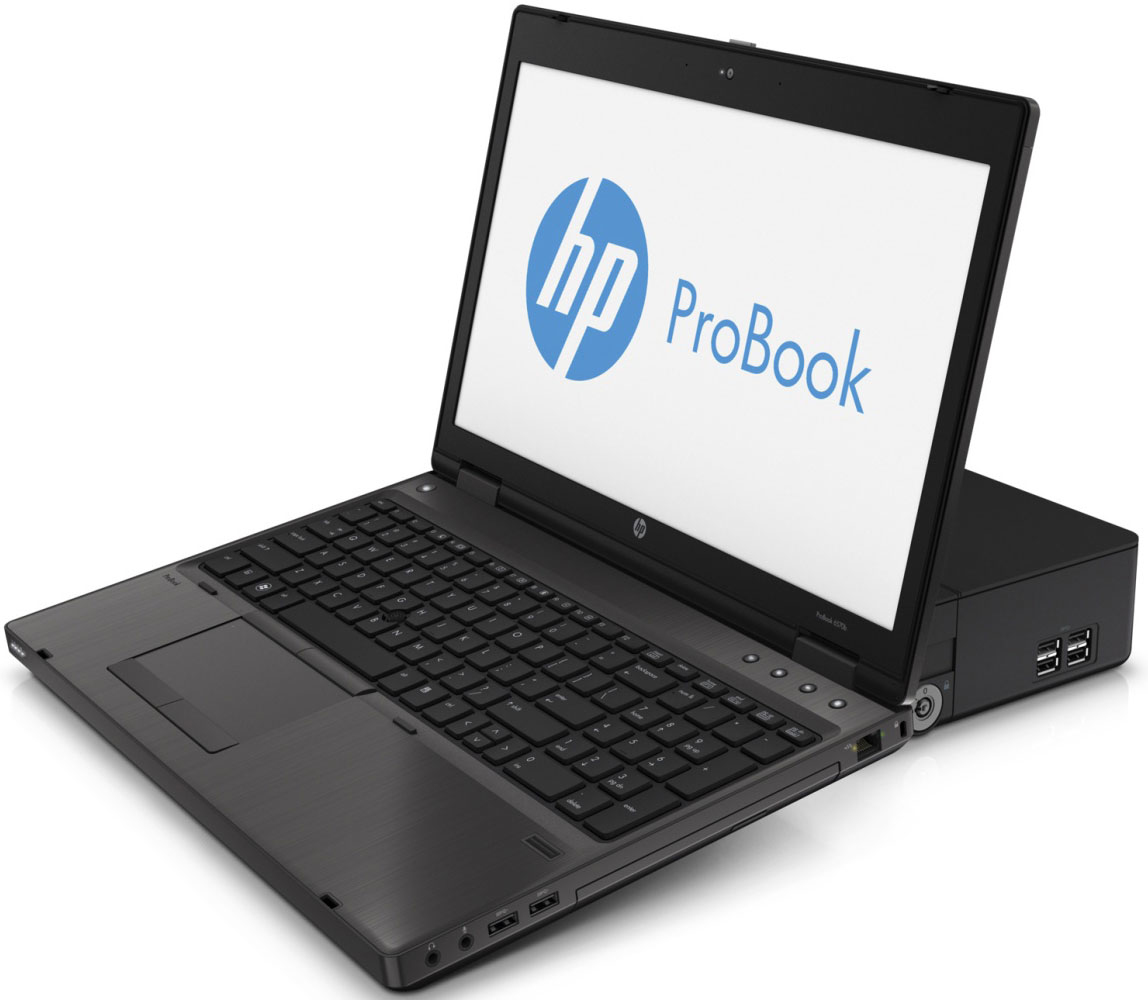

HP 6570b Base

Model 6570b BasePart no. A5E66AVEAN 886112348519

210 specifications Checked 2 days ago

Display39.6 cm (15.6")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage750 GB
TypeLaptop

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 750 GB
Type: Laptop

Brand: HP
Category: Laptop
Model: 6570b Base
Part number: A5E66AV
EAN / UPC: 886112348519, 8861123485196
Also known as: HP ProBook 6570b Base Intel® Core™ i5 i5-3360M Laptop 39.6 cm (15.6") HD+ 4 GB DDR3-SDRAM 750 GB HDD Windows 7 Professional Black

Specifications

210 specifications in 24 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1600 x 900 pixels
Touchscreen	No
HD type	HD+
Display number of colours	16.78 million colours
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3360M
Processor cores	2
Processor threads	4
Processor boost frequency	3.5 GHz
Processor frequency	2.8 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3300 Mobile series
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Stepping	L1
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
CPU multiplier (bus/core ratio)	28
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB
Maximum internal memory (64-bit)	8 GB

Storage

Specification	Value
Total storage capacity	750 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	750 GB
HDD interface	SATA II
HDD speed	7200 RPM
HDD size	2.5"
Number of SSDs installed	0
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card memory	1.65 GB
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Audio system	SRS Premium Sound
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Front camera resolution	1280 x 720 pixels
Auto focus	Yes

Optical drive

Specification	Value
LightScribe	No
CD read speed	24x
CD write speed	24x
CD rewrite speed	10x
DVD-R read speed	8x
DVD-R write speed	8x
DVD-R Double Layer read speed	8x
DVD-R Double Layer write speed	6x
DVD-RW read speed	8x
DVD-RW write speed	6x
DVD+R read speed	8x
DVD+R write speed	8x
DVD+R Double Layer read speed	8x
DVD+R Double Layer write speed	6x
DVD+RW read speed	8x
DVD+RW write speed	8x
DVD-RAM read speed	5x
DVD-RAM write speed	5x
Disc types supported	CD, DVD

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
WWAN	Not installed
Data network	Not supported
4G LTE	No
4G WiMAX	No
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt technology	No
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	1
Mini DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Thunderbolt ports quantity	0
Mini HDMI ports quantity	0
Micro HDMI ports quantity	0
Mini VGA ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm
Serial ports quantity	1

Performance

Specification	Value
Motherboard chipset	Intel HM76 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	64895
Processor code	SR0MW
Processor package size	37.5 x 37.5 (rPGA988B); 31.0 x 24.0 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
Power auto-sensing	Yes
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3050 m
Non-operating altitude	0 - 4570 m

Certificates

Specification	Value
Compliance certificates	RoHS
Wi-Fi certified	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.51 kg
Width	374 mm
Depth	251 mm
Height	34 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Quick start guide	Yes
Warranty card	Yes

Other features

Specification	Value
3D	No
TV tuner integrated	No
64-bit computing	Yes
Intel segment tagging	Enterprise
