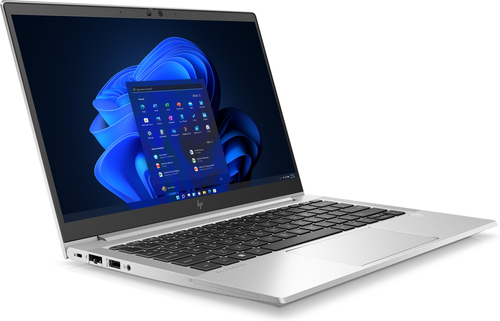

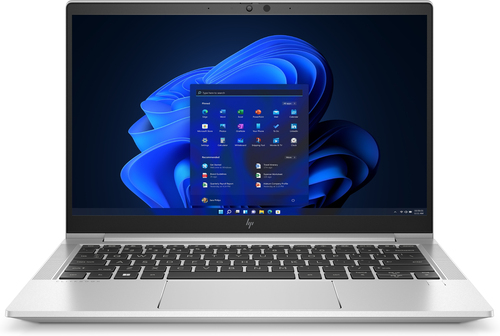

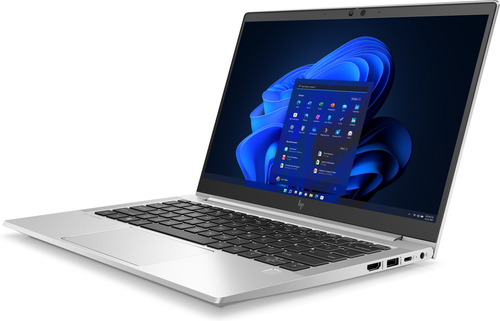

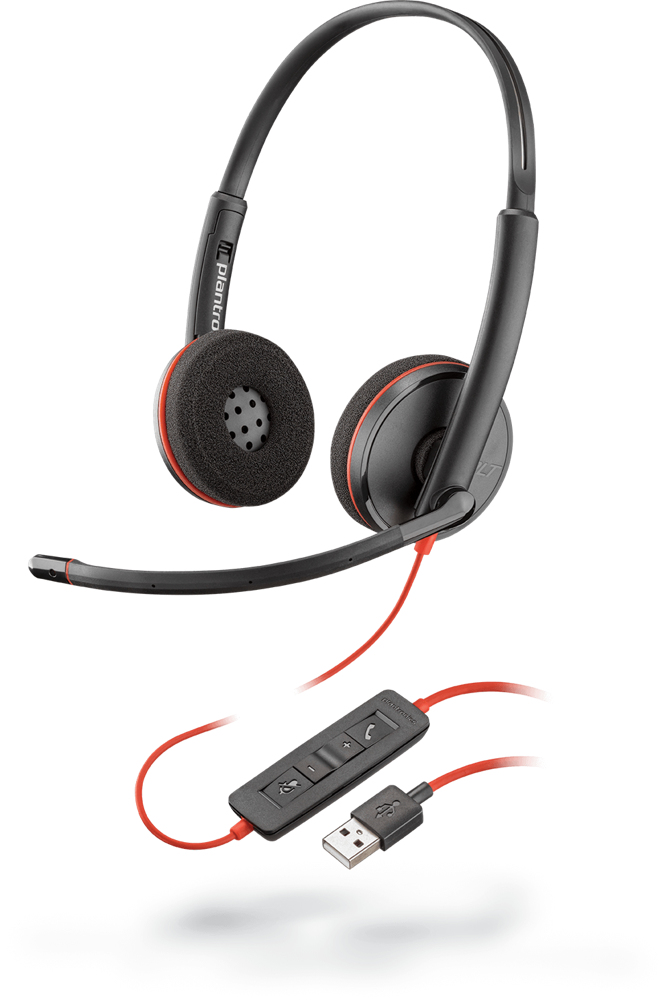

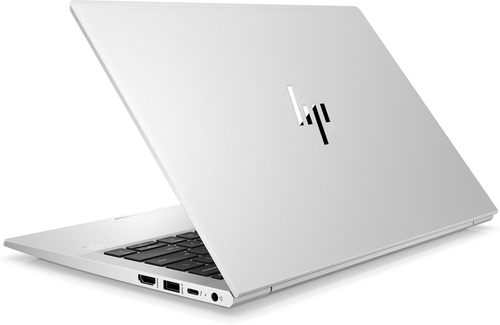

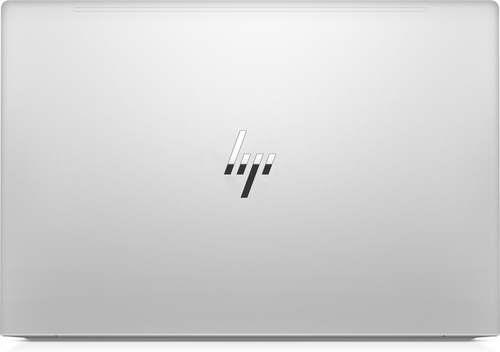

HP 630 G9 + Blackwire C3220

630 G9 + Blackwire C3220

Model 630 G9 + Blackwire C3220Part no. 6F1Z6EA + 209745-201

115 specifications Checked today

Display33.8 cm (13.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: HP
Category: Laptop
Model: 630 G9 + Blackwire C3220
Part number: 6F1Z6EA + 209745-201
Also known as: HP EliteBook 630 G9 + Blackwire C3220 Intel® Core™ i5 i5-1235U Laptop 33.8 cm (13.3") Full HD 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Sil

Specifications

115 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Form factor	Clamshell
Market positioning	Premium
Introduction year	2022
Country of origin	China

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
Anti-glare screen	Yes
Display bezel technology	Micro-Edge
Display brightness	400 cd/m²
Colour gamut	72%
Display diagonal (metric)	33.8 cm
RGB colour space	NTSC

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model	i5-1235U
Processor cores	10
Processor threads	12
Processor boost frequency	4.4 GHz
Processor frequency	1.3 GHz
Processor cache	12 MB
Processor cache type	L3
Configurable TDP-down	12 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
ECC	No
Non-ECC	Yes
Number of free internal memory expansion slots	1

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.3

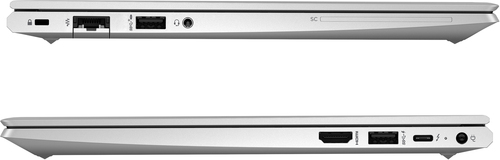

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Clickpad
Keyboard backlit	Yes
Numeric keypad	No
Spill-resistant keyboard	Yes
Input device model	HP Premium tangentbord
Keyboard special features	Spilltåligt

Software

Specification	Value
Operating system installed	Windows 11 Pro

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Brand-specific features

Specification	Value
HP Connection Optimizer	Yes
HP Support Assistant	Yes
HP Smart AC Adapter	Yes
HP segment	Business

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	42 Wh
Battery weight	180 g

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, Power on, User

Certificates

Specification	Value
Compliance certificates	GS mark, CCC

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Weight	1.28 kg
Width	306.9 mm
Depth	208.4 mm
Height	15.9 mm

Packaging data

Specification	Value
Package width	69 mm
Package depth	449 mm
Package height	305 mm
